Triomatic T30 feed storage for automatic feeding system

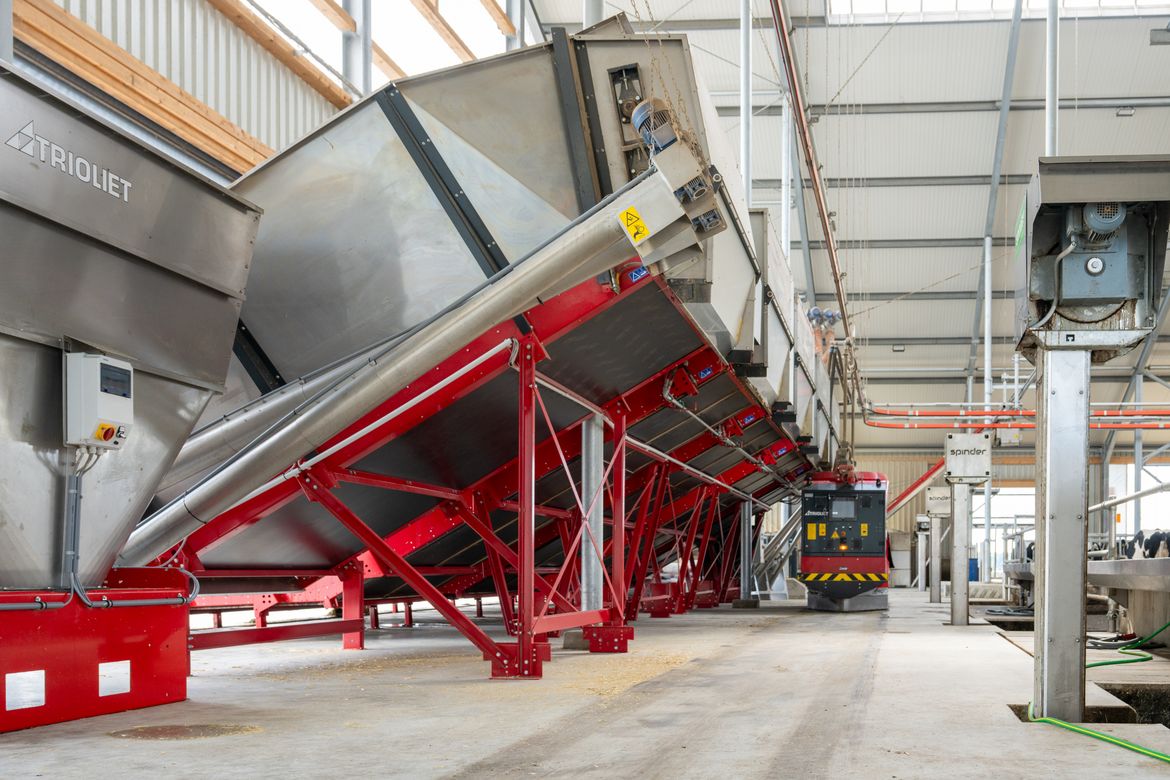

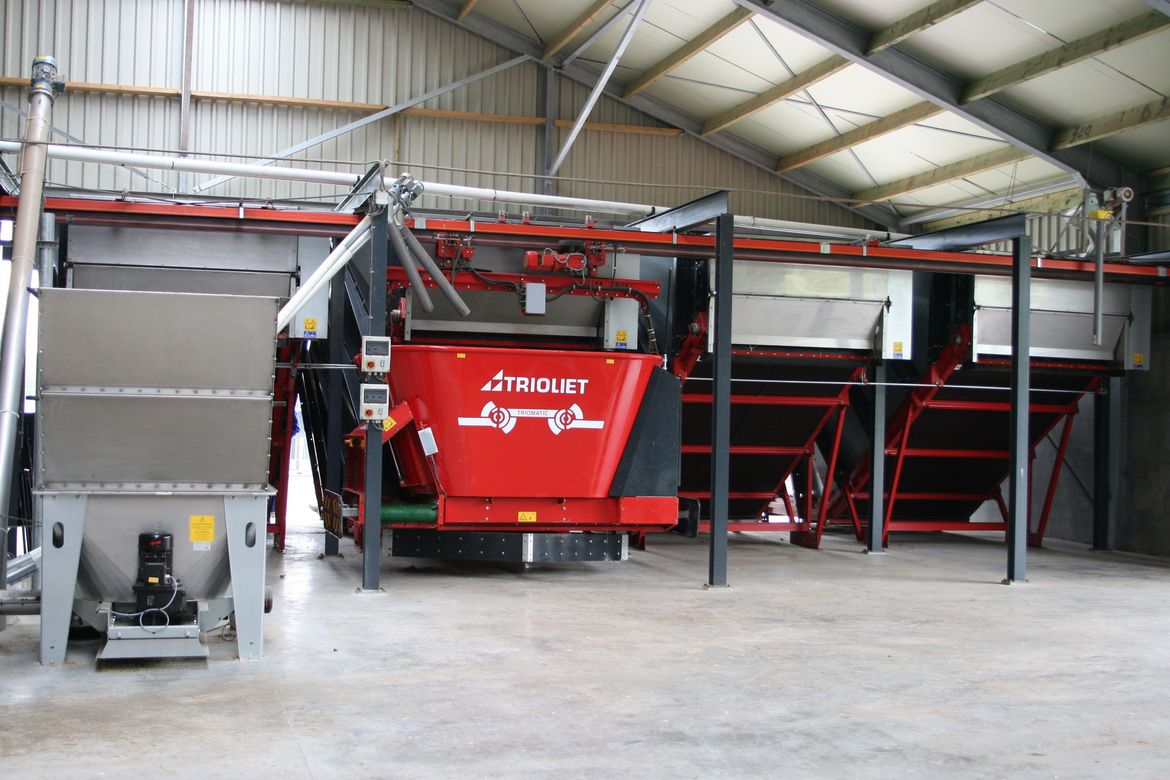

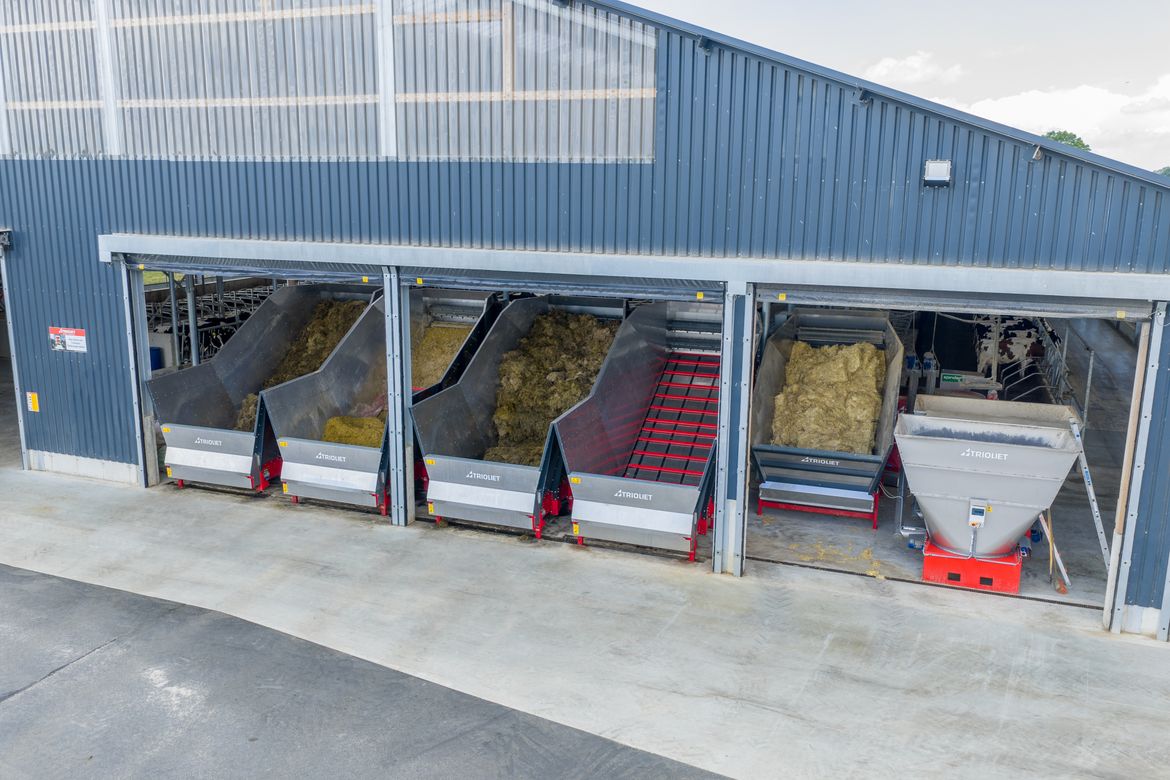

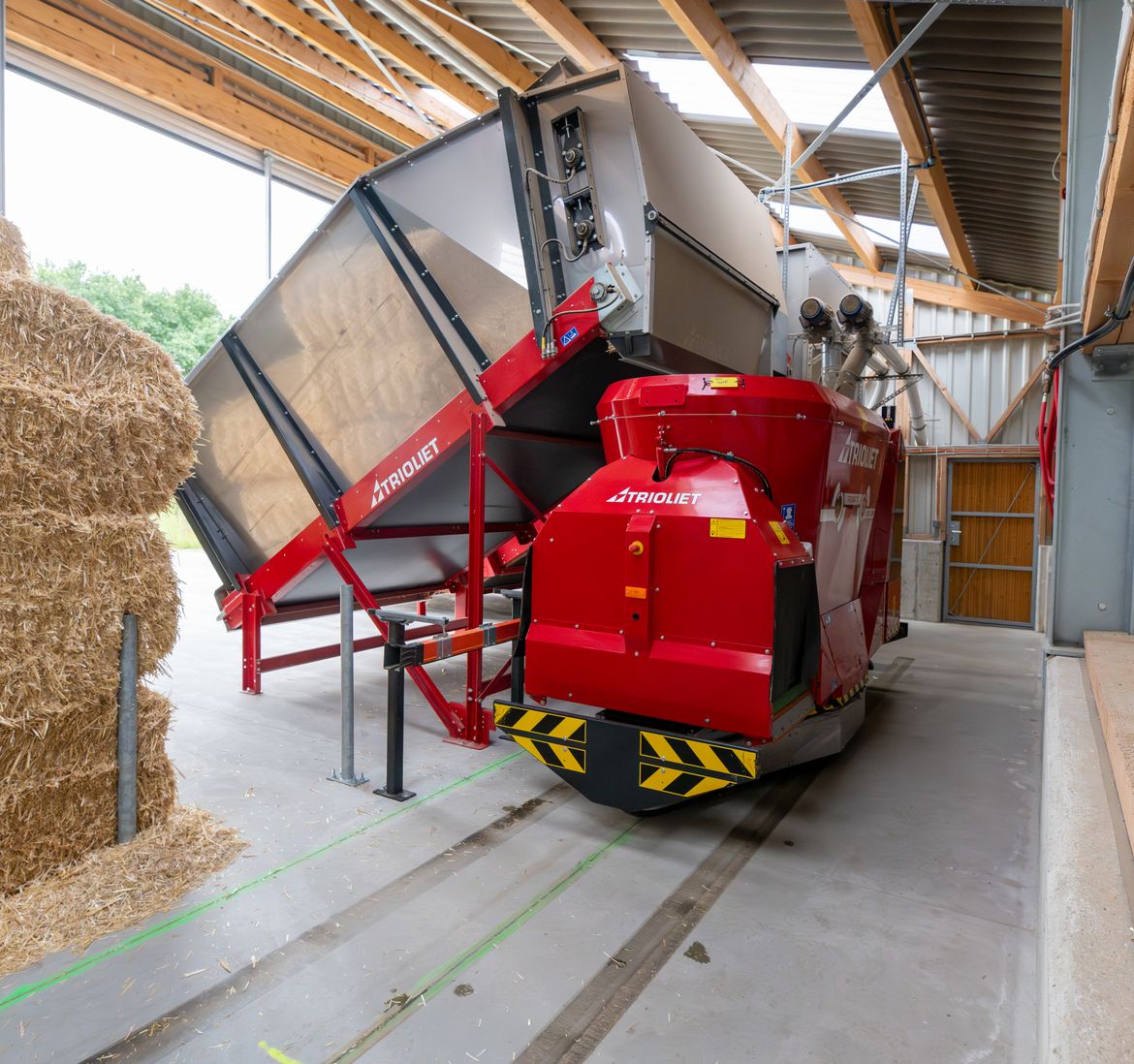

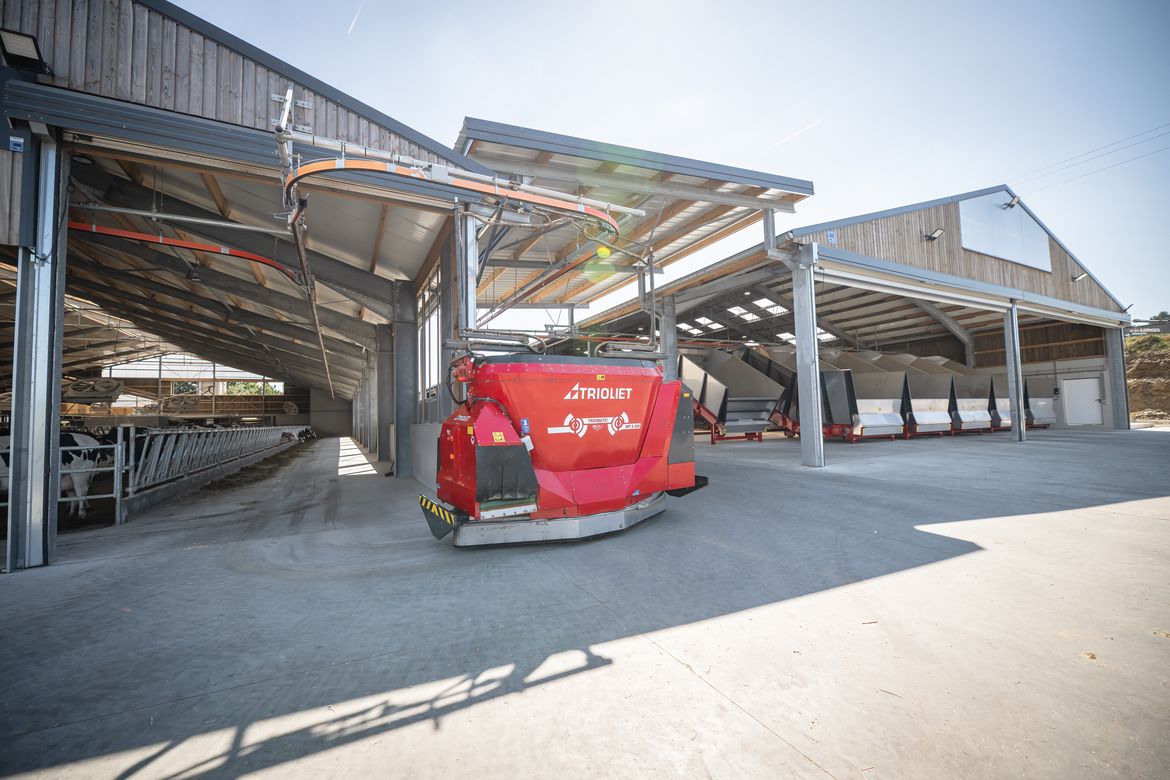

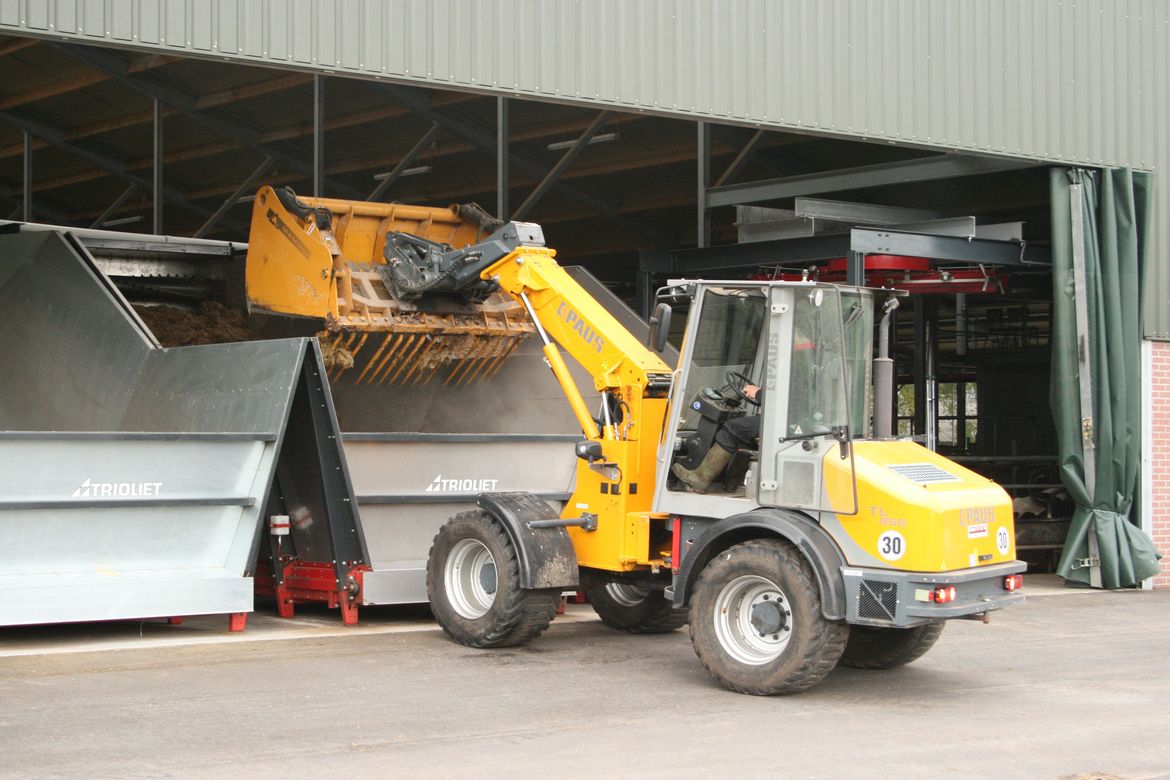

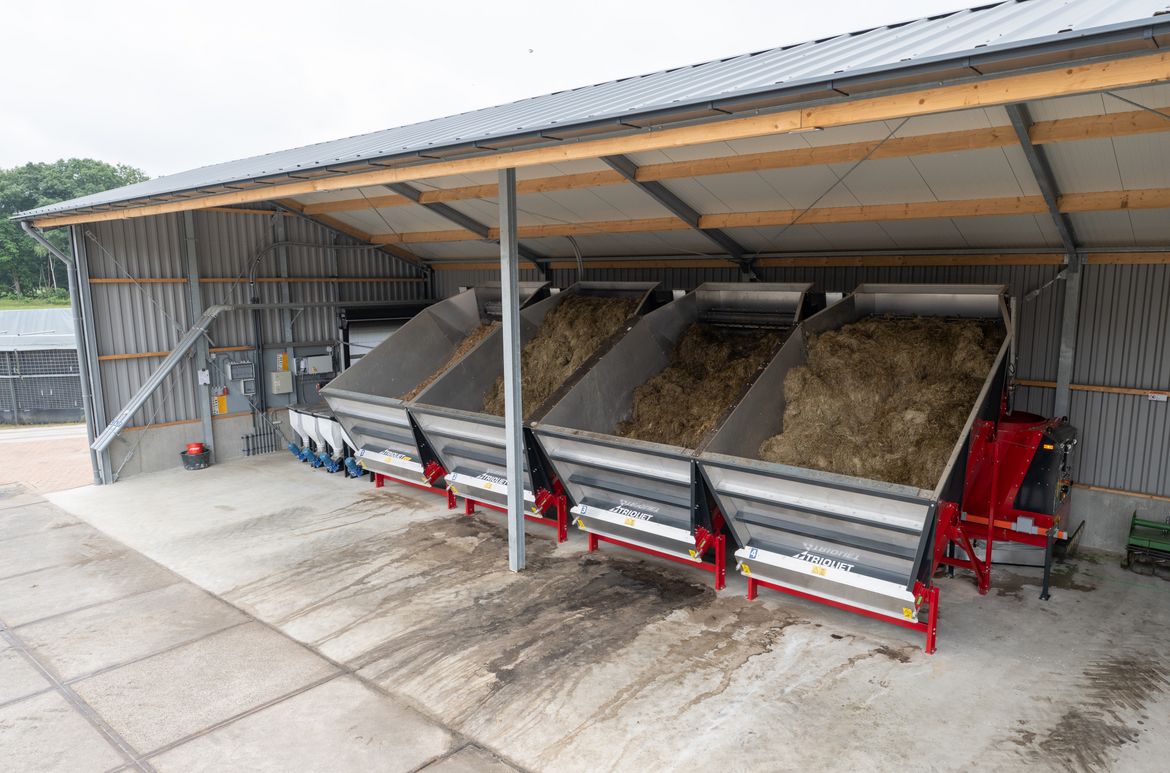

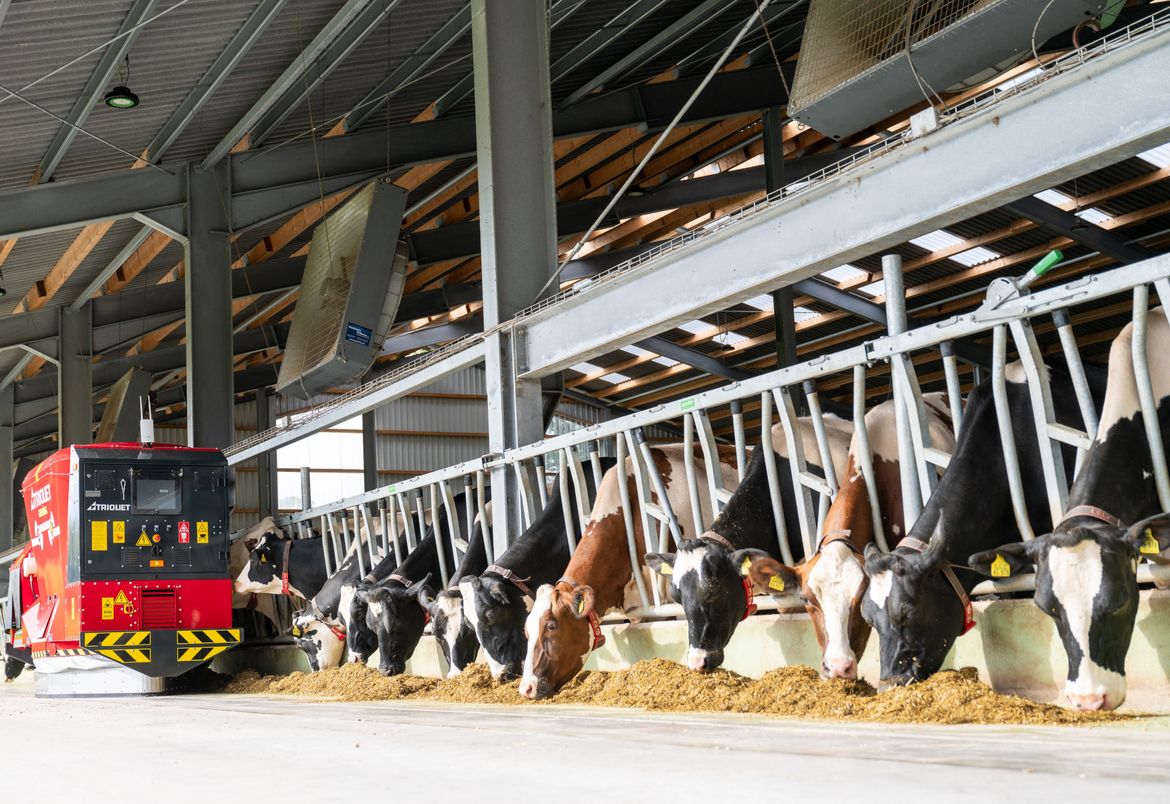

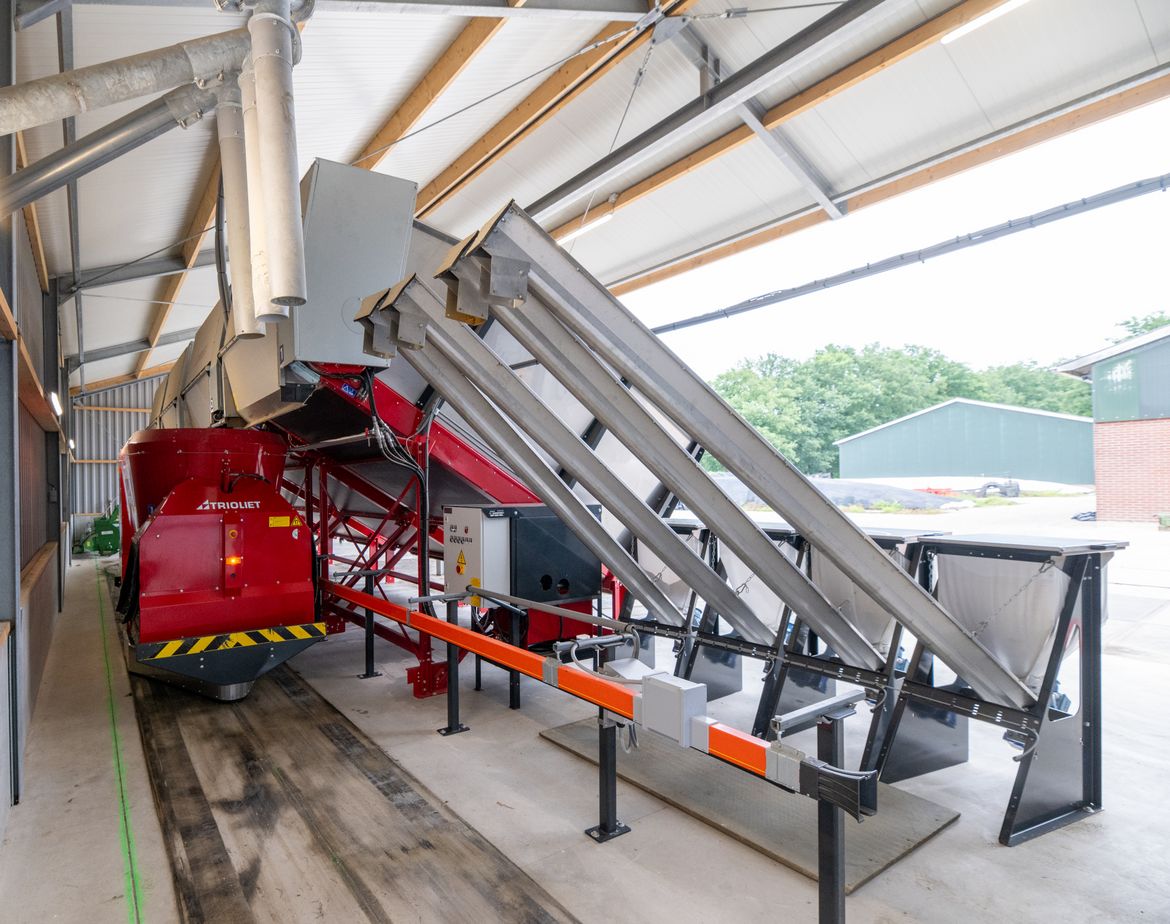

The Triomatic T30 feed storage unit / feed kitchen consists one or more supply bunkers for bulk forage that must be loaded with a silage grab. The number of forage components determines the number of Triomatic supply bunkers. In addition, by-products and types of concentrate can be added to the Triomatic feeding robot from other hoppers or storage silos. The feeding robot collects the feed from each bunker separately. Thanks to its special design, incorporating a horizontal loading section and a wide loading width, the storage bunker can be easily loaded with a tractor with a front-end loader or Telehandler. The feed kitchen for automated cattle feeding has a hydraulic pump unit with a control panel. The system can be combined with a battery-powered wheel-driven feeding robot, a mains-powered suspended feeding robot or a mains-powered wheel-driven feeding robot. Also read 'Get more out of forage with the automatic feeding system' in our blog posts.
Photos
Standard features
- Robust bunkers for storage of bulk forage components
- Double spreading rollers with lid to prevent spillage

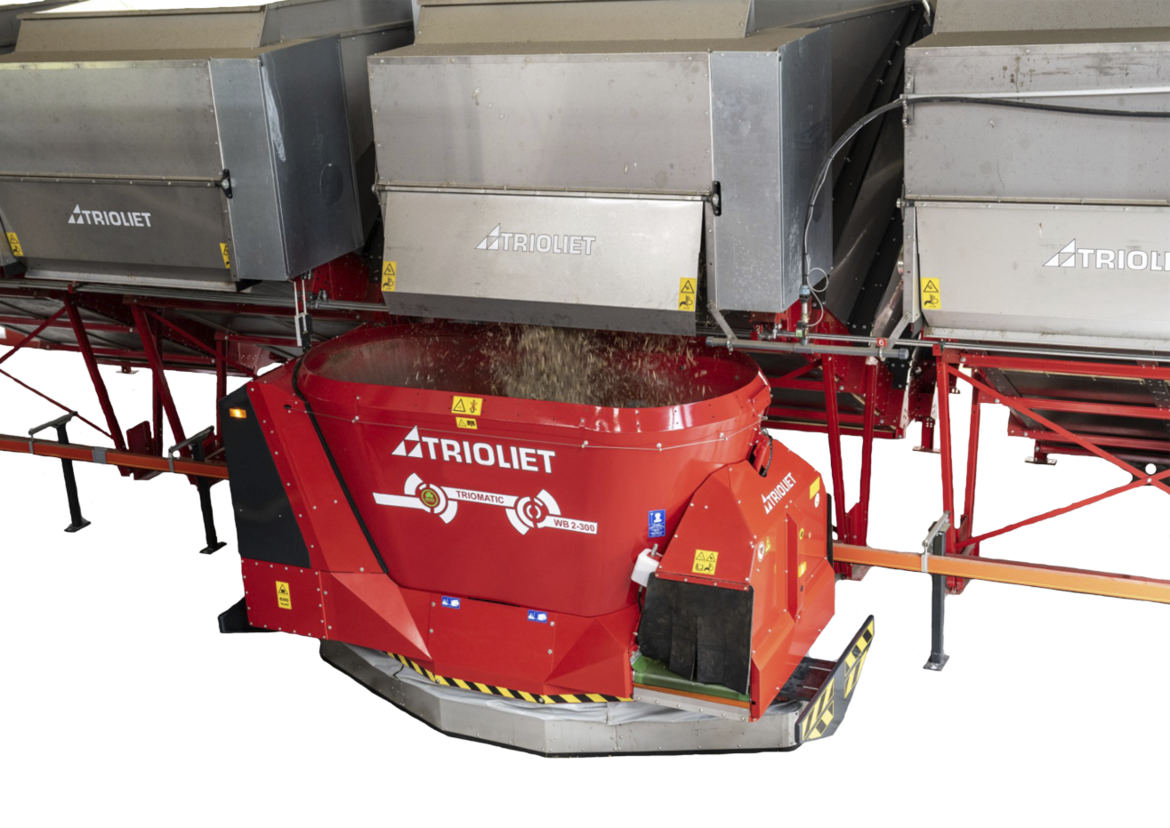

- Bunkers discharge directly into the feeding robot
- For forage with a limited stalk length (max. 0,5 ft), system does not cut
- Double floor to prevent feed from spilling underneath the bunker
- Flat and gradient bunker section for First In, First out system
- Solid hydraulic drive
- Corrosion-resistant metal floor and wall
Technical specifications
| Triomatic T30 feed storage for automatic feeding system | T30 |
|---|---|
| Max. number of feed bunkers | 6 |
| Bunker volume cu.ft. | 650 |
| Bunker length | 256" |
| Bunker width | 119" |
| Bunker height | 154" |
| Height of bunker's loading side from the floor m | 58" |
| Height of loading side's side walls from the floor m | 87" |
| Required clearance in the feed kitchen m | 157" |
| Maximum payload Lbs. | 22.050 |
| These specifications are subject to change |
