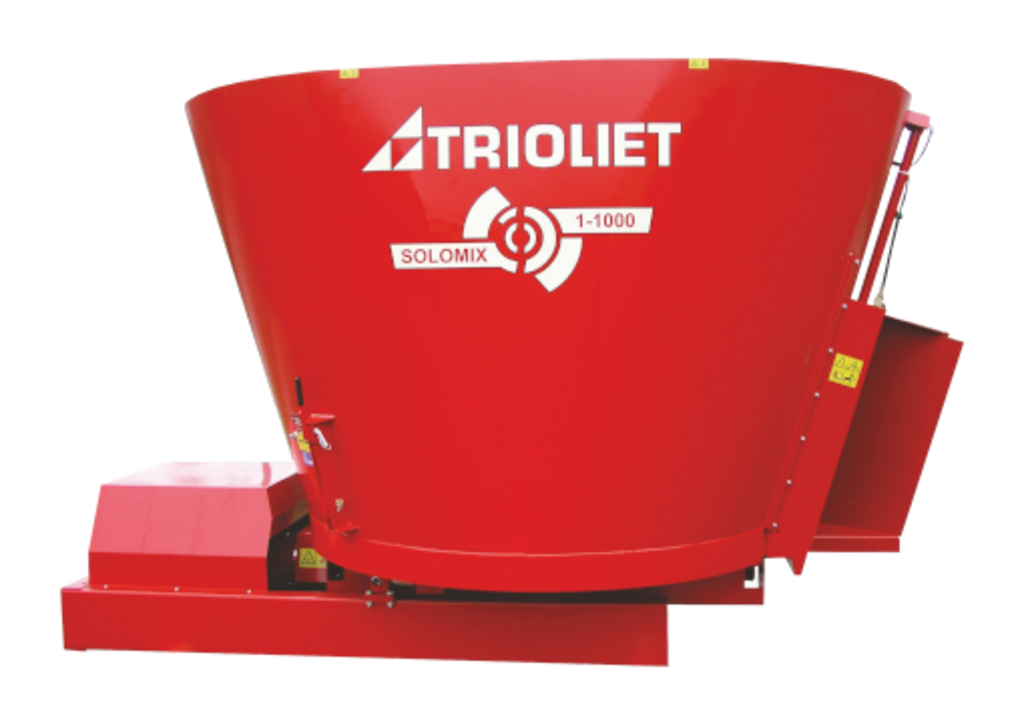

Solomix 1 stationary feed mixer for Biogas

    The challenge facing every biogas producer is to generate as much energy as possible with a minimum amount of input. Generating a positive yield is not always easy, however. A major factor is the type of delivery system used to transport the residual feed to the digester. Trioliet supplies stationary mixers with vertical augers and capacities ranging from 360 to 2.860 cu.ft. The Solomix 1 STAT Biogas features 1 auger and is available in volumes ranging from 360 to 650 cu.ft.

    attributes

    Capacity 360-650 cu.ft.

    Photos

    Video

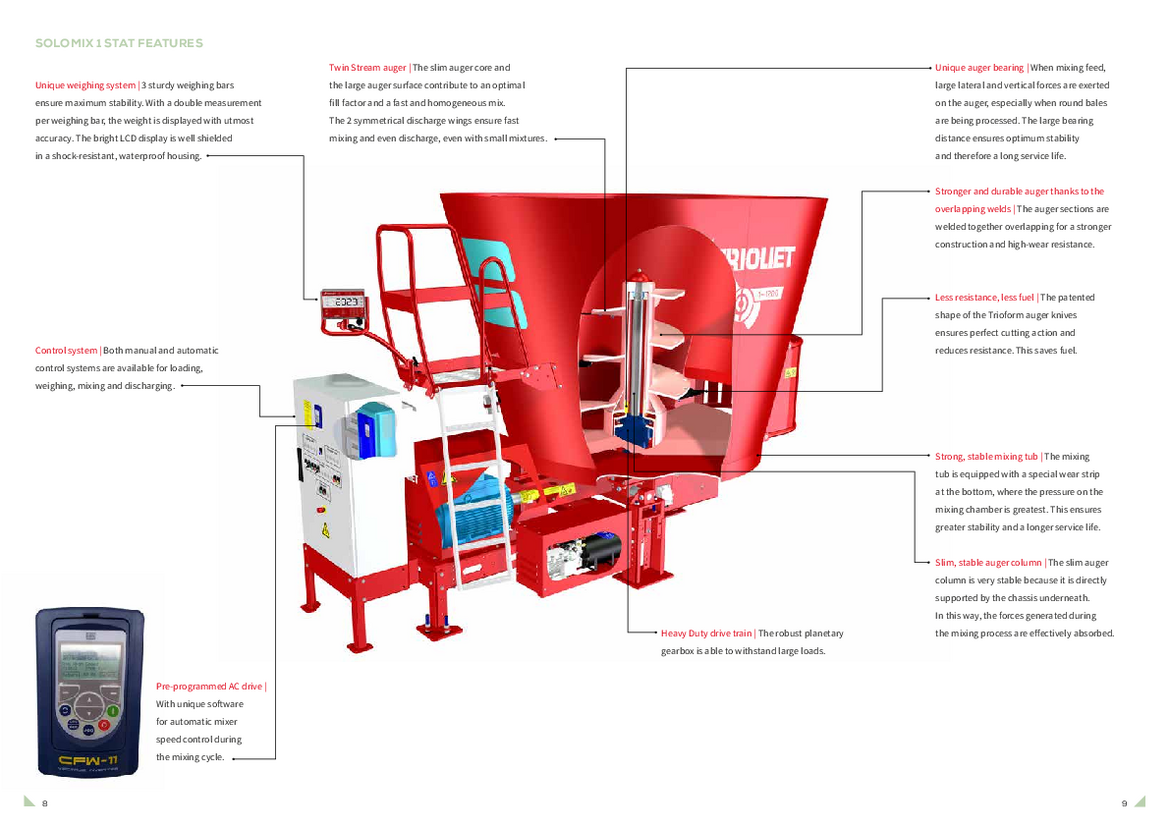

    Standard features

    • The machine is equipped with one discharge door as standard
    • One mixing auger with planetary drive mechanism driven by an electric motor
    • Mixing augers with 5/8" flighting and 3/4" auger wings
    • Three height-adjustable supports with the option to install weigh bars
    • Two manually operated counter knives
    • The discharge door is positioned directly opposite the drive side
    • Trioform auger knives

    Technical specifications


    Solomix 1 Biogas
    1000 1200 1400 1800
    Capacity cu.ft. 360 430 500 650
    Length (excl. motor)  166" 166" 170" 170"
    Length (incl. motor)  131" 135" 146" 146"
    Width  90" 90" 96" 96"
    Height*  97"-109" 105"-117" 107"-119" 130"-141"
    Nett weight Lbs.** 7.720 8.600 8.820 9.480
    Maximum payload kg. 5.000 6.000 7.000 9.000
    Number of auger knives  5 5 9 9
    Diameter of auger Ø 87" Ø 87" Ø 96" Ø 96"
    Required electrical installation Soft-start device / Freq. drive Soft-start device / Freq. drive Soft-start device / Freq. drive Soft-start device / Freq. drive
    Required electric motor power kW*** 15 18.5 22 30


    * The height of the supports can be adjusted by 118"
    ** Nett weight = excl. motor frame and electric motor
    *** Indicated required electric motor power valid up to max. payload
