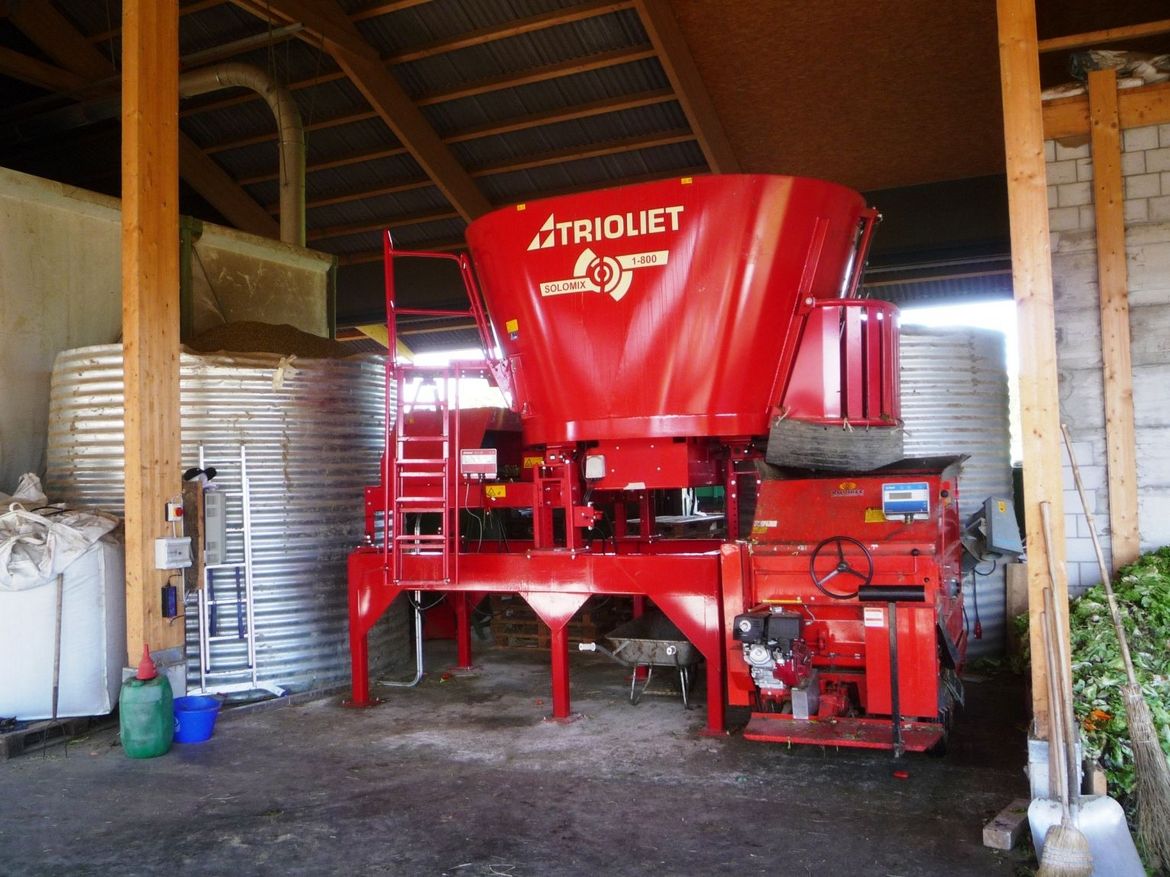

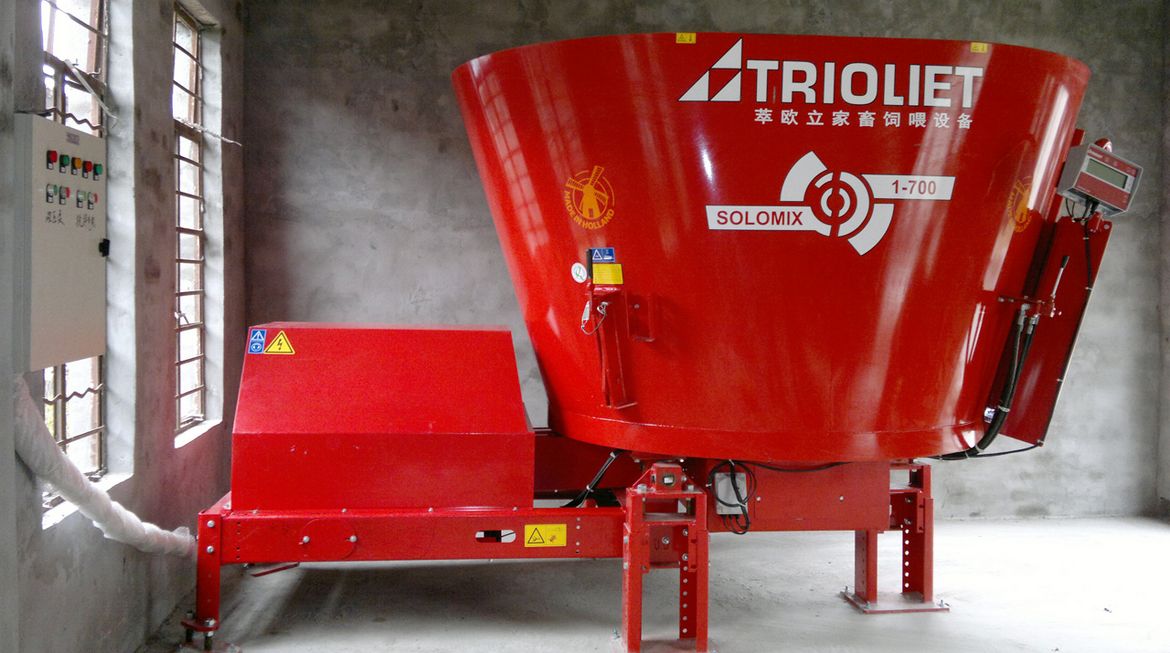

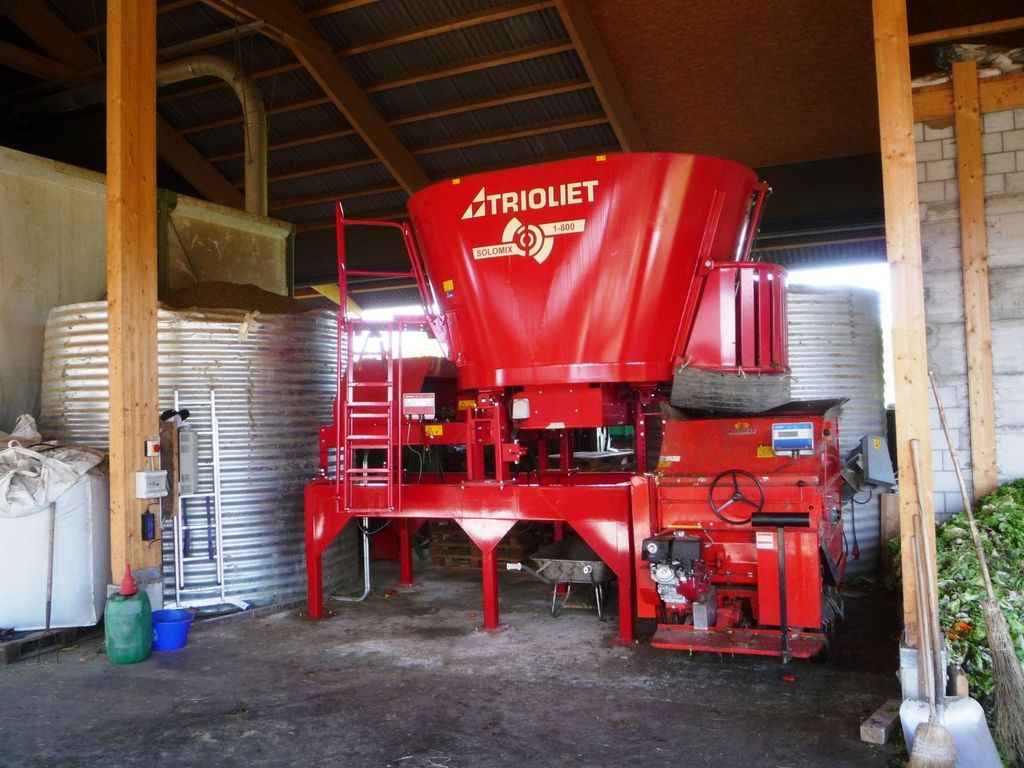

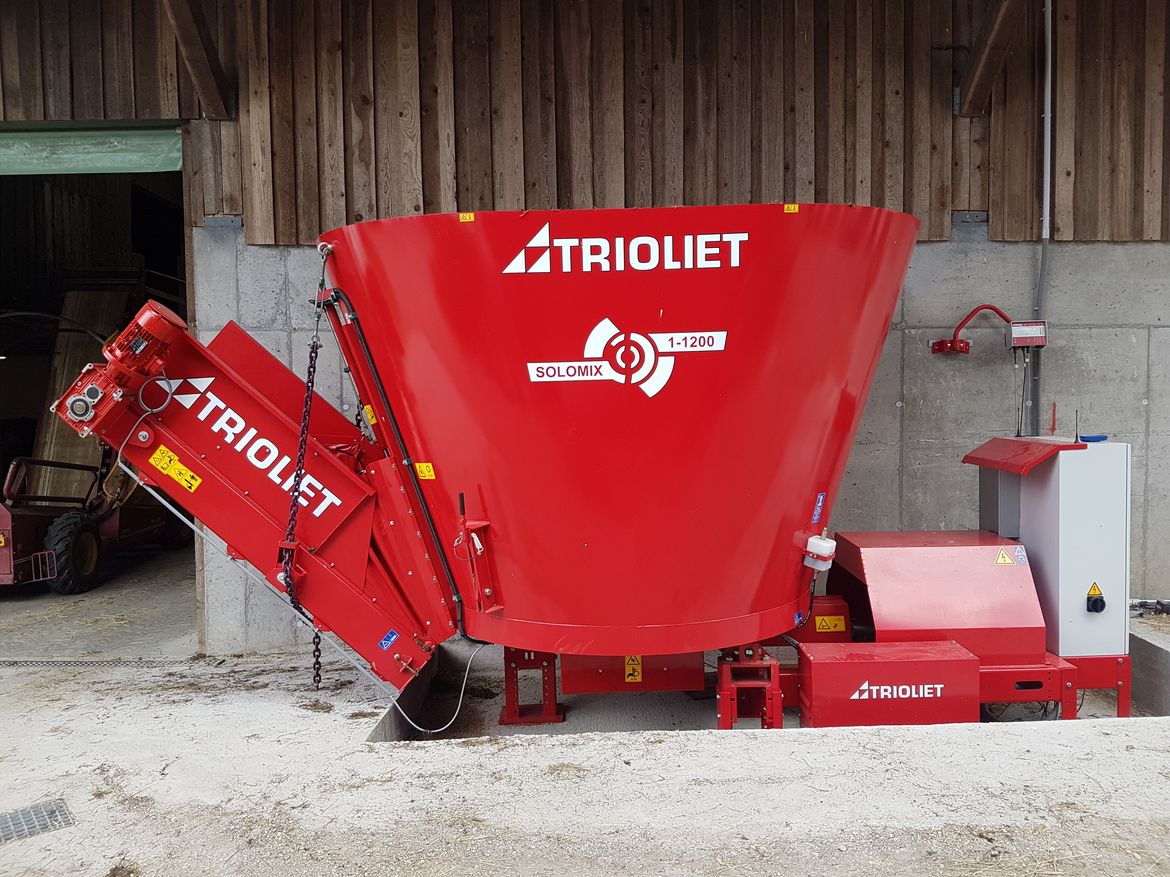

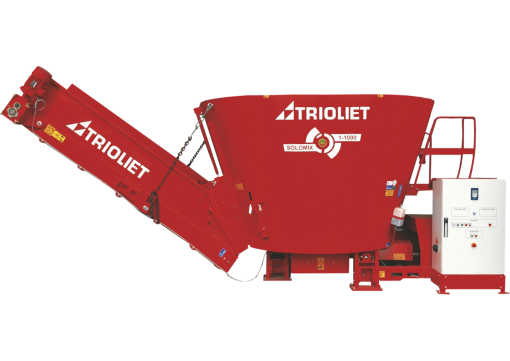

Solomix 1 stationary feed mixer for silage

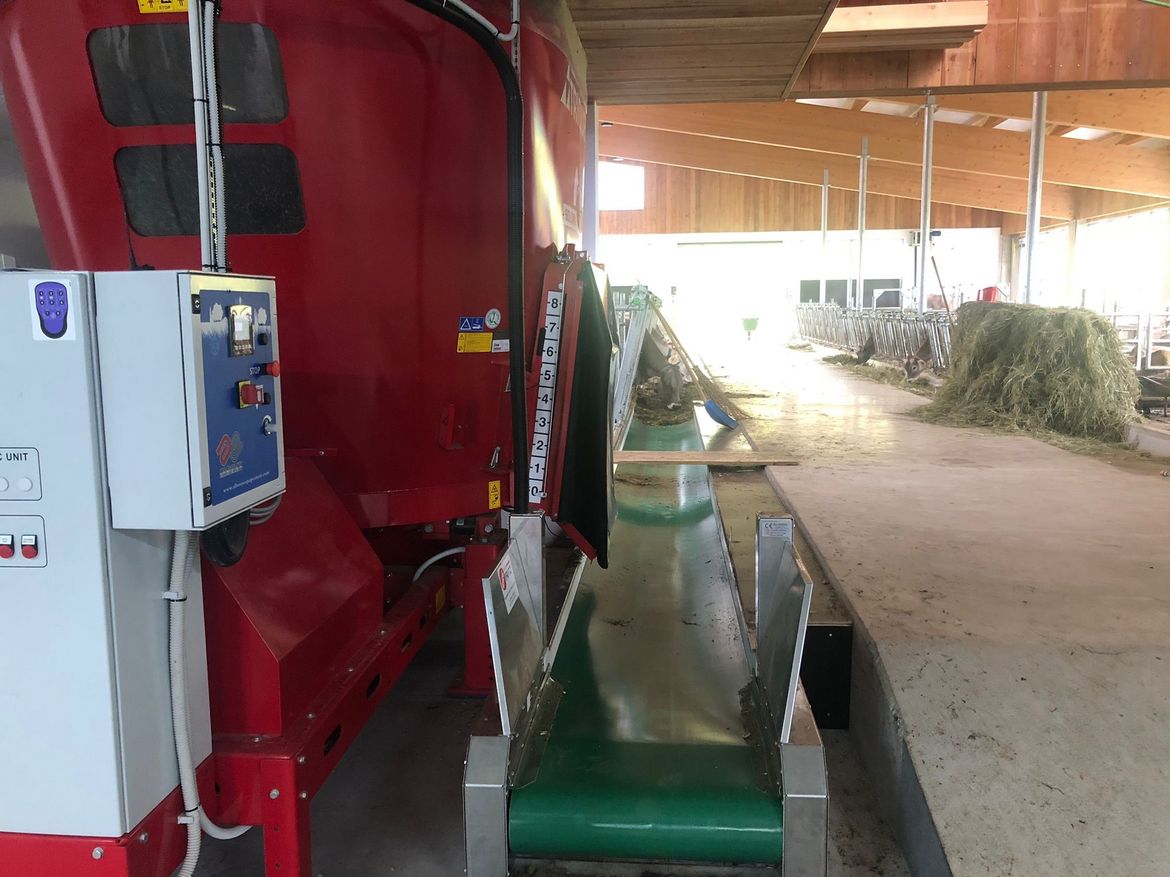

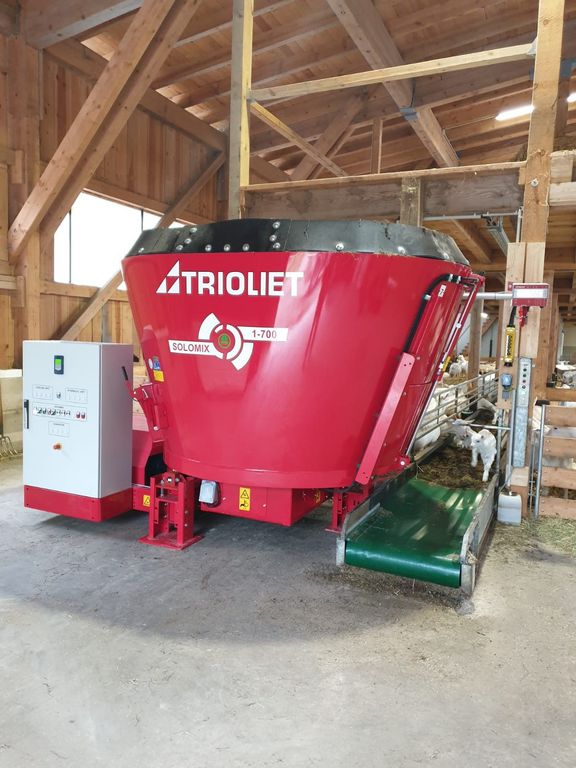

    The Solomix 1 STAT for silage is a stationary feed mixer, featuring a single vertical auger and a chain or belt conveyor. The mixed hay or grass is discharged by the chain conveyor into a spreader, a robot, or onto a belt system. This diet feeder is suitable for both large and small-scale livestock breeders and is available in volumes ranging from 250-500 cu.ft. Its simplicity means any maintenance costs are minimal and the machine operates at high efficiency. Click here to learn about all the unique Solomix features.

    Read the testimonial: How to use automation in order to improve feeding accuracy and efficiency

    attributes

    Capacity 250-500 cu.ft.
    Discharge type Front discharge (VL) / Side discharge door (ZK)

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • One door of the E-motor
      • Three supports adjustable in height
      • Tub, auger(s), chassis and wear ring out of St. 52

      Technical specifications

      Solomix 1 stationary feed mixer for silage (VL) 700 VL  1000 VL 1200 VL 1400 VL
      Capacity cu.ft. 250 360 430 500
      Overall length (excl. motor)  124" 136" 139" 149
      Overall length (incl. motor)  161" 168" 168" 170
      Overall width  85" 90" 91" 96"
      Overall height*  82-94" 97-109" 105-117" 107-119"
      Nett weight without E-motor and frame Lbs 5.071 7.716 8.598 8.818
      Number of auger knife positions per auger 8 8 8 12
      Number of knives mounted per auger 5 5 5 9
      Auger diameter  Ø 79" Ø 87" Ø 87" Ø 96"
      Required electrical installation Frequency drive Frequency drive Frequency drive Frequency drive

      .

      Solomix 1 stationary feed mixer for silage (ZK) 700 ZK  1000 ZK 1200 ZK 1400 ZK
      Capacity cu.ft. 250 360 430 500
      Overall length (excl. motor)  115" 131" 135" 149"
      Overall length (incl. motor)  161" 168" 168" 170"
      Overall width  87" 94" 94" 96"
      Overall height*  82-94" 97-109" 105-117" 107-119"
      Nett weight without E-motor and frame Lbs 5.181 7.385 8.708 8.818
      Number of auger knife positions per auger 8 8 8 12
      Number of knives mounted per auger 5 5 5 9
      Auger diameter Ø 79" Ø 87" Ø 87" Ø 96"
      Required electrical installation Frequency drive Frequency drive Frequency drive Frequency drive

      * Supports are standard adjusted on 31,5'' height
