Turbobuster TU Silage cutter

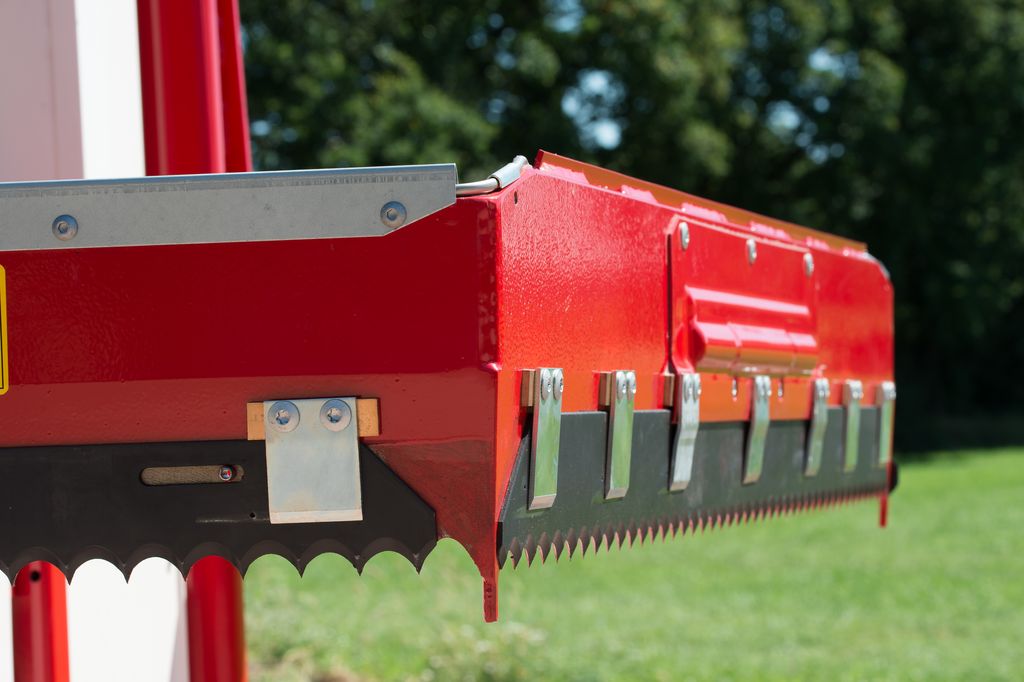

    The Turbobuster silage cutter is designed for extremely tough grass silage and has a high cutting capacity, thanks to the robust, deep serrations of the knives and the hydraulic bypass system, which is capable of providing high pressure independently of the tractor. The Turbobuster is capable of generating at least 40% more feed pressure and/or cutting force. The result is a smooth, clean-cut silage block.

    Read article: Limit feed loss from silage to barn

    attributes

    Capacity 60 - 100 cu.ft

    Photos

    Video

    Standard features

    • Silageblockcutter U-model
    • High capacity cutting system
    • By-pass system ensures high cutting capacity in all kinds of silage
    • Standard equipped with black-plates, completely protected cable housing, knife protectors and quick-fit coupling
    • The machine is for three-point linkage and is to be connected directly to the tractor hydraulics
    • Cutting system with direct drive on the knives and bypass system
    • Special tempered cutting knives
    • Powder coated

    Technical specifications

    Turbobuster TU TU 115 TU 145 TU 170 TU 195
    Capacity cu.ft. 60 74 88 100
    Length  45" 45" 45" 45"
    Width  77,6" 77,6" 77,6" 77,6"
    Height  79,5" 91,3" 101,2" 111,0"
    Net weight in lbs. 1213 1279 1323 1367
    Loading capacity (max. height)  65,0" 76,8" 86,6" 96,5"
    Required hydraulic capacity 6,6 gal/min., 2,100 PSI 6,6 gal/min., 2,100 PSI 6,6 gal/min., 2,100 PSI 6,6 gal/min., 2,100 PSI
    Max. hydraulic connection 12 gal/min.,2,900 PSI 12 gal/min.,2,900 PSI 12 gal/min.,2,900 PSI 12 gal/min.,2,900 PSI
