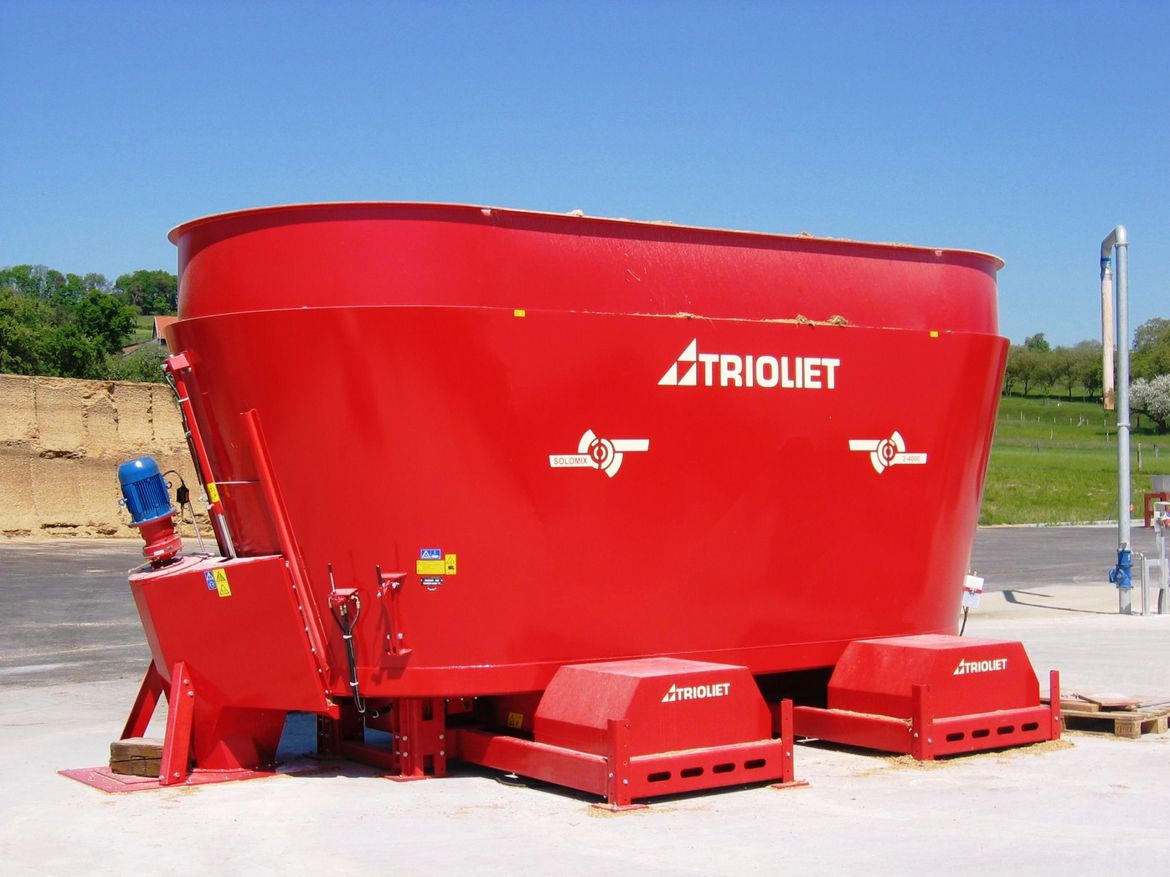

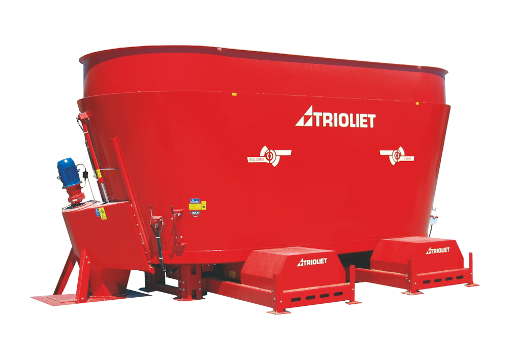

Solomix 2 stationary feed mixer for Biogas
The challenge facing every biogas producer is to generate as much energy as possible with a minimum amount of input. Generating a positive yield is not always easy, however. A major factor is the type of delivery system used to transport the residual feed to the digester. Trioliet supplies stationary mixers with vertical augers and capacities ranging from 360 to 2.860 cu.ft. The Solomix 2 STAT Biogas features 2 augers and is available in volumes ranging from 430 to 1.650 cu.ft.
Standard features
- The machine is equipped with one discharge door as standard.
- Two mixing augers with planetary drive mechanism driven by one or two electric motor(s)
- Trioform auger knives
- Mixing augers with 5/8" flighting and 3/4" auger wings (1200 - 2000)
- Mixing augers with 7/8" flighting / 1" auger wings (from 2400)
- Four height-adjustable supports with the option to install weigh bars for the various set-up options
- Two manually operated counter knives
- Detachable auger bases (from 2400)
Technical specifications
| Solomix 2 Biogas | 1200 | 1600 | 2000 | 2400 | 3000 | 3200 | 4000 |
|---|---|---|---|---|---|---|---|
| Capacity cu.ft. | 430 | 570 | 710 | 860 | 1.070 | 1.150 | 1.650 |
| Length | 206" | 220" | 247" | 260" | 260" | 291" | 291" |
| Length (incl. motor) | 166" | 181" | 205" | -- | -- | -- | -- |
| Width | 85" | 90" | 96" | 96" | 96" | 110" | 110" |
| Height* | 100-112" | 112-124" | 112-124" | 108-120" | 132-144" | 108-120" | 132-144" |
| Nett weight Lbs. ** | 7.500 | 9.480 | 11.900 | 14.110 | 16.750 | 20.720 | 22.050 |
| Maximum payload kg. | 6.000 | 8.000 | 10.000 | 12.000 | 15.000 | 16.000 - 20.000 **** | 20.000 |
| Number of auger knives | 4 | 5 | 5 | 6 | 6 | 9 | 9 |
| Diameter of auger | Ø 59" | Ø 67" | Ø 77" | Ø 87" | Ø 96" | Ø 105" | Ø 105" |
| Required electrical installation | Soft-start device / Freq. drive | Soft-start device / Freq. drive | Soft-start device / Freq. drive | Soft-start device / Freq. drive | Soft-start device / Freq. drive | Soft-start device / Freq. drive | Soft-start device / Freq. drive |
| Required electric motor power kW*** | 15 | 22 | 30 | 2x15 | 2x18,5 | 2x22 2x30 **** | 2x30 |
* The height of the supports can be adjusted by 118"
** Nett weight = excl. motor frame and electric motor
*** Indicated required electric motor power valid up to max. payload
**** Only in combination with a heavy-duty drive line
