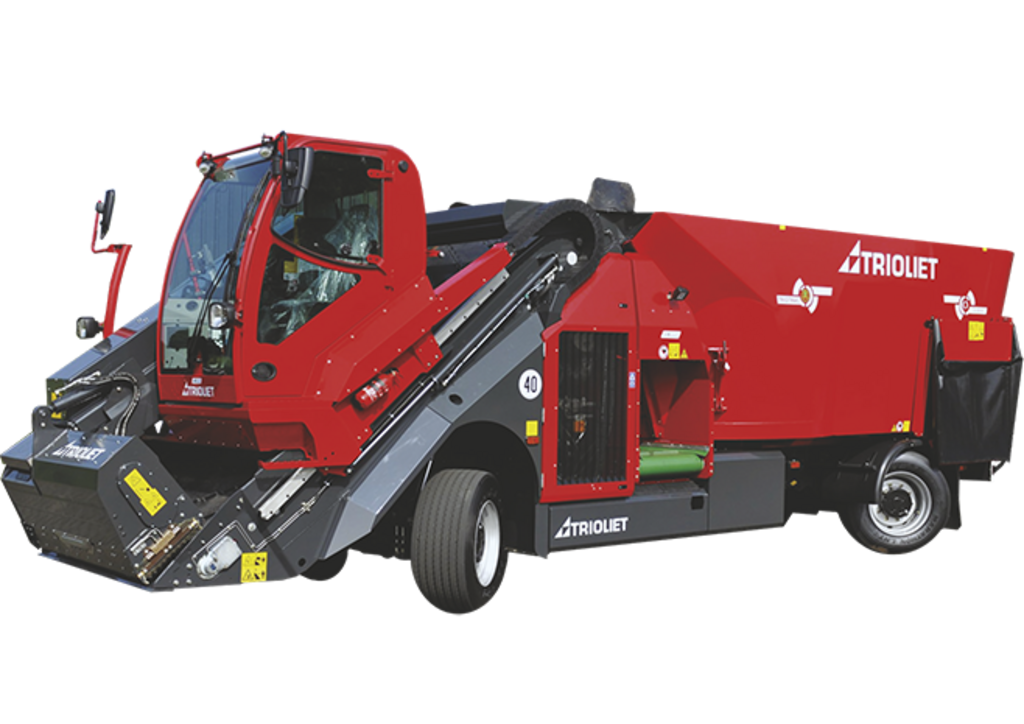

Triotrac L self propelled TMR mixer

    The Triotrac is renowned for its huge capacity. It can cut and load up to 2,500 kg of grass silage per minute with silage extraction up to 20 ft (6 metres) high. The machine guarantees exceptional results day in, day out. Some of our clients use the self-propelled feeder mixer for up to ten hours a day. The Triotrac self-propelled feed mixer is available with a discharge unit at the front or rear and in 600, 715, and 860 cu.ft. capacities. The cutting and loading system is unique and leaves the feed structure intact, which offers a sizeable (financial) advantage.

    New to this range is the Triotrac L Farmer Edition. It has been specifically developed for livestock farms looking for a fast and efficient self-propelled feed mixer, without requiring all the features of the high-spec Triotrac L. The Farmer Edition is equipped with a four-cylinder engine, front-wheel drive and a loading arm with a silage cutting height of up to 4.5 metres. This makes it a practical and cost-effective solution for many farms, perfectly suited to their daily feeding operations. Learn more about the advantages of silage extraction with the knives / cutting system.

    attributes

    Capacity 600-860 cu.ft.
    Discharge type Front, side or rear discharge
    Model Self-propelled
    USP's

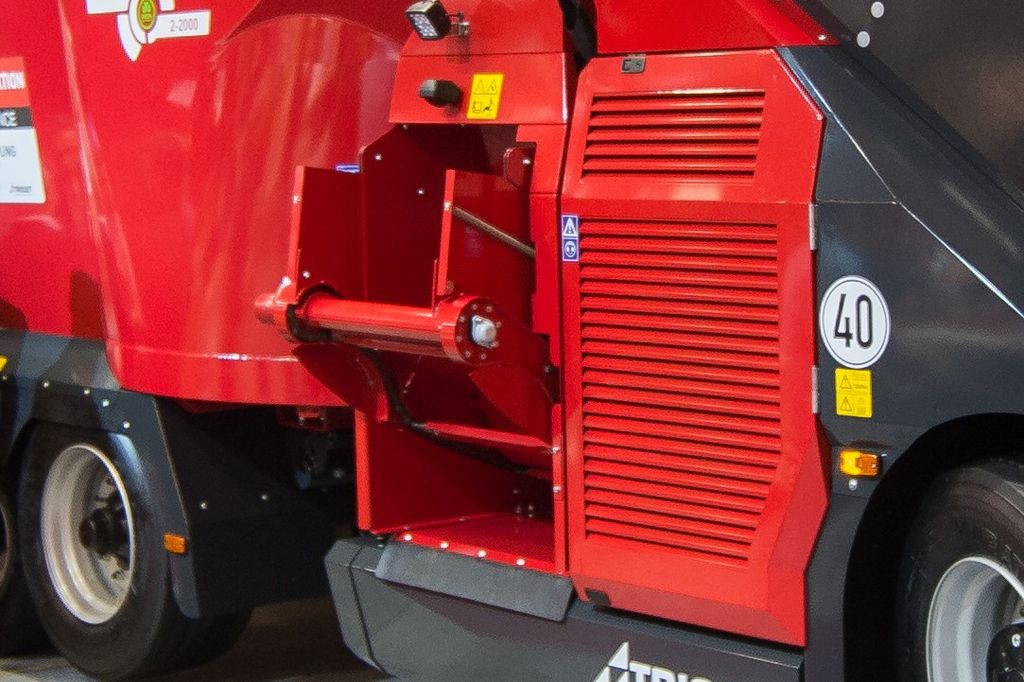

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video
      Standard features
      • Optimally formed mixing chamber with two hydraulically driven vertical Twin Stream augers with variable speed
      • Long Life mixing augers with 22mm flighting and 25mm wings
      • 1,85m wide cutting frame (U-shape) with a transport roller

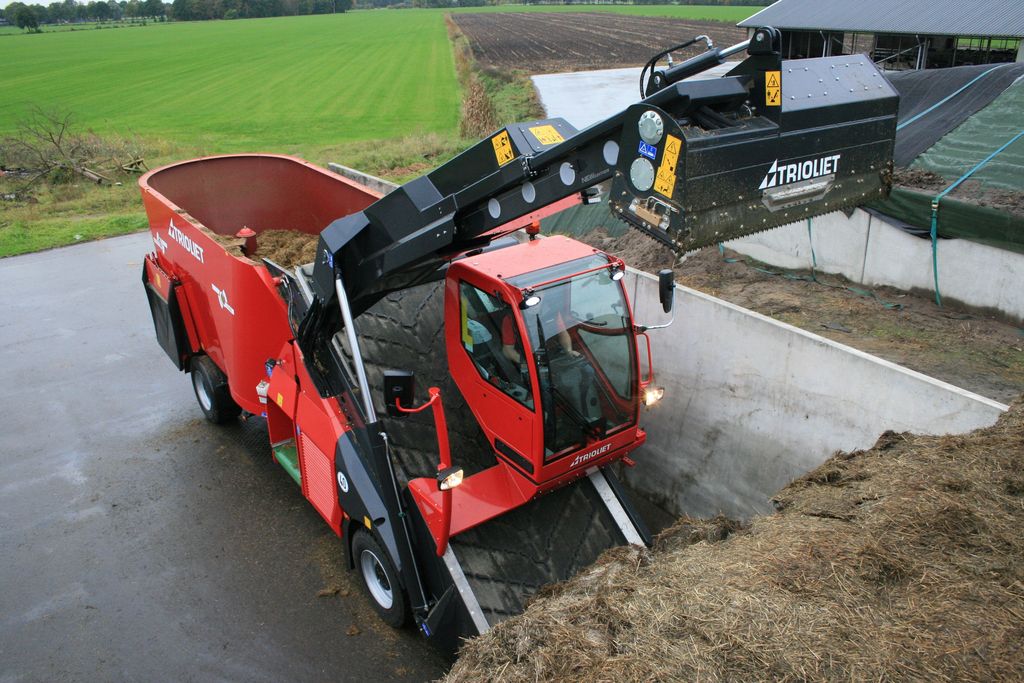

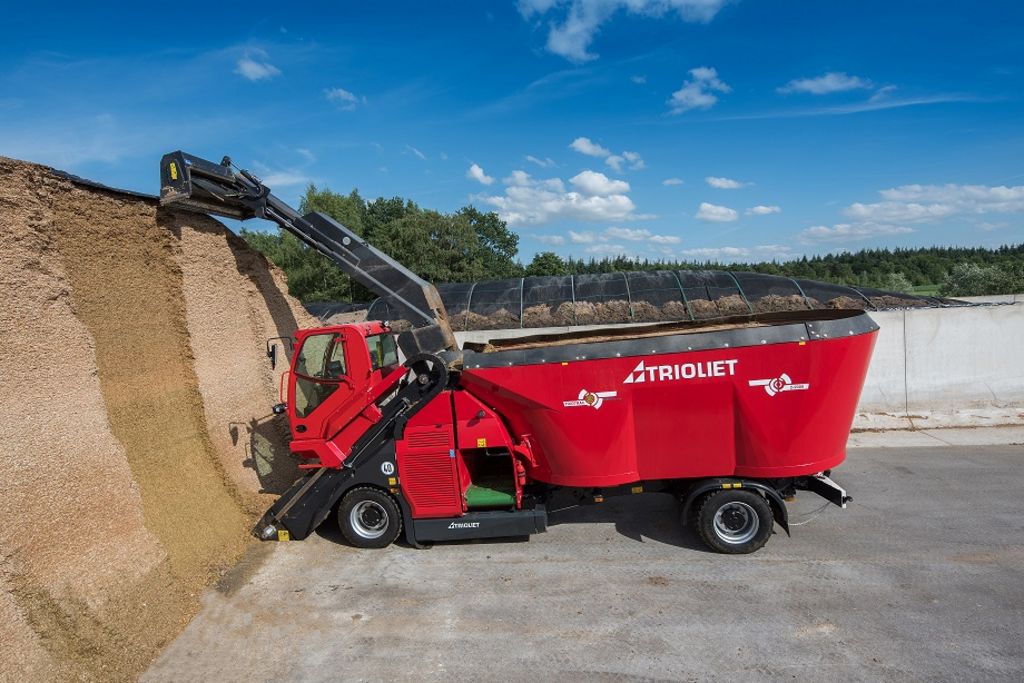

      • Telescopic loading system with automatic cutting curve correction for smooth silos without undercutting
      • 1,85m wide belt conveyor with variable speed regulation
      • In height adjustable cab
      • Triotrac L Farmer Edition available in 17 and 20 m³
      • Cutting system with silage face contour correction, with a cutting height of up to 4.5 m (Farmer Edition)
      • FPT four-cylinder engine with an output of 147 kW / 200 hp (Farmer Edition)
      • Front-wheel drive with a maximum travel speed of 25 km/h (Farmer Edition)
      • Hydrostatic drive with air suspensioned seat, powershift transmission for ECOdrive during transport and superior traction in farm yard mode
      • Hydraulic suspension on front axle and parabola sprung suspension on rear axle
      • Optional a third axle for reduced load on the ground and pavement preservation
      • Four wheel drive and four wheel steering with limited slip differential in front- and rear axle
      • FPT 202kW (191kW nom.) 6-cylinder Common-rail diesel engine according to stage V (SCR only (BlueDEF))
      • Comfortable cab with folding sidewindow, climate control (heating and air conditioning), radio, screen wipers all around, front shield heating
      • Reverse safety camera and alarm signal
      • Electrically adjustable and heated mirrors
      • LED work lights all around
      • Trioform auger knives
      • Automatic engine cooler with temperature-dependent controller and radiator cleaning system
      • A cross belt conveyor for discharging in front of the mixing chamber

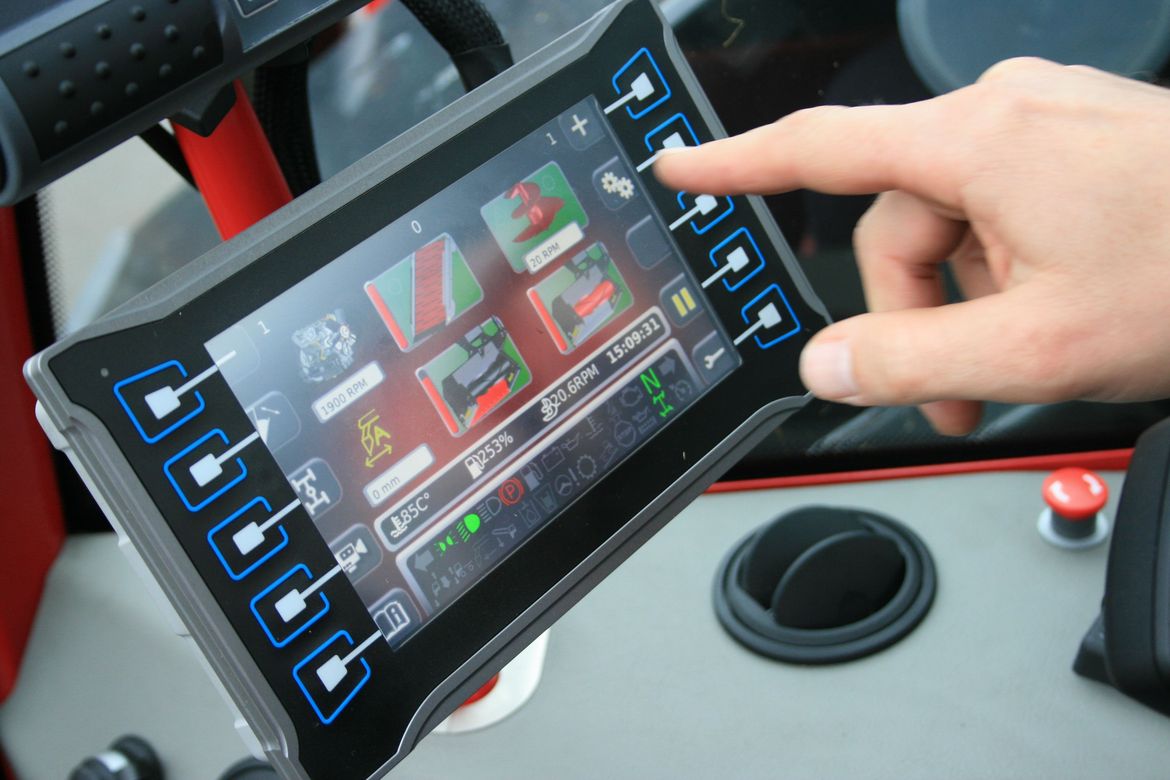

      • A programmable weighing system with Triotronic 7600T colour touch screen indicator
      • Joystick operation, programmable load- and discharge modes (to preset machinefunctions for different ingredients, rations and different stables)
      • Cruise control
      • Rimote service tool for over the air error read-out and software repairs by Trioliet service department
      Technical specifications
      Triotrac L170020002400
      Capacity cu.ft.600715860
      Overall length 382"402"404"
      Overall width 96"96"96"
      Overall height 116"116"130"
      Cutting heigth max. 236"236"236"
      Cutting width 73"73"73"
      Cutting depth 16"16"16"
      Max. speed for yard use mph.121212
      Max. speed during road transport mph.252525
      Tire size (4x)435/50
      R 22.5
      435/50
      R 22.5
      435/50
      R 22.5
