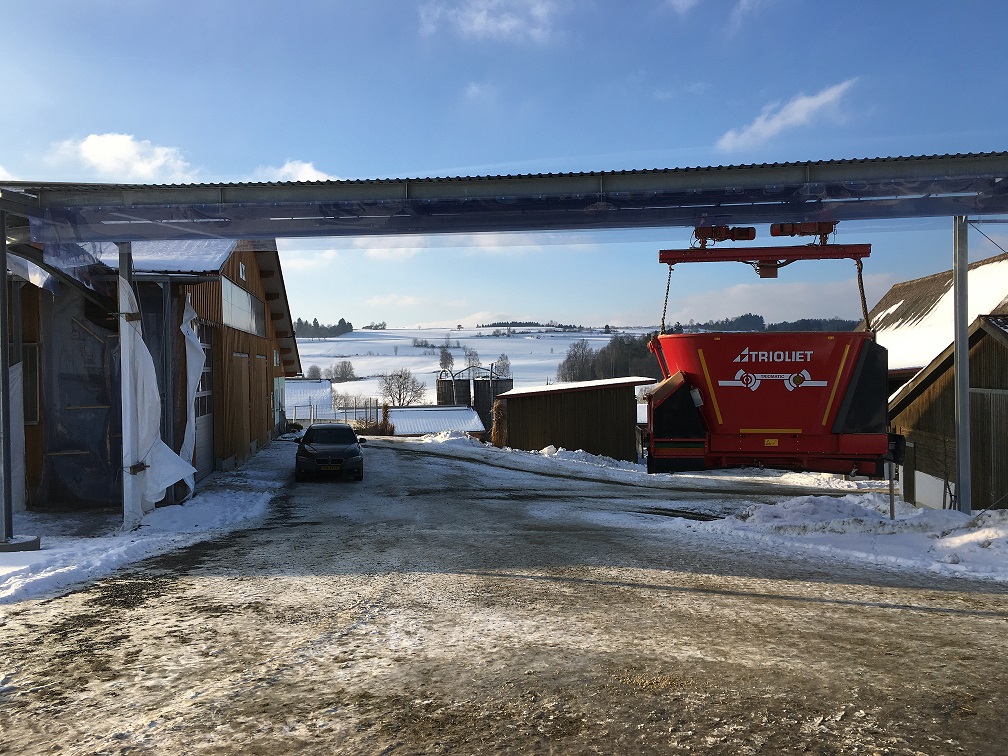

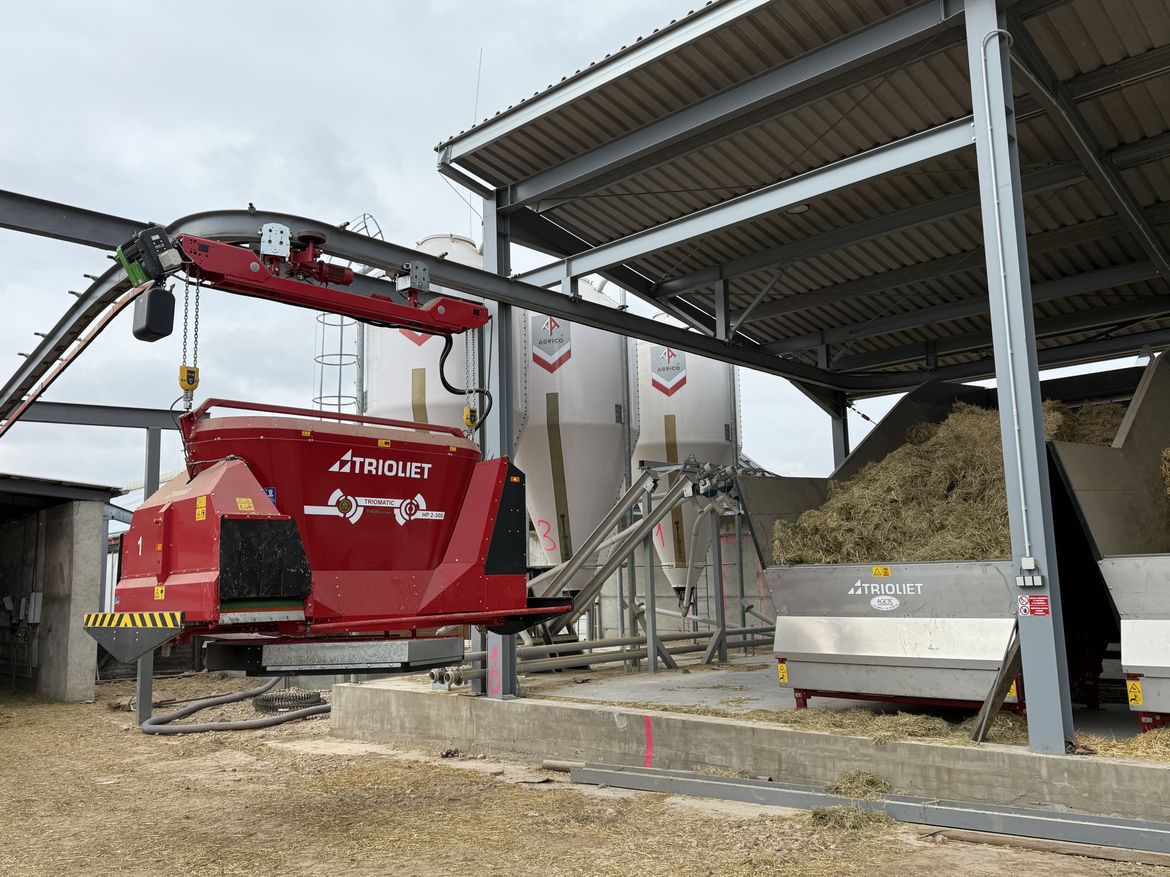

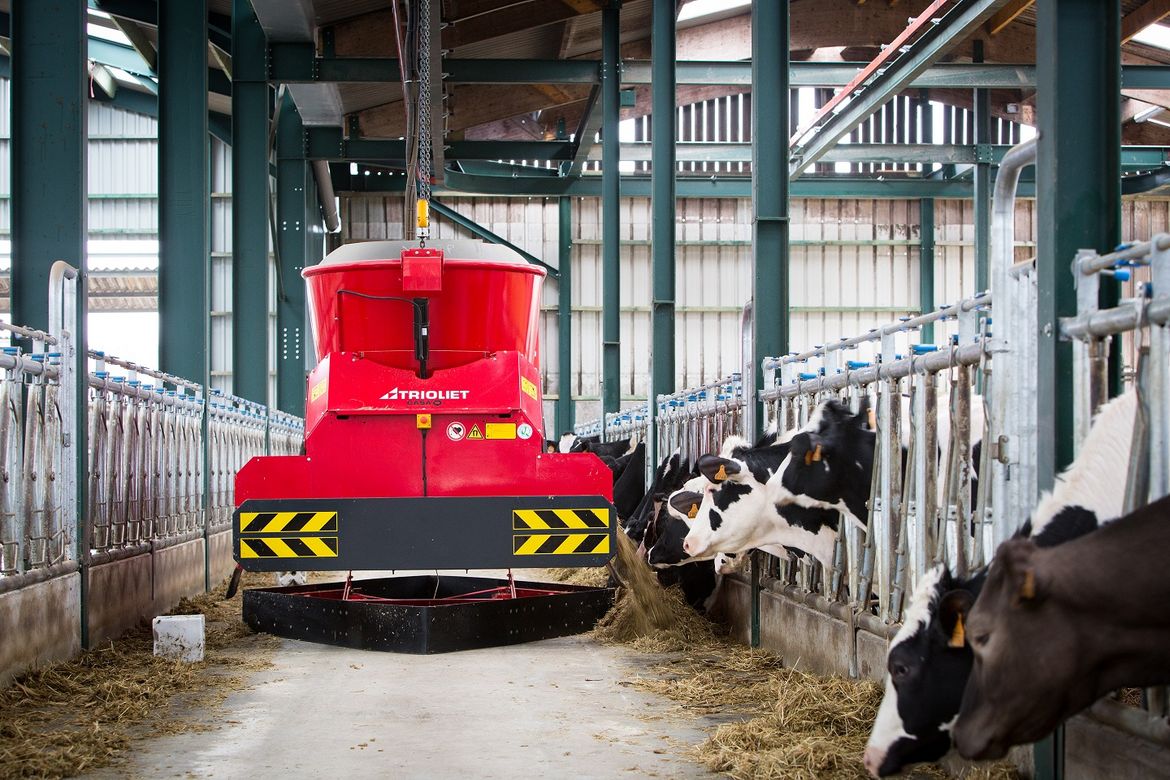

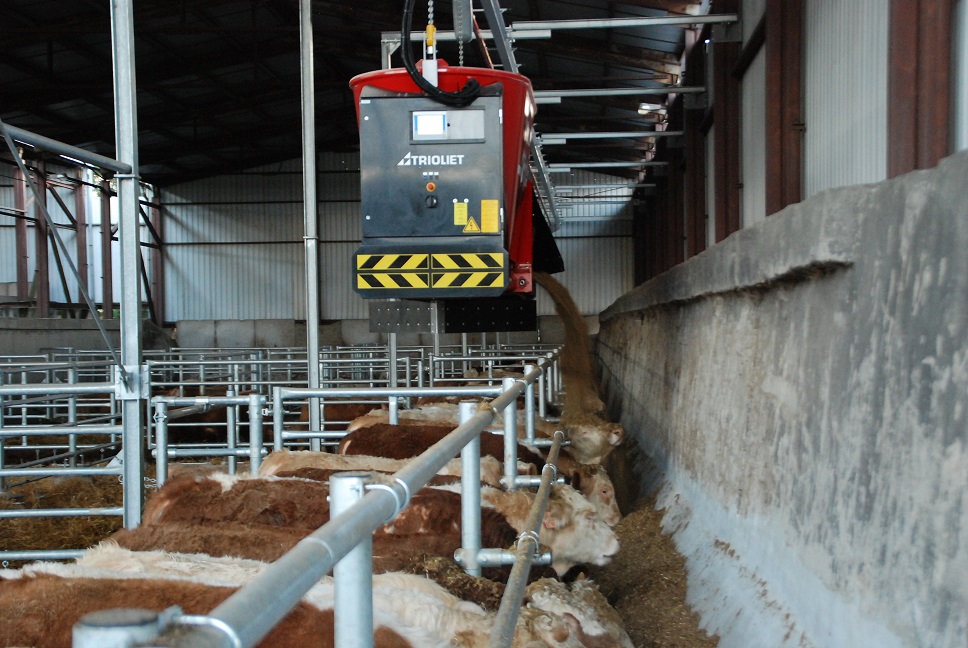

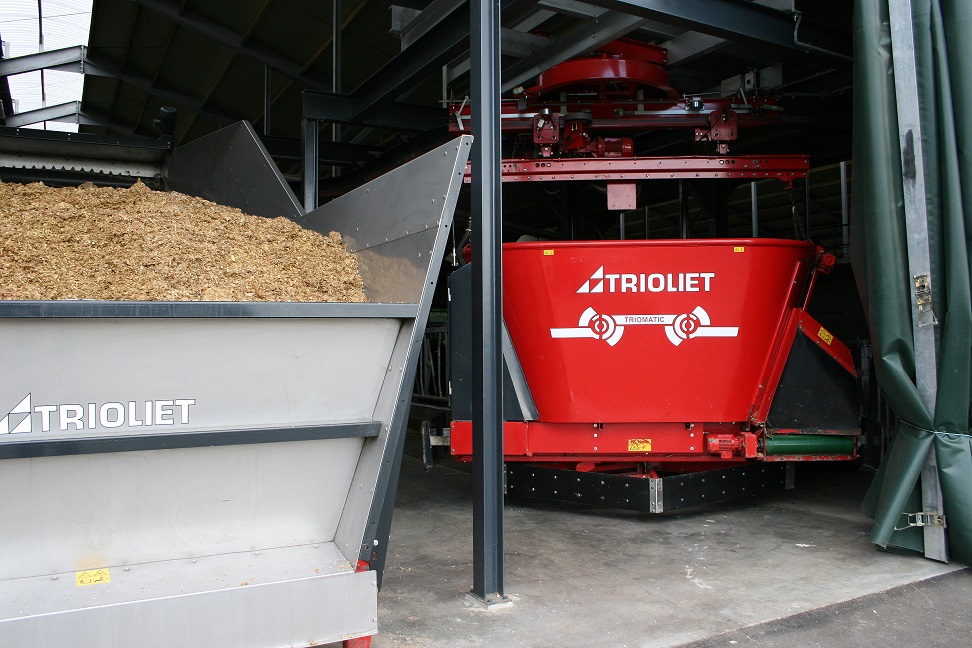

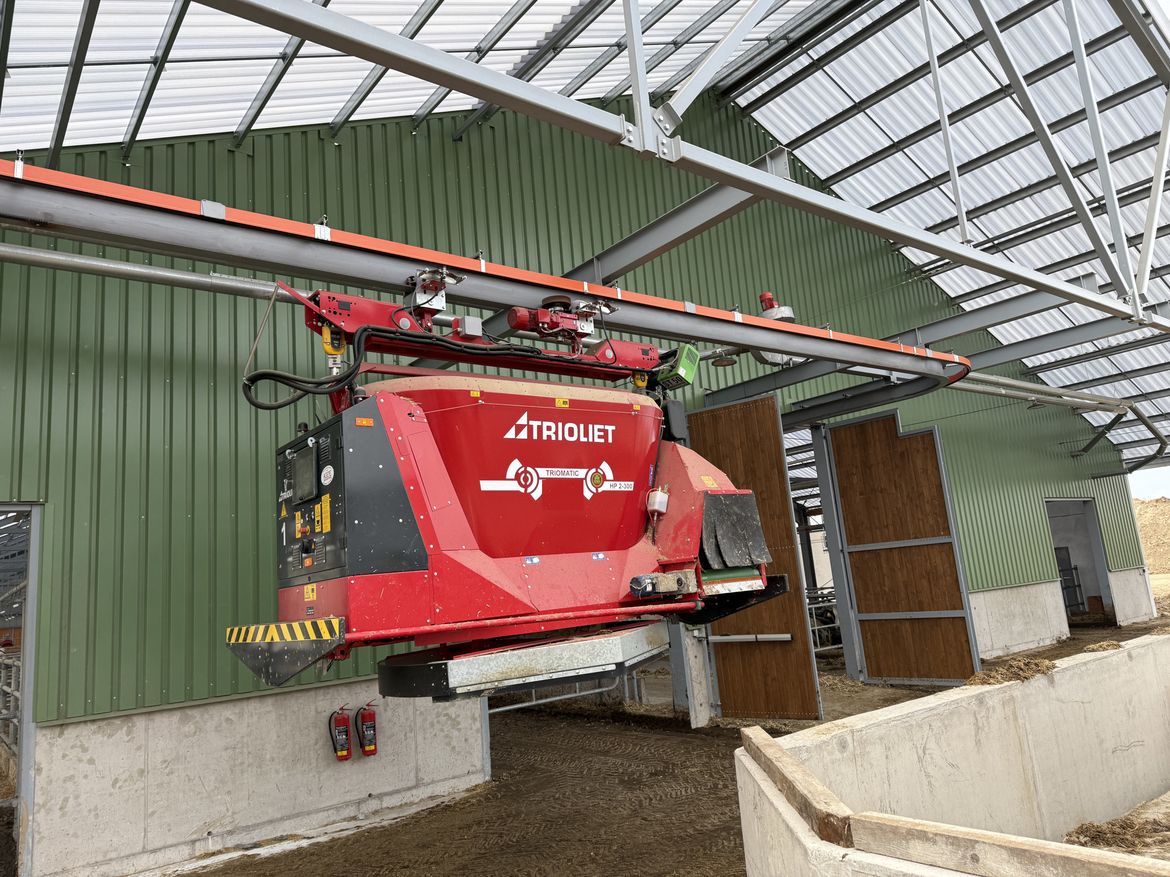

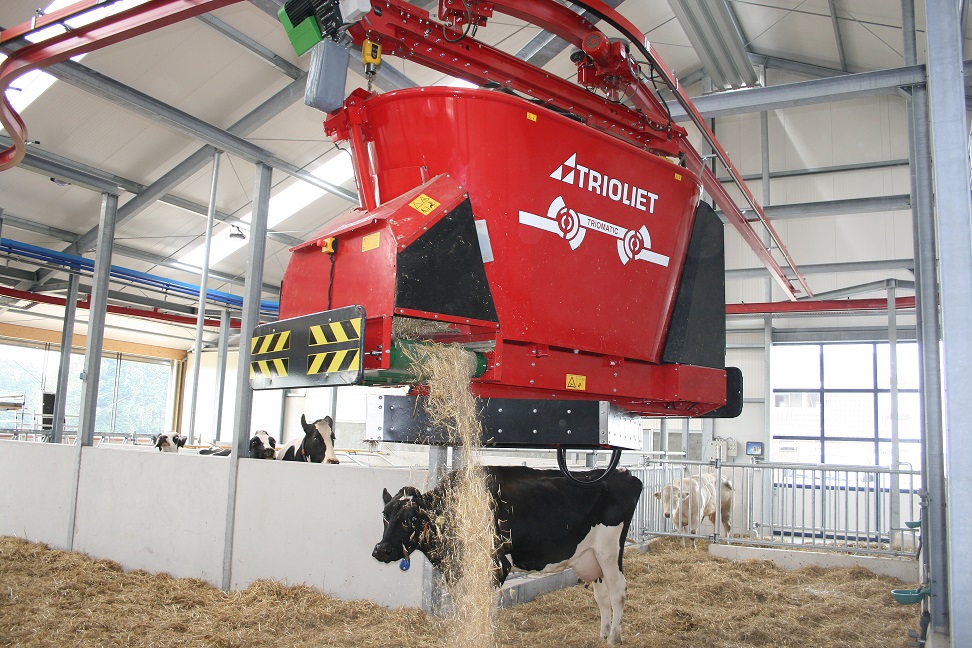

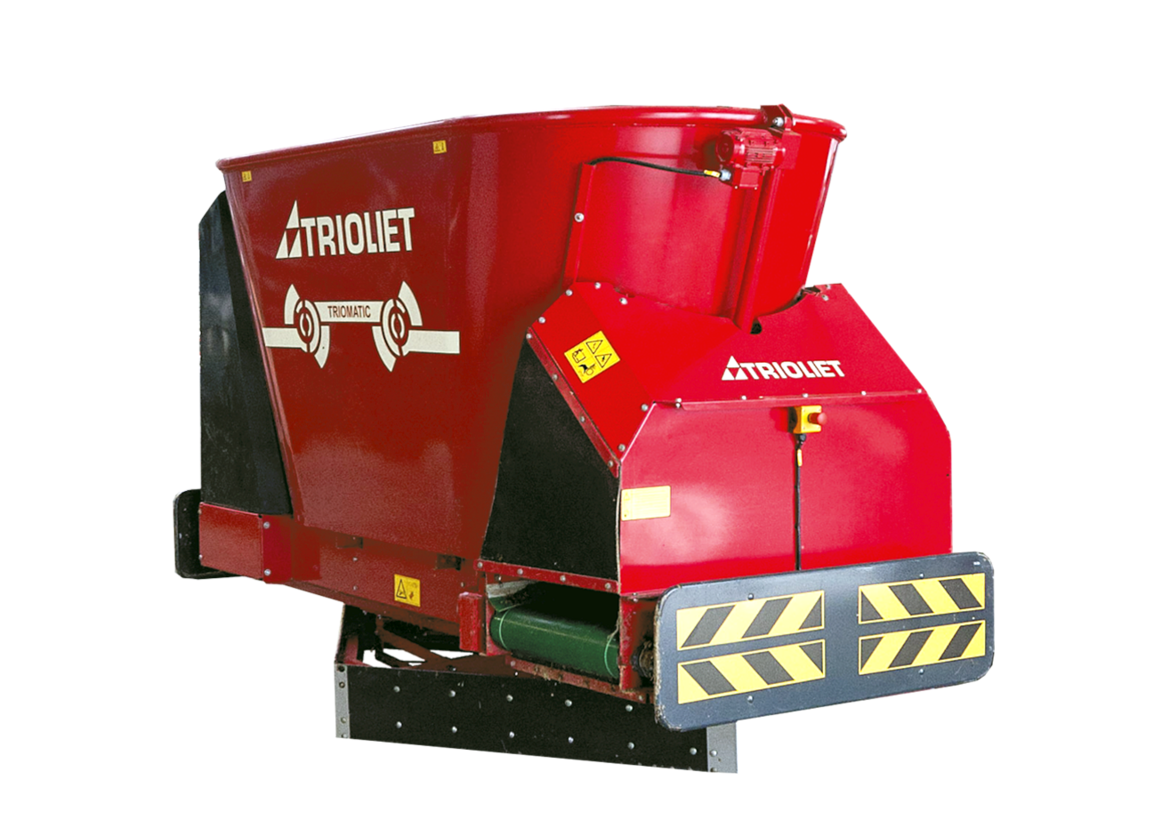

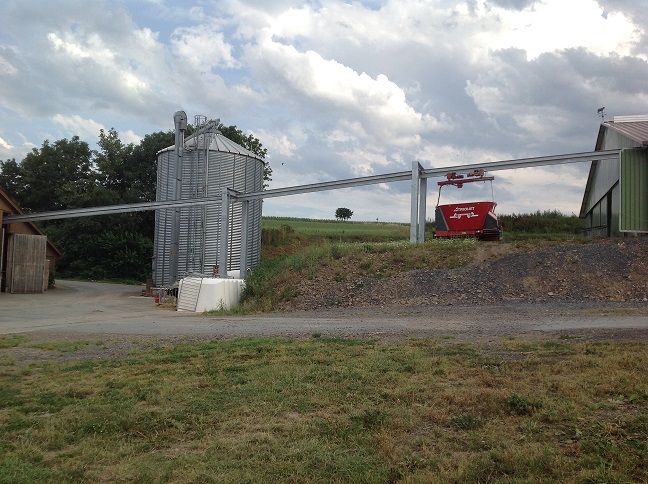

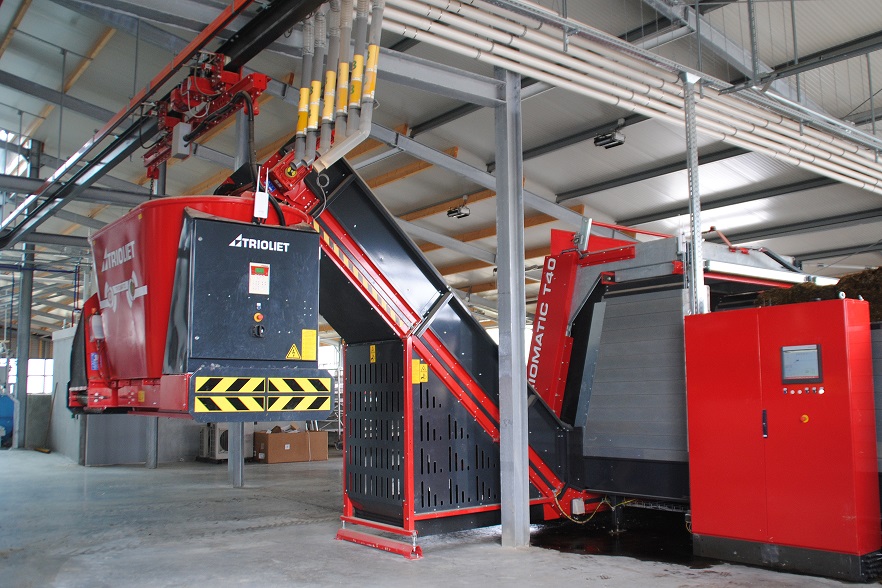

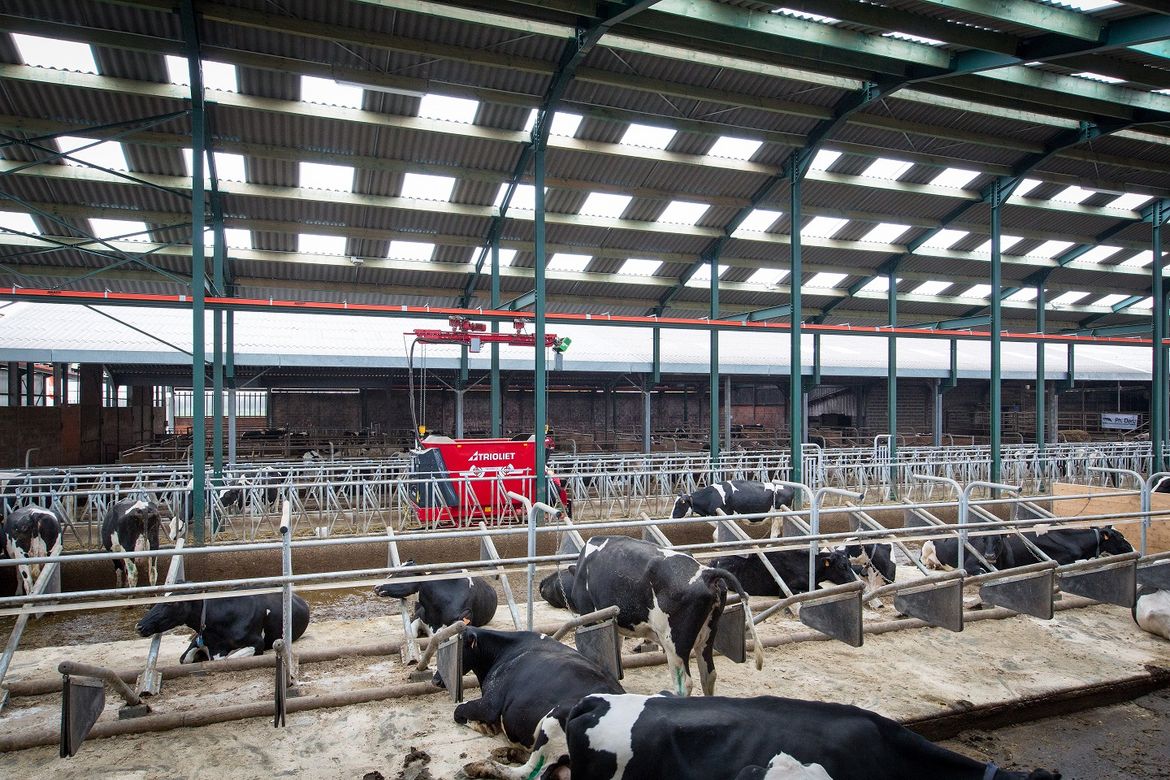

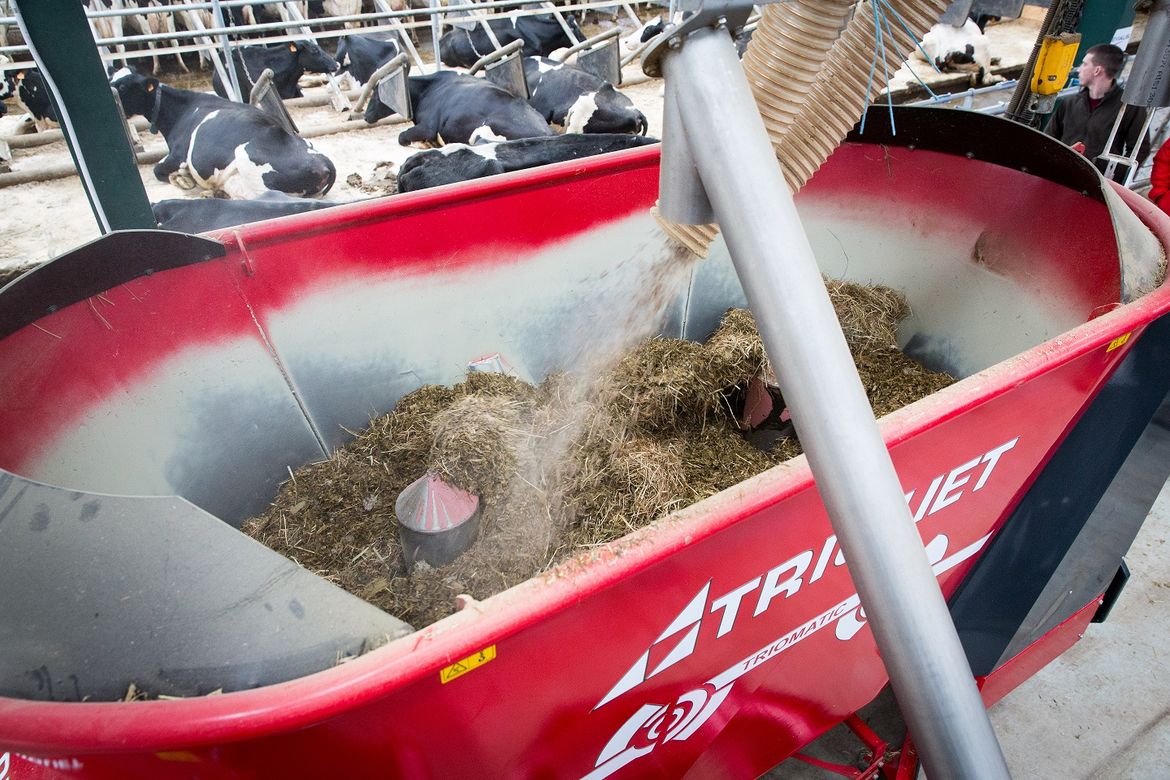

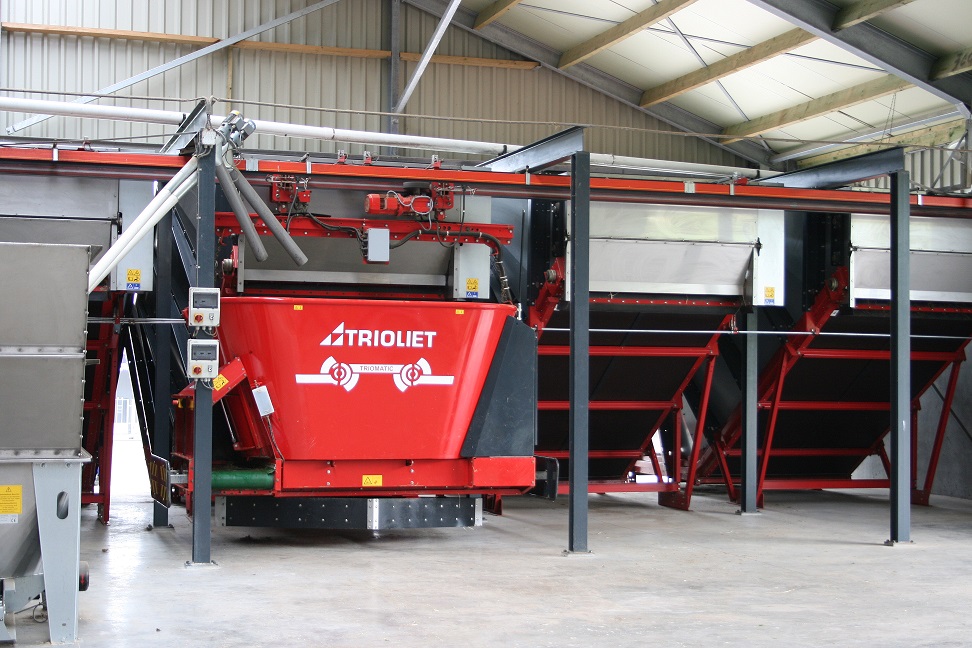

The Triomatic HP 2 300 is a suspended feeding robot. The robot moves around the barn using a suspension system, which is particularly handy if the robot has to be kept clear of the floor in some parts of the stable. This feeding robot can, in fact, be raised up in order pass over the stalls. This means the robot can also be used to scatter straw in the stalls. Because the Triomatic HP 2 300 feeding robot is suspended from a rail, the surface conditions are not relevant and the system does not depend on the weather conditions in outdoor areas. The Triomatic feeding robot has two vertical mixing augers, a cross conveyor belt capable of discharging on both left and right, and a volume of 110 cu.ft. In combination with a stationary feed mixer, a feed kitchen for blocks or bales, or storage bunkers for bulk feed, the feeding robot can be used as a fully automated feeding system. Wheel-based feeding robots are also available, such as the Triomatic WP 2 300 feeding robot on wheels.
Triomatic | HP 2 300 |
---|---|
Capacity cu.ft. | 110 |
Length | 142" |
Width | 53" |
Net weight Lbs. | 3.858 |
Maximum payload Lbs. | 1.984 |
Min. track height m | 110" |
Min. (net) feeding alley width | 2,40 |
Required connecting current A | 3x32 |
Required voltage V~ | 400 |
Max. standard track route gradient % | 2 |
Max. extra track route gradient (with rack and pinion drive) % | 14 |
