Solomix 2 stationary feed mixer for silage

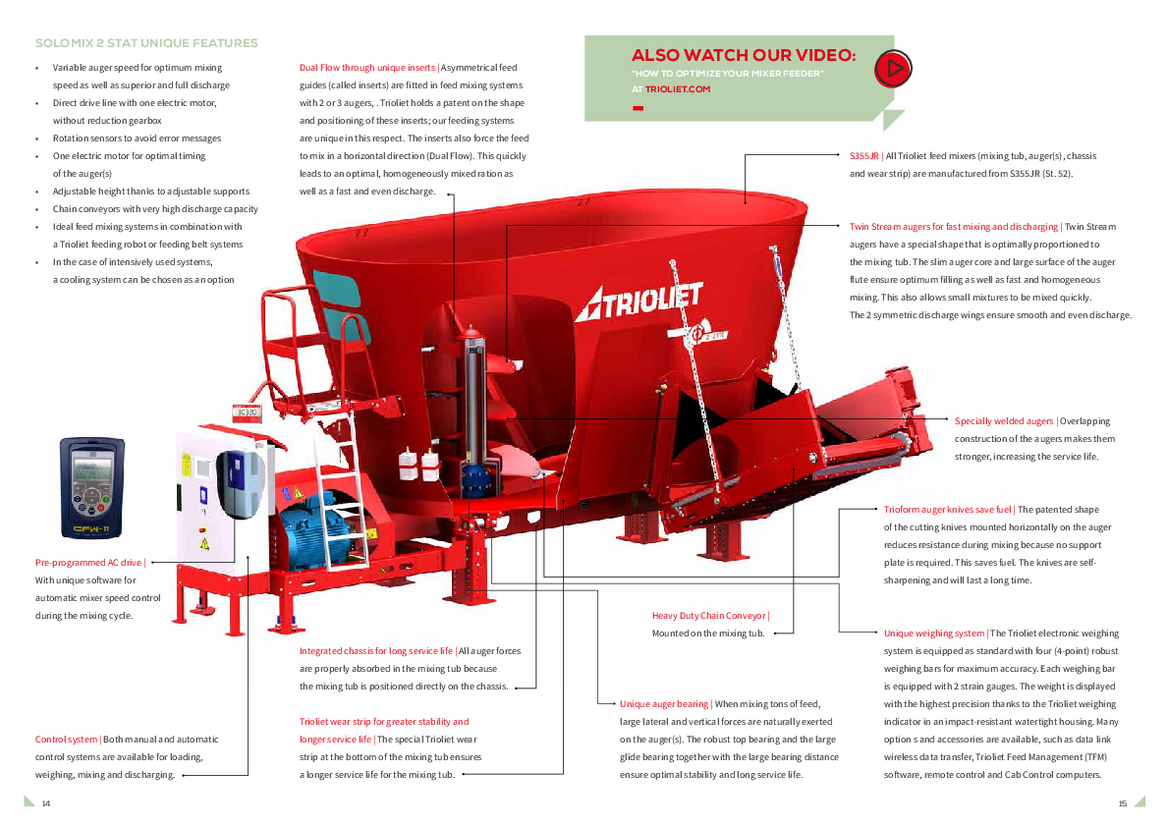

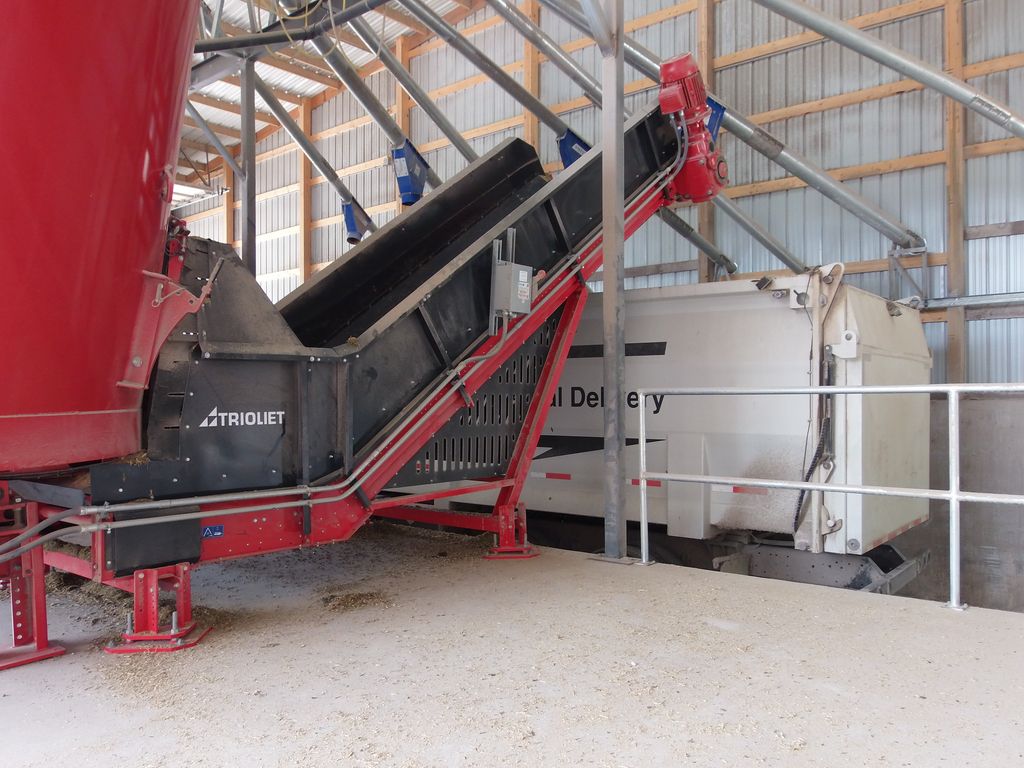

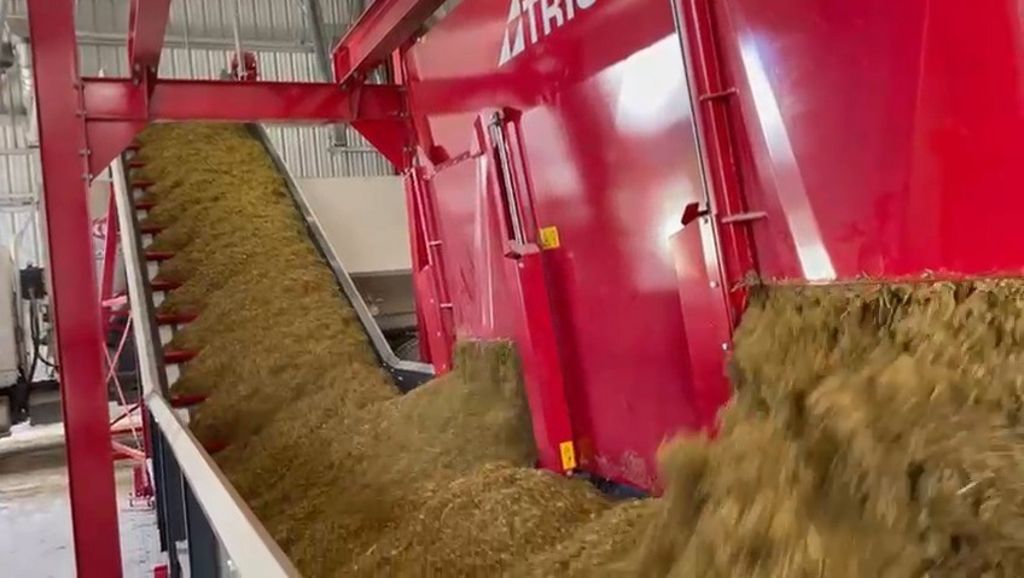

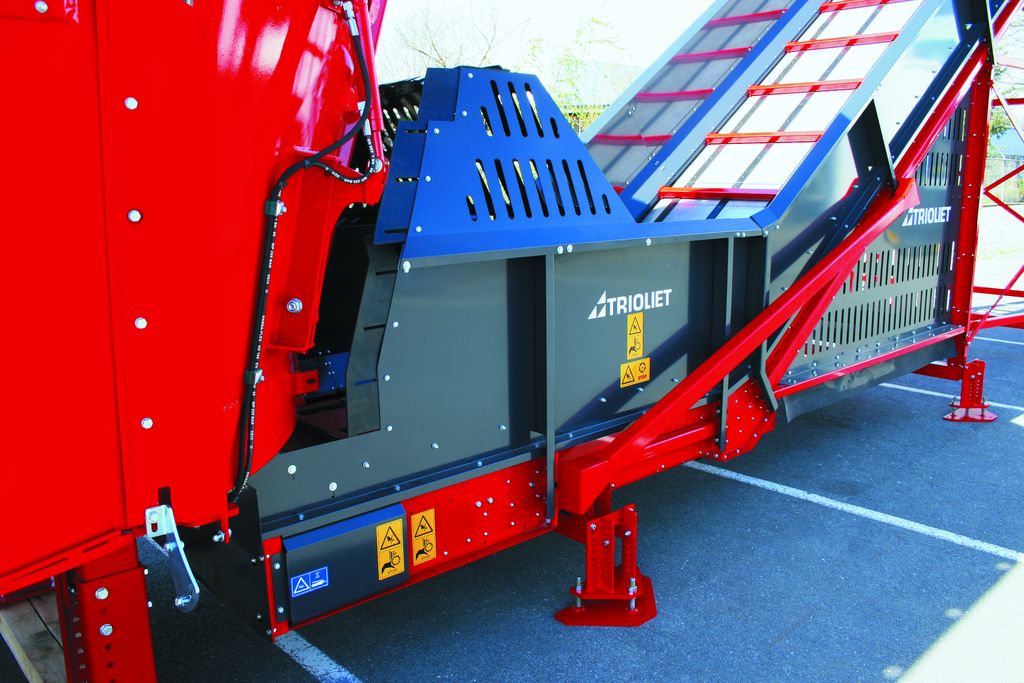

    The Solomix 2 STAT for feed is a stationary TMR mixer featuring two vertical augers. This feed mixer is suitable for large and small-scale livestock breeders and is available in volumes ranging from 424 - 1.150 cu.ft. (for m3 visit our English COM website). After mixing, the feed is transported to a feed wagon, robot, or belt system, by means of a chain or belt conveyor. Our patented ’Dual Flow’ system ensures the feed is perfectly mixed. Click here to learn about all the unique Solomix features.

    Read the testimonial: How to use automation in order to improve feeding accuracy and efficiency

    attributes

    Capacity 424 - 1150 cu.ft. (for m3 visit our English .com language website)
    Discharge type Front discharge (VL) /Side discharge door (ZK)

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video

      Standard features

      • Dismountable auger supports
      • One door of the E-motor
      • Wear ring (1600-3200)
      • Trioform auger knives short

      Technical specifications

      If you want the values in meters, please visit our English .com website, click here


      Solomix 2 stationary feed mixer for silage (VL)
      1200 VL  1600 VL 2000 VL 2000 VL C*** 2400 VL 2800 VL** 3200 VL HD
      Capacity cu.ft. 430 570 710 710 860 1000 1150
      Overall length (excl. motor)  167" 181" 206" 220" 225" 221" 258"
      Overall length (incl. motor)  208" 221" 248" 260" 260" 266" 291"
      Overall width  85" 90" 96" 90" 96" 108" 110"
      Overall height*  100-112" 112-124" 112-124" 100-112" 109-121" 121-133" 108-120"
      Nett weight without E-motor and frame Lbs 7.496 9.480 11.023 12.125 14.110 18.519 20.720
      Number of auger knife positions per auger 7 8 10 8 9 10 12
      Number of auger knives fitted 4 5 7 5 6 7 9
      Diameter of auger Ø 59" Ø 67 Ø 77 Ø 87 Ø 87 Ø 87 Ø 105
      Required electrical installation Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive

      .

      Solomix 2 stationary feed mixer for silage (ZK) 1200 ZK  1600 ZK 2000 ZK 2000 ZK C*** 2400 ZK 2800 ZK**
      Capacity cu.ft. 430 570 710 710 860 1000
      Overall length (excl. motor)  179" 198" 208" 220" 225" 244"
      Overall length (incl. motor)  219" 244" 249" 260" 260" 287"
      Overall width  87" 91" 93" 90" 96" 106"
      Overall height*  85-97" 96-108" 112-124" 100-112" 109-121" 108-120"
      Nett weight without E-motor and frame Lbs 7.496 9.921 11.464 12.125 13.779 17.196
      Number of auger knife positions per auger 7 8 8 8 9 12
      Number of auger knives fitted 4 5 5 5 6 9
      Diameter of auger Ø 71" Ø 77" Ø 77" Ø 87" Ø 87" Ø 96"
      Required electrical installation Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive Frequency drive

      * Supports are standard adjusted on 31,5'' height
      ** The 2800 VL and ZK are equipped with 7/8" auger flights
      *** Machine for containertransport

      If you want the values in meters, please visit our English .com website, click here
