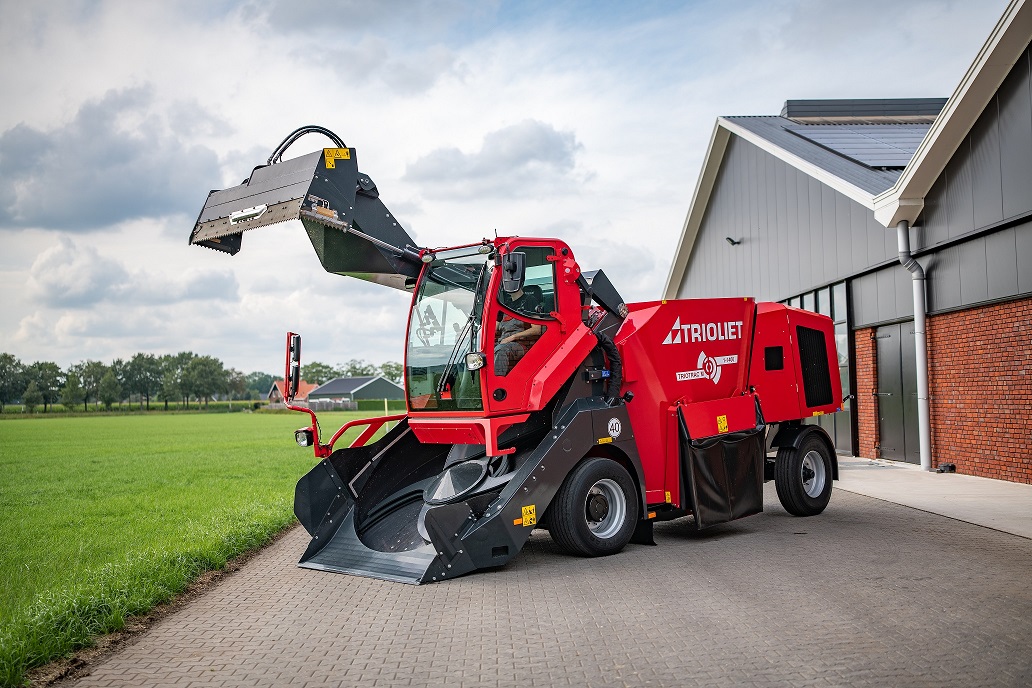

Triotrac M self-propelled feed mixer with loading rotor

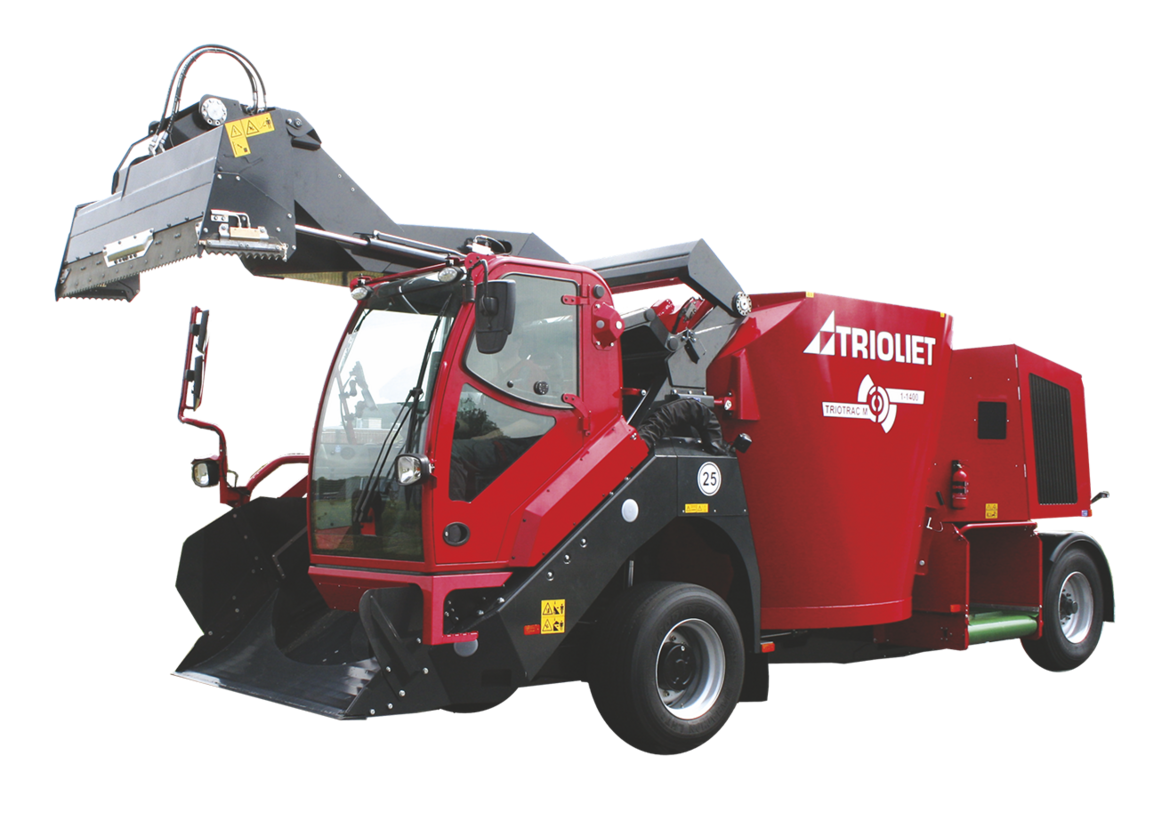

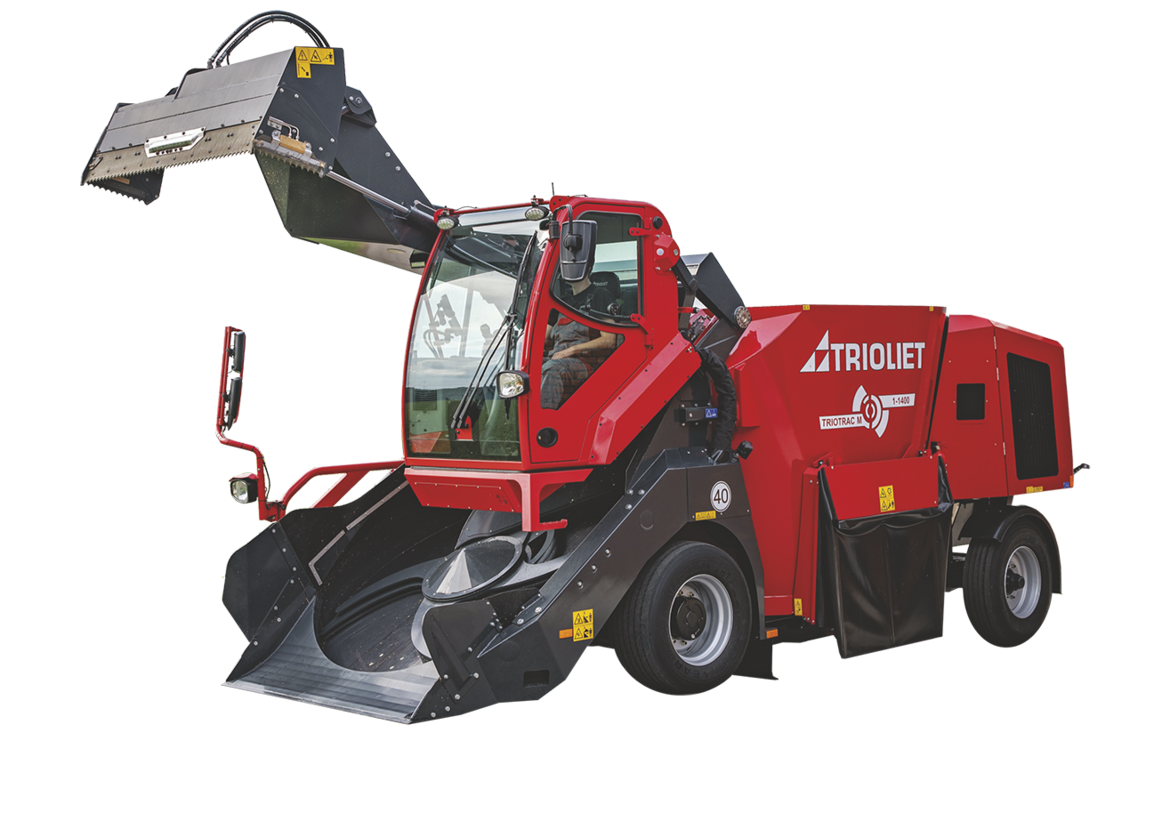

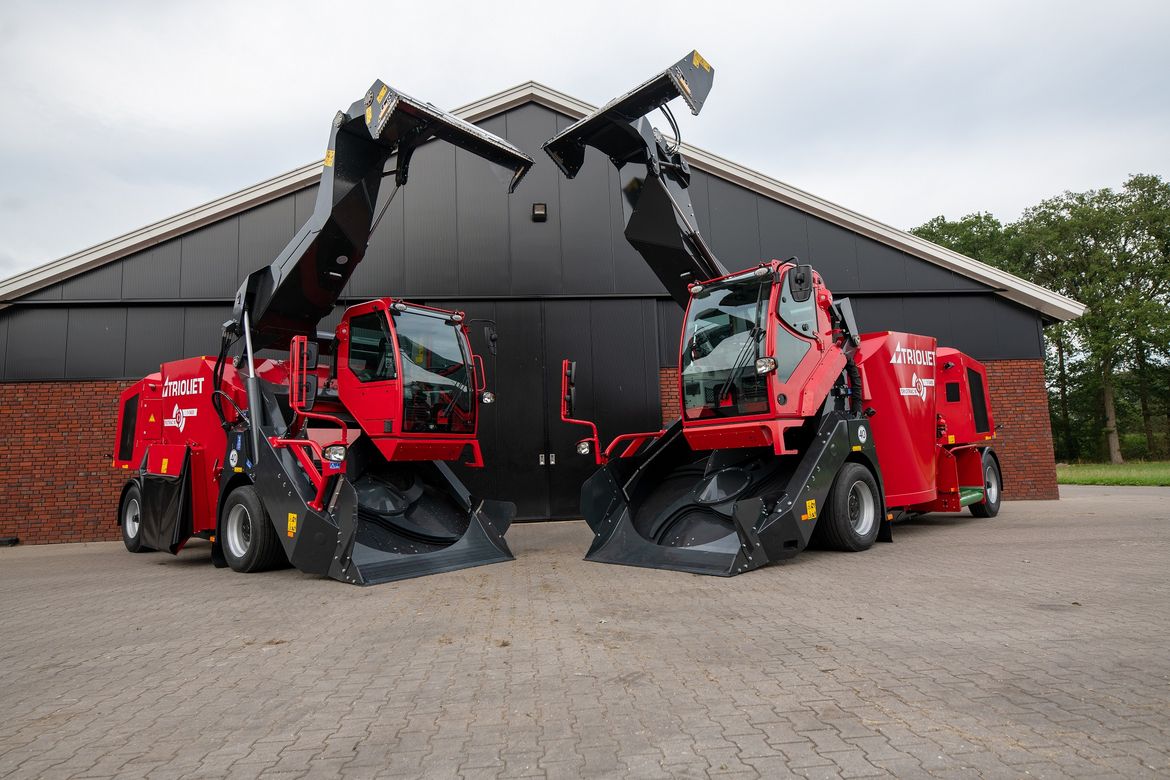

    The Triotrac M is a compact self-propelled cattle feed mixer with a single vertical auger. The feed is loaded into the loading rotor using a cutting/loading system, where it is simultaneously transported to the mixing tub. The compact self-propelled TMR mixer is extremely agile, making it suitable for low buildings and cramped yards. A small turning circle paired with four-wheel steering makes the Triotrac M especially easy to manoeuvre between buildings and in silage pits. The Triotrac M is available in 500 and 600 cu.ft.

    attributes

    Capacity 500 and 600 cu.ft.
    Discharge type Side discharge doors or discharge at the rear
    Model Self-propeller

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video

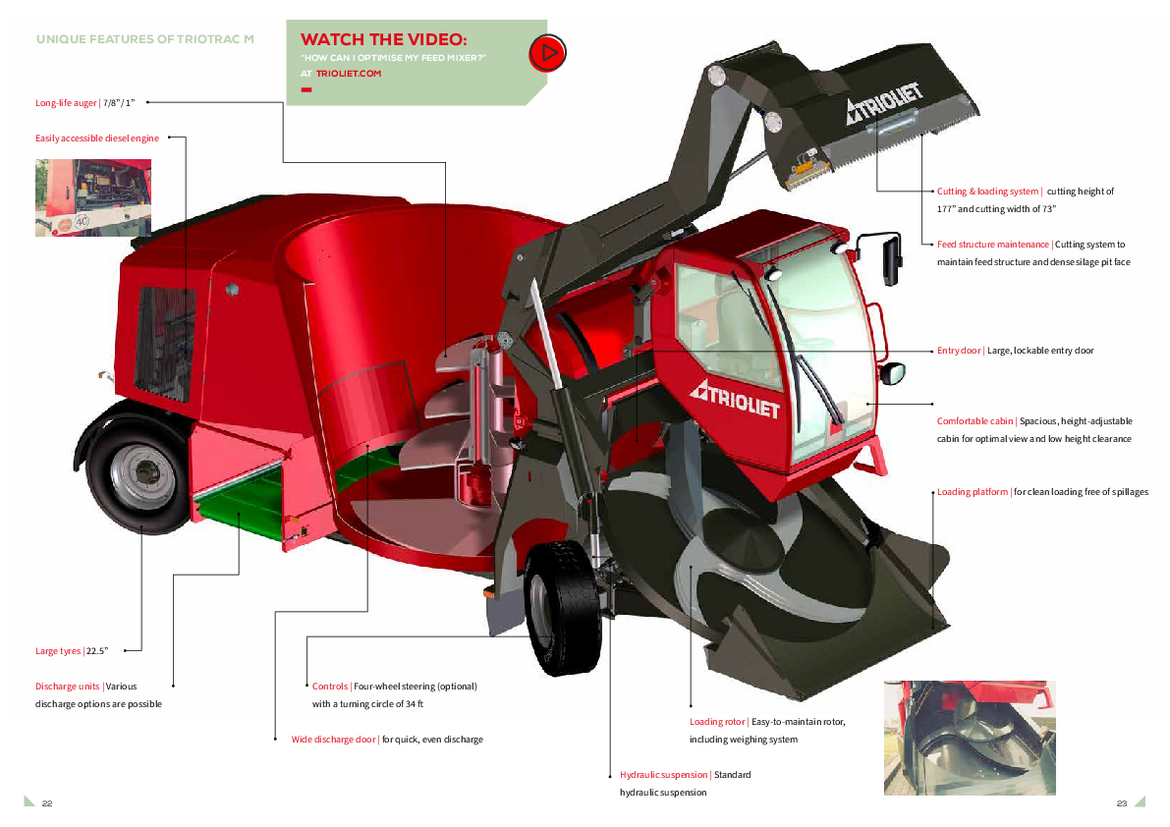

      Standard features

      • Long Life mixing auger with 22mm flighting and 25mm wings
      • Choice of discharge by a cross belt conveyor in the back or two side discharge doors in the mixing tub
      • Four-wheel drive front-wheel drive
      • Steered rear axle
      • Max. speed 35 km/h (mph)
      • In height adjustable cab for optimum view
      • Silo facing by cutting with curve correction for a vertical, clean and tight silo face without undercutting
      • Wear resistant loading rotor with variable speed regulation
      • Hydrostatic driven front axle with internal multi-disc brakes and hydraulic suspension
      • Comfortable cab with air-suspensioned seat, folding side-window, heating, radio, screen wipers all around, front shield heating
      • Optimally formed mixing chamber with a hydraulically driven vertical Twin Stream auger with variable speed regulation
      • Air suspension seat
      • Triotronic 7600T weighing computer with touch screen
      • Reverse safety camera and alarm signal
      • Joystick operation in armrest, programmable load- and discharge modes (to preset machinefunctions for different ingredients, rations and different stables)
      • Rimote system by WiFi
      • 1,85 m / 73" width cutting frame (U-shape)
      • Heated windscreen and electrically adjustable and heated mirrors
      • Trioform auger knives

      Technical specifications

      Triotrac M 1400 AL 1400 ZK 1700 AL 1700 ZK
      Capacity cu.ft. 500 500 600 600
      Overall length  317" 294" 317" 294"
      Overall width 100" 111" 100" 111"
      Overall height  110" 110" 126" 126"
      Silage cutting height max.  177" 177" 177" 177"
      Silage cutting width  73" 73" 73" 73"
      Silage cutting depth  16" 16" 16" 16"
      Max. speed for yard use km/h (mph) 20 (12) 20 (12) 20 (12) 20 (12)
      Max. speed during road transport km/h (mph) 35 (22) 35 (22) 35 (22) 35 (22)
      Tyre size, front 385/65
      R 22.5
      385/65
      R 22.5
      385/65
      R 22.5
      385/65
      R 22.5
      Tyre size, rear 315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
