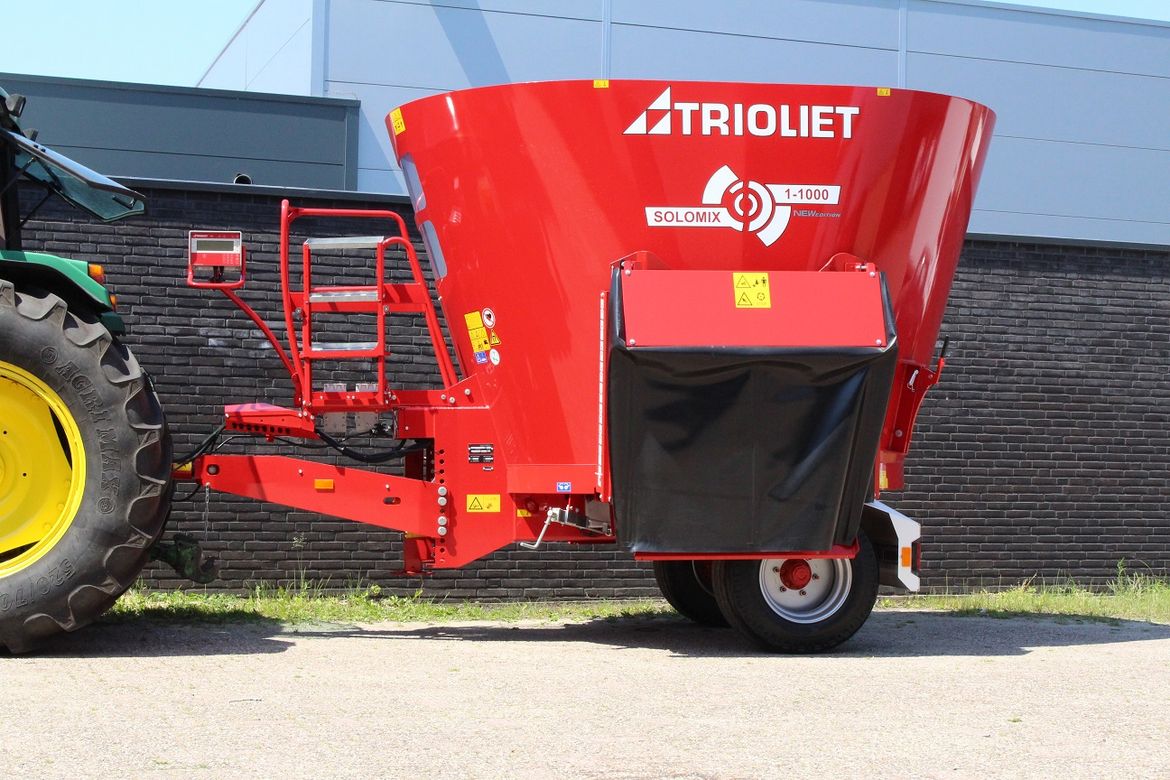

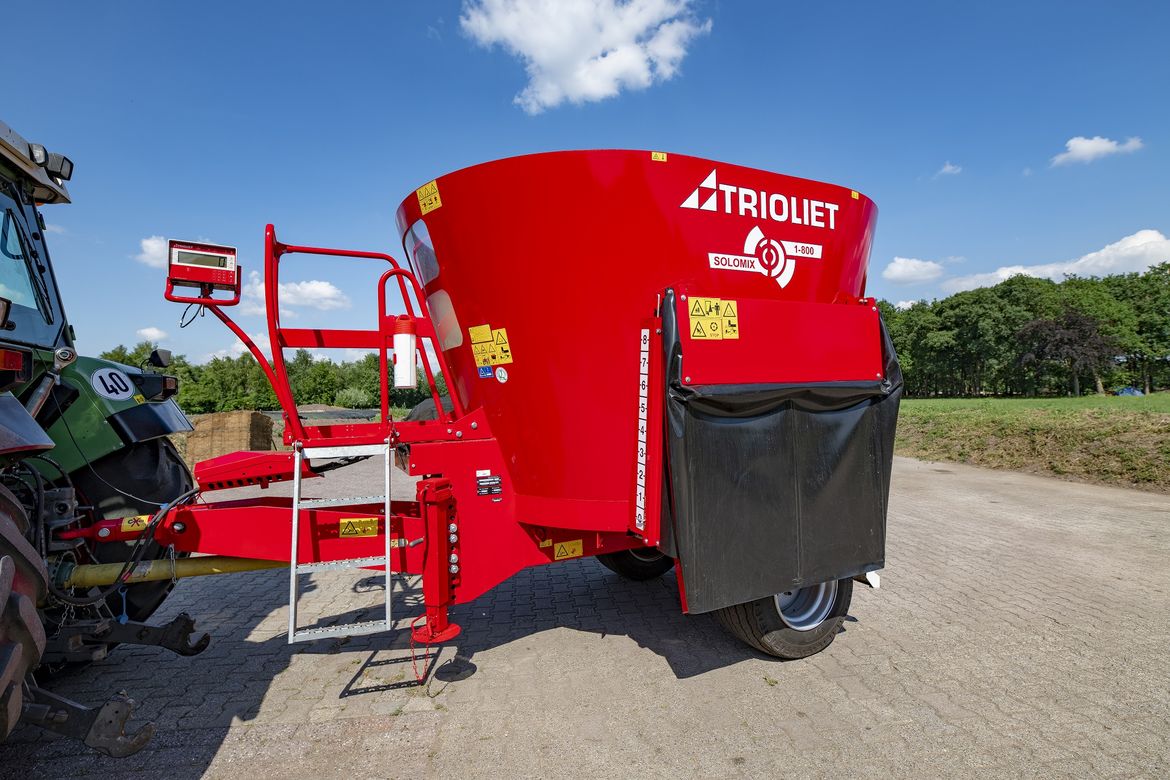

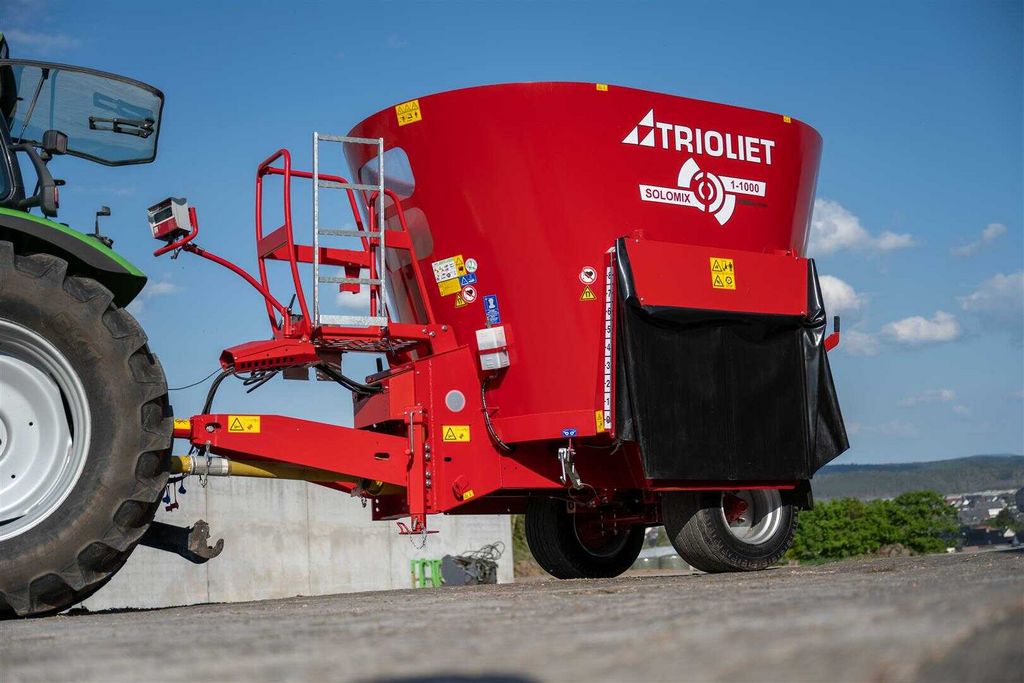

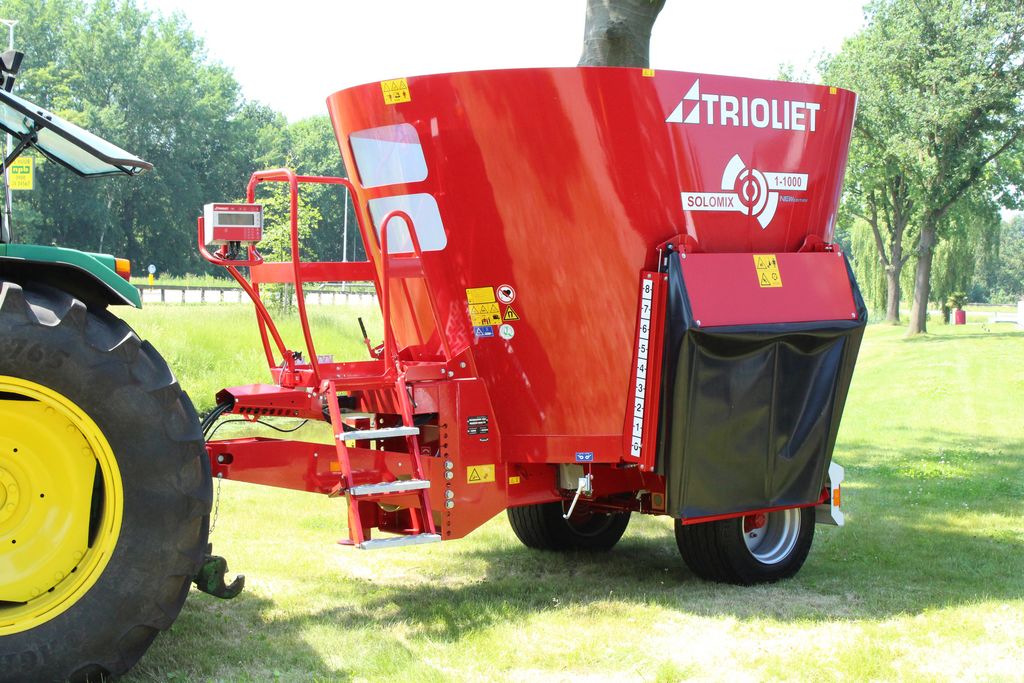

Solomix 1 ZK TMR mixer

    The renewed Solomix 1 ZK(L) is a compact diet feeder, featuring a single vertical auger and a hydraulic discharge slide on both sides. This trailed  TMR mixer is suitable for both large and small-scale livestock breeders and is available in volumes from 180-500 cu.ft. The Solomix 1 ZK is available in a range of different heights. The exceptional simplicity of this mixer feeder means any maintenance costs are minimal, while the machine is furthermore extremely easy to use. Click here to learn about all the unique Solomix features or read more about the importance of the correct loading order for well-mixed rations.

    Capacity 180-500 cu.ft.
    Discharge type Side discharge door
    Model Trailed
    Strawblower No

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors

      Share

      Photos

      Video

      Standard features

      • Unique one auger system
      • One Twin Stream auger (5/8"flighting / 3/4" wings) for quick mixing and superior discharge
      • Hand jack
      • Low fixed drawbar with clevis
      • Constant velocity PTO shaft
      • Flexible and spacious side door covers (700/900)
      • One manual operated restrictor blade
      • Hydraulic brake system (not for 500 ZK)
      • Two wide wheels
      • Two large side doors actuated by one (500) or two cylinders (700/900)
      • Side doors with rounded edges for better discharge (700/900)
      • Manual adjustable steel discharge chutes (700/900), or fixed rubber chute (500)
      • Rubber side door covers (500)
      • Right, left or dual discharge
      • To be connected directly to tractor hydraulics
      • Wear ring
      • Trioform auger knives short
      • New platform with stairs and windows (700/900)
      • New in height adjustable arm for the weighing indicator

      Technical specifications

      Solomix 1 ZK 500 700 800 900  1000 1000L  1200 1200L 1300L 1400 1400 C
      Capacity cu.ft. 180 250 280 320 350 350 430 430 465 500 500
      Overall length  164" 170" 178" 174" 181" 187" 184" 191" 197" 194" 197"
      Overall Width  86" 90" 97" 90" 97" 106" 97" 106" 119" 106" 103"
      Overall height  85" 94" 98" 109" 109" 98" 117" 109" 100" 119" 119"
      PTO RPM 540 540 540 540 540 540 540 540 540 540 540
      Tractor power requirement HP (kW) 55 (40) 55 (40) 66 (48) 60 (44) 68 (50) 75 (55) 75 (55) 82 (60) 85(62) 82 (60) 82 (60)
      Tire size (2x) 10.0/75-15.3

      340/55-16 400/45
      L 17.5
      340/55-16 400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5

      * Alternative height dimensions are available on request. Ask your dealer about the availble options.
