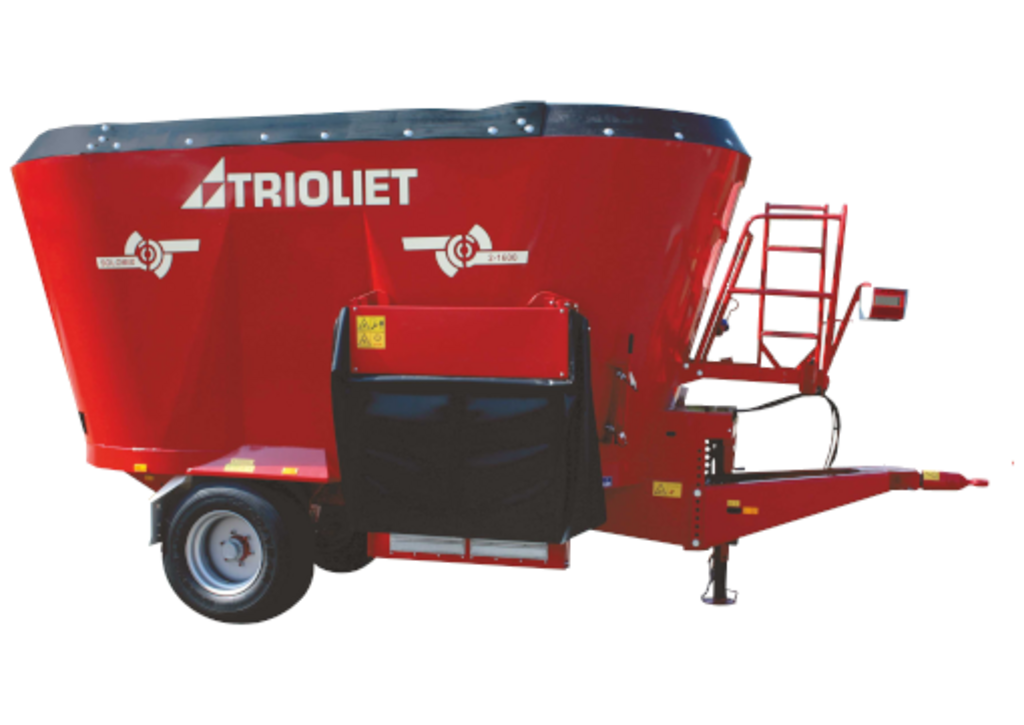

Solomix 2 ZK Feed mixer
The renewed Solomix 2 ZK is a compact feed mixer with two vertical augers and a hydraulic discharge slide on both sides. This trailed diet feeder is suitable for both large and small-scale livestock breeders and is available in volumes from 430-1000 cu.ft. The Solomix 2 ZK is available in a range of different heights and various discharge options are available for the Solomix 2 series, including to the front (VL) or rear (AL) of the mixer. Learn more about the unique features of our Solomix feed mixers by clicking the link.
Standard features
- Two Long Life Twin Stream augers (22 mm fighting / 25 mm wings)

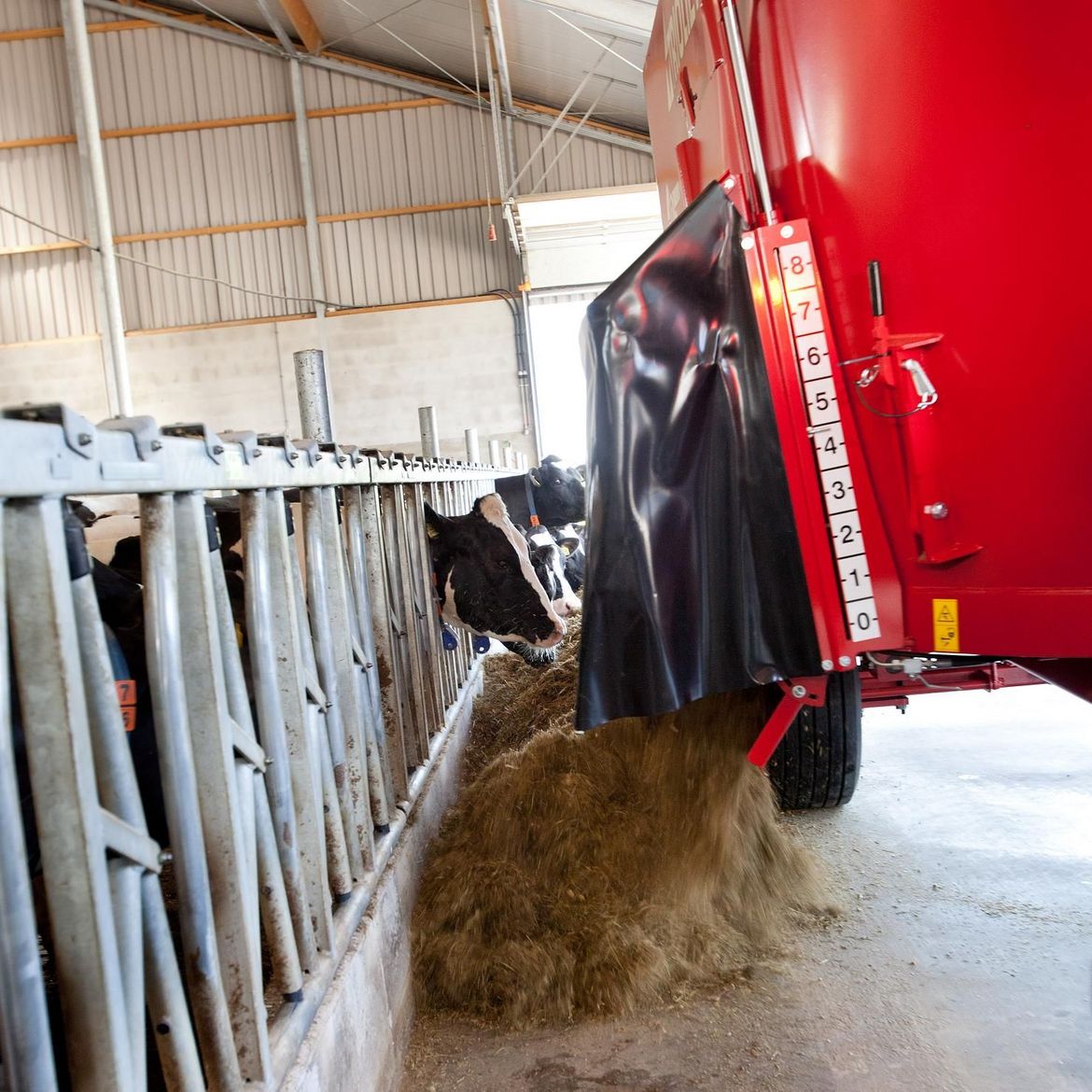

- Two side discharge doors with rounded edges for better discharge in front
- Manual adjustable discharge chutes
- Flexible and spacious side door covers
- Two restrictor blades
- Hydraulic brakes
- Trioform auger knives short
- Wide-angle PTO shaft with 1 3/8"-6 profile
- Two large single wheels
- Adjustable and reversible drawbar with 40 mm drawbar eye (European standard)
- 540 RPM drive line (1600L-2400) or a 540/1000 RPM drive line (2400L-2800)
- Window in front of the mixing tub
- Directly operated by tractor hydraulics
- Wear ring

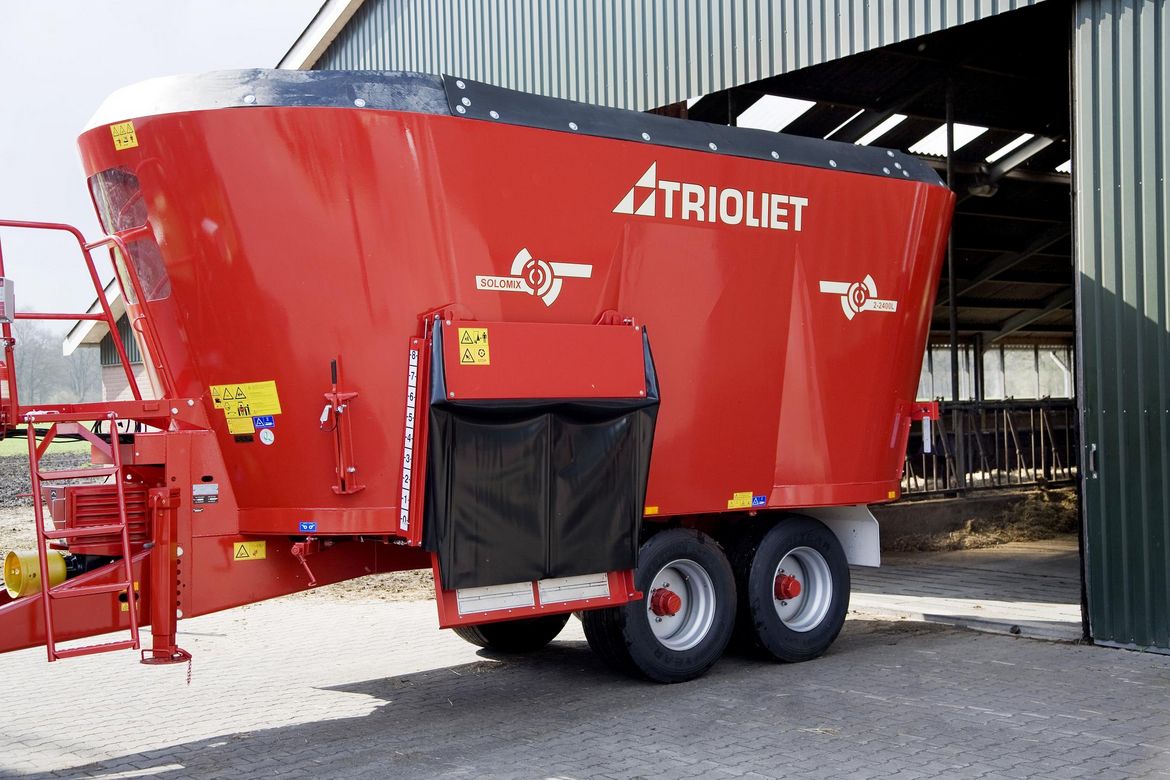

- Walking tandem axle with four single wheels (ZK-T)
- Hydraulic brake system with parking brake (ZK-T)
- New platform with stairs and windows
- New in height adjustable arm for weighing indicator
- New protection and cover for hydraulic hoses and wires with storage possibility
Technical specifications
| Solomix 2 ZK | 1200 | 1400 | 1500 | 1600 | 1600L | 1800 | 2000 | 2000L | 2200 | 2400 | 2400L | 2600 | 2800 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity cu.ft. | 430 | 500 | 540 | 570 | 570 | 650 | 715 | 715 | 790 | 860 | 860 | 930 | 1000 |
| Overall length | 238" | 241" | 254" | 255" | 272" | 274" | 276" | 291" | 277" | 278" | 294" | 295" | 297" |
| Width outside tires | 67" | 71" | 75" | 75" | 84" | 84" | 84" | 84" | 84" | 84" | 84" | 91" | 91" |
| Overall height | 99"* | 108" | 104"* | 109" | 106"* | 111"* | 119" | 106"* | 123" | 127" | 117" | 124" | 128" |
| PTO Drive | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540/1000 | 540/1000 | 540/1000 |
| Tractor power requirement HP (kW) | 82(60) | 82(60) | 85(62) | 85(62) | 102(75) | 102(75) | 102(75) | 112(82) | 105(77) | 109(80) | 120(88) | 125(92) | 140(103) |
| Tire size (2x) | 400/45 L 17.5 | 400/45 L 17.5 | 235/75 L 17.5 | 235/75 L 17.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 275/70 R 22.5 | 275/70 R 22.5 |
.
| Solomix 2 ZK-T | 1600L ZK-T | 1800 ZK-T | 2000 ZK-T | 2000L ZK-T | 2200 ZK-T | 2400 ZK-T | 2400L ZK-T | 2600 ZK-T | 2800 ZK-T |
|---|---|---|---|---|---|---|---|---|---|
| Capacity cu.ft. | 570 | 650 | 715 | 715 | 790 | 860 | 860 | 930 | 1000 |
| Overall length | 268" | 274" | 276" | 291" | 277" | 278" | 294" | 295" | 297" |
| Width outside tires | 78" | 78" | 78" | 78" | 78" | 78" | 78" | 78" | 86" |
| Overall height | 107"* | 113"* | 120" | 108"* | 124" | 129" | 119" | 124" | 128" |
| PTO Drive | 540 | 540 | 540 | 540 | 540 | 540 | 540/1000 | 540/1000 | 540/1000 |
| Tractor power requirement HP (kW) | 102(75) | 102(75) | 102(75) | 112(82) | 105(77) | 109(80) | 120(88) | 125(92) | 140(103) |
| Tire size (4x) | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 |
Alternative height dimensions are available on request. Ask your dealer about the available options.
* Note: side door will rise 8,7" (1200 ZK) respectively 3,9" (1500 ZK) above the tub when completely opended.
* Note: side door will rise 7,5" (1600L ZK), 2,8" (1800 ZK) respectively 7,9" (2000L ZK) above the tub when completely opened.
