Solomix 1 VLH Feed mixer

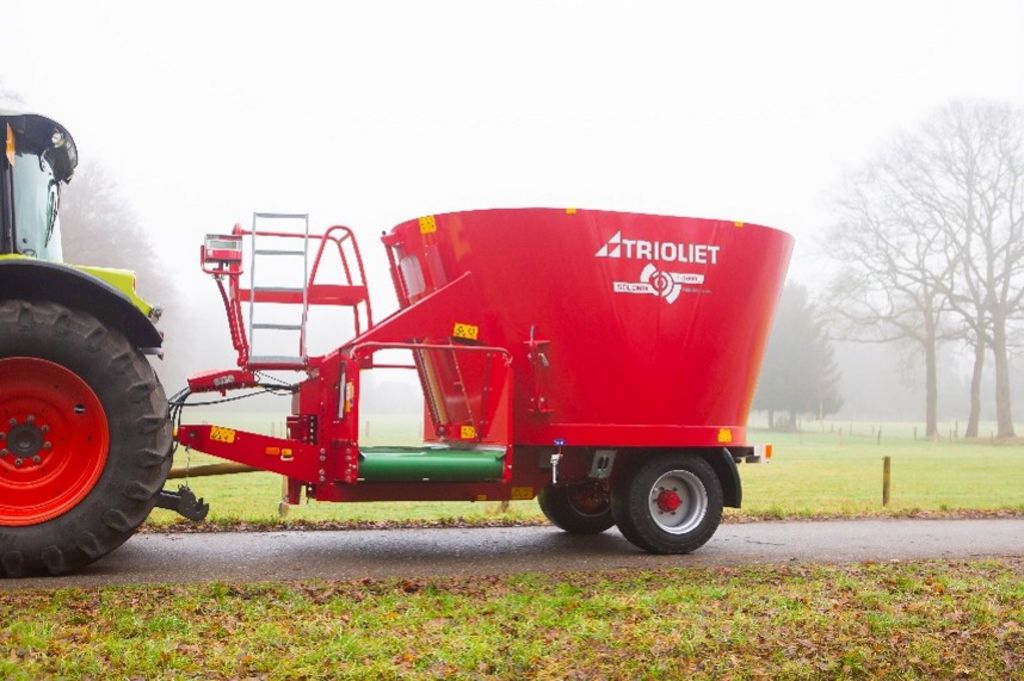

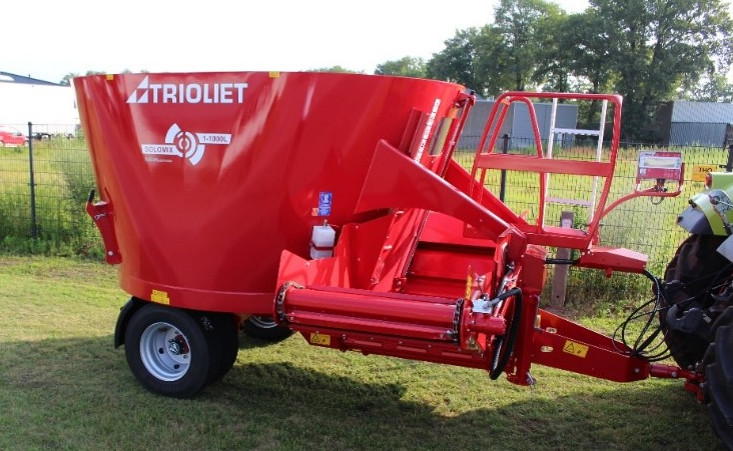

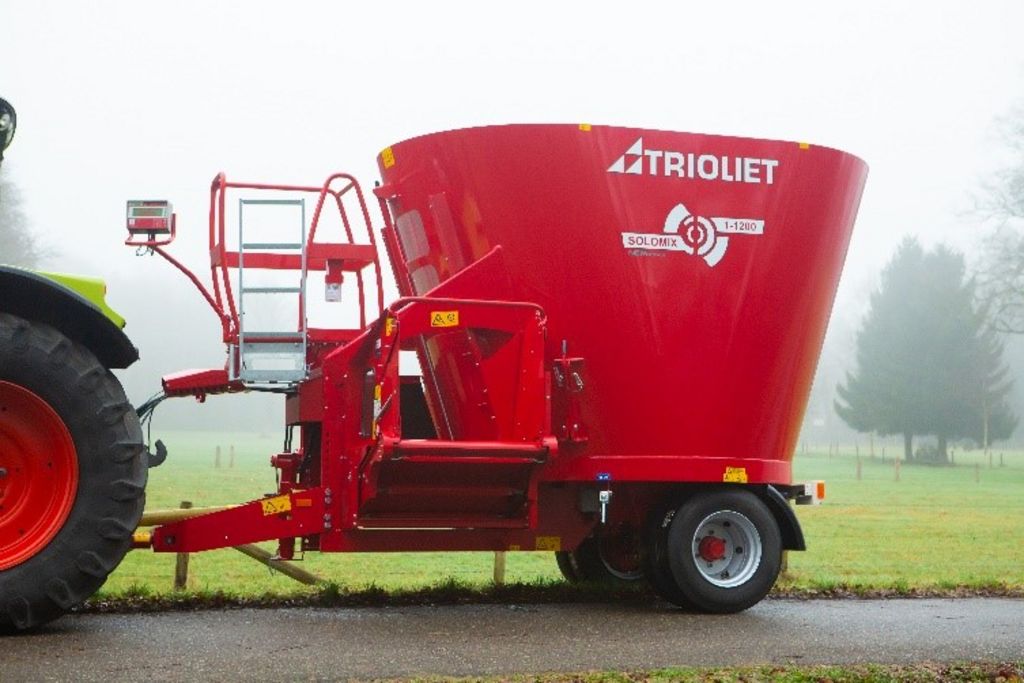

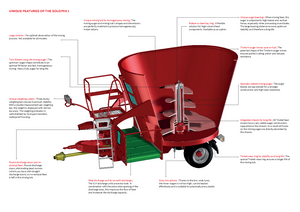

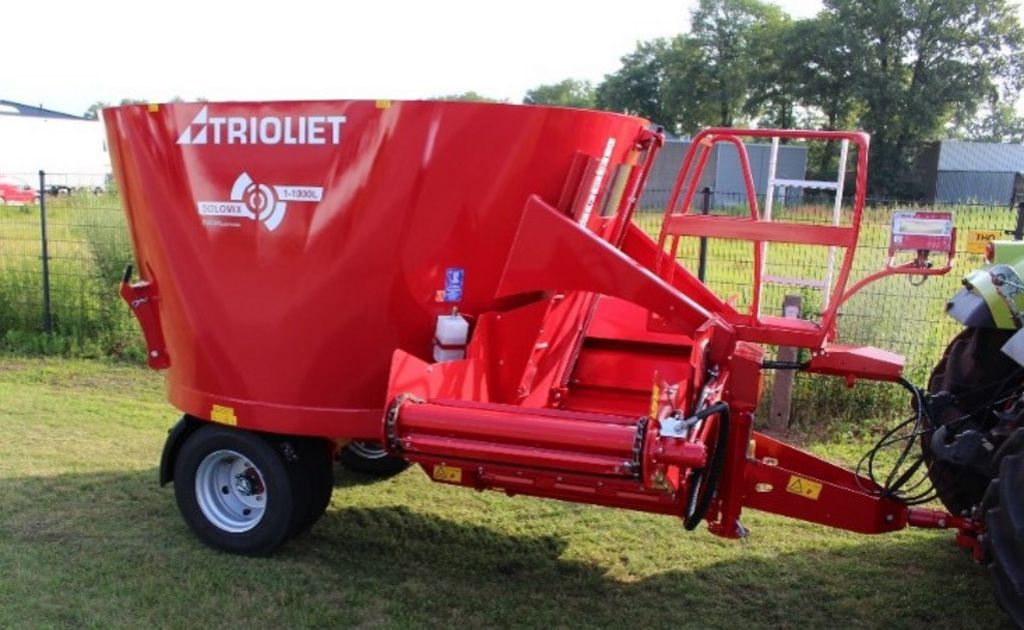

    The Solomix 1 VLH-B is a compact diet feeder, featuring a single vertical auger and a cross conveyor belt in the front. The mixer wagon is also available with a curved (C) cross conveyor chain (K). This trailed TMR mixer is suitable for both large and small scale livestock breeders and is available in volumes from 280-500 cu.ft. The Trioform auger knives are mounted at horizontal position on the auger flighting. This ensures an optimum cutting performance with less resistance in the feed (fuel saving). The patented Trioform auger knives are self-sharpening and the special shape lead up to a higher strength and long life. Its specific characteristics and high quality make the mixer feeder wagon unique, efficient and very easy to work with. Click here to learn about all the unique Solomix features.

    Capacity 280-500 cu.ft.
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • B = Synthetic conveyor belt

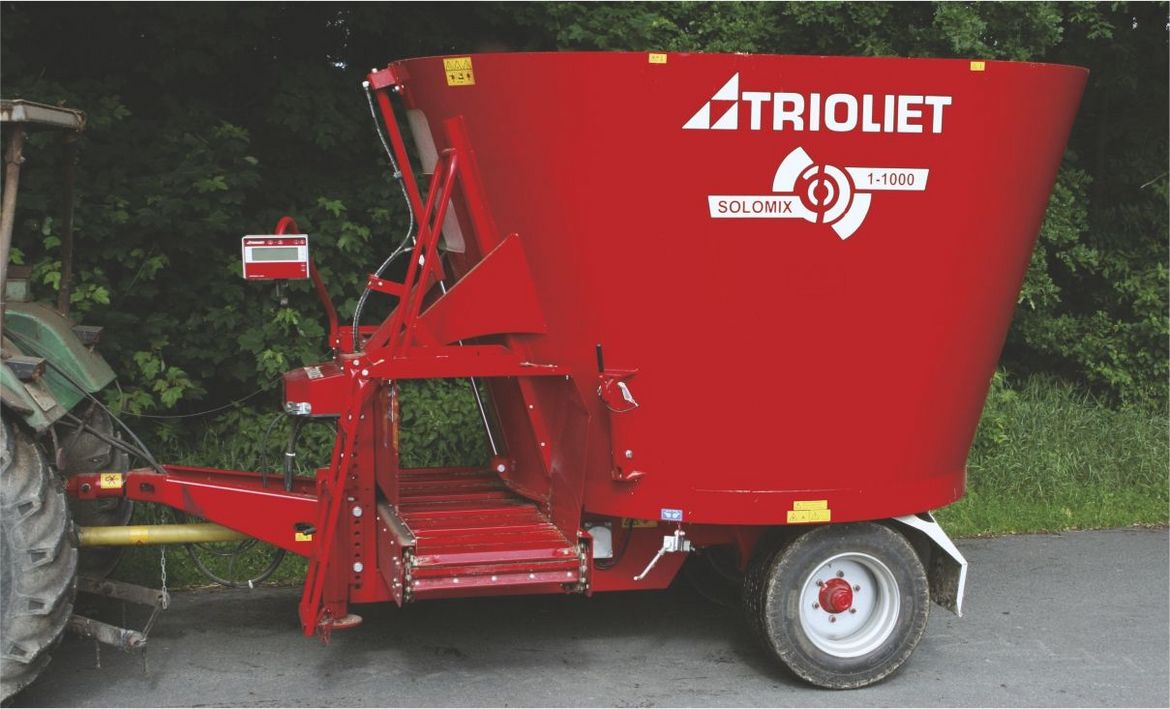

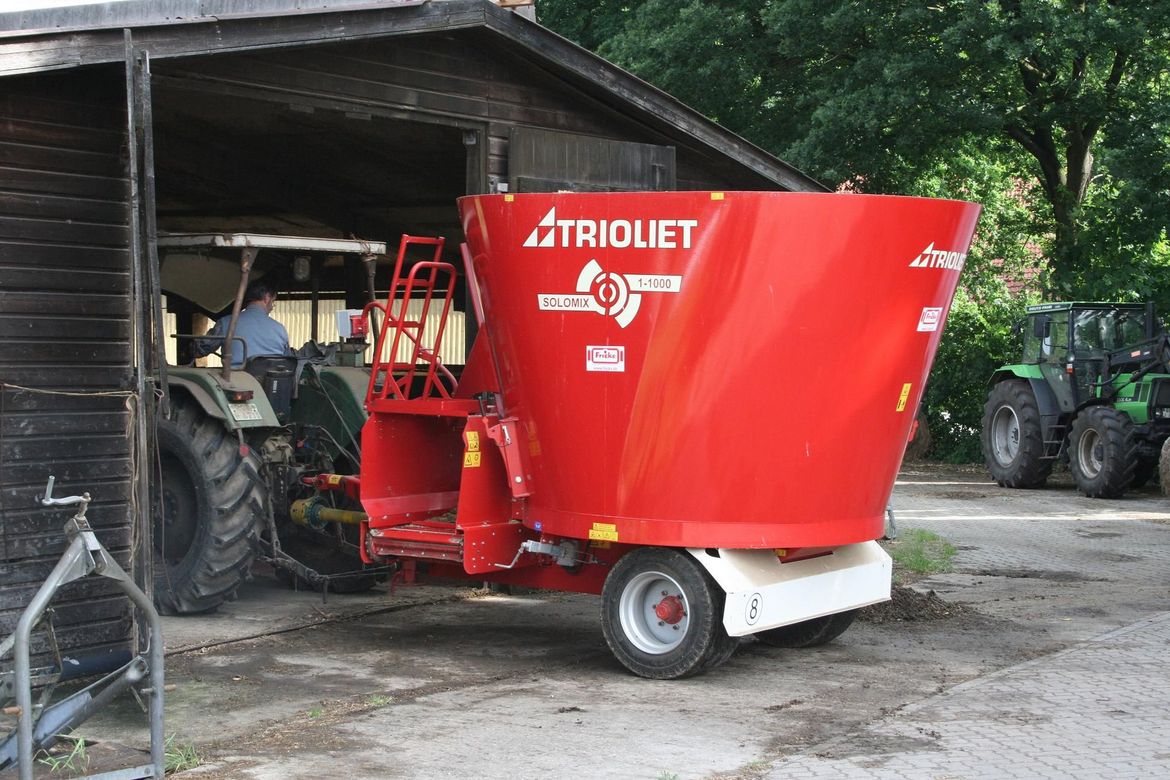

      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors

      Share

      Photos

      Video

      Standard features

      • Unique one auger drive system
      • One Twin Stream auger (5/8"flighting / 3/4" wings) for quick mixing and superior discharge
      • Hand jack
      • Low drawbar with clevis
      • Constant velocity PTO shaft
      • Two manual operated restrictor blades
      • Trioform auger knives short
      • Wear ring
      • Hydraulic brake system
      • Two wide wheels
      • Large door opening at front
      • Heavy Duty planetary drive
      • Remote control by bowden cable operation

      Technical specifications

      Solomix 1 VLH 800 1000 1000L 1200 1200L 1400
      Capacity cu.ft. 280 350 350 430 430 500
      Overall length  187" 190" 196" 192" 200" 203"
      Width outside tires 75" 75" 83" 75" 83" 83"
      Overall height*  98" 109" 98" 116" 109" 119"
      PTO RPM 540 540 540 540 540 540
      Tractor power requirement HP (kW) 66 (48) 68 (50) 75 (55) 75 (55) 82 (60) 82 (60)
      Tire size (2x) 400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5
      400/45
      L 17.5

      ​​​​* Alternative height dimensions are available on request. Ask your dealer about the available options.
