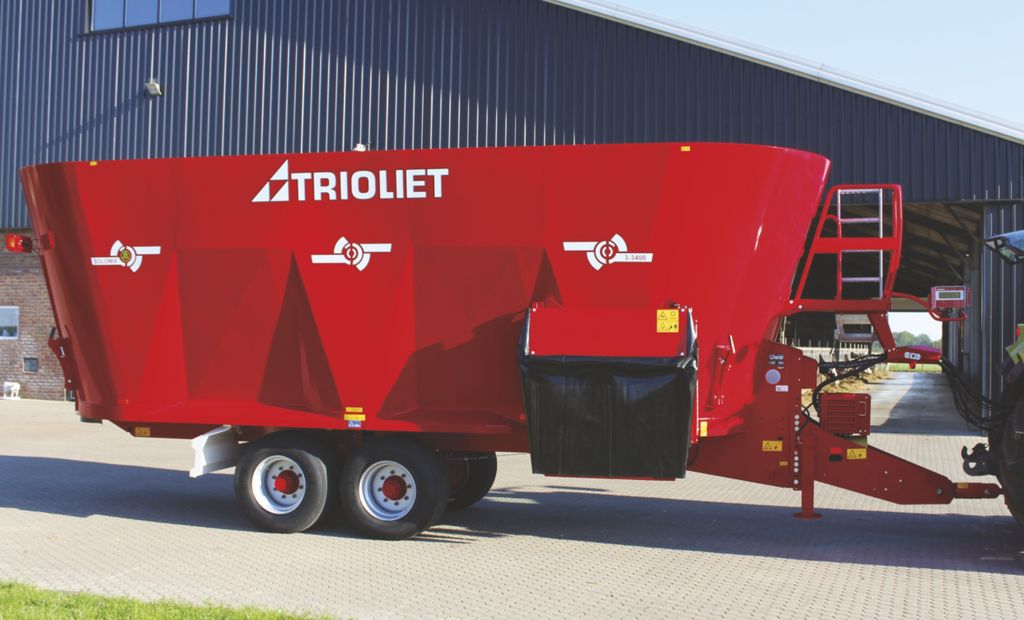

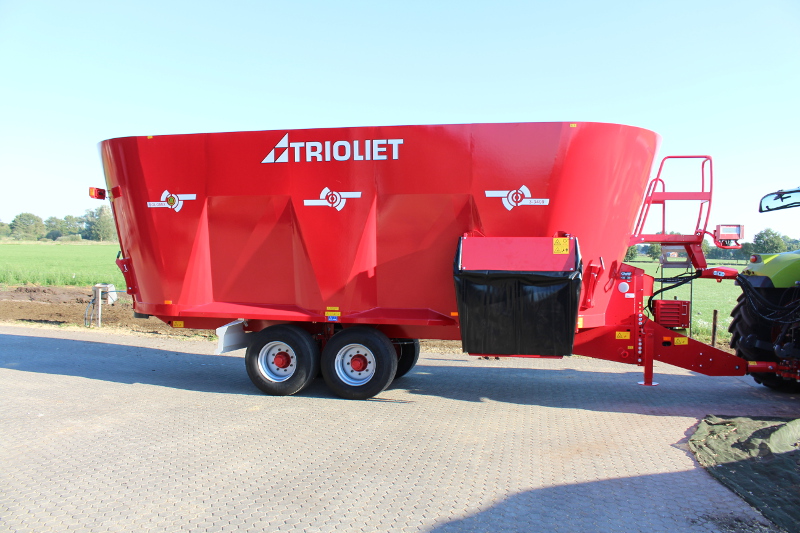

Solomix 3 ZK Feed mixer
The renewed Solomix 3 ZK is a mixer feeder with three vertical mixing augers and two side discharge slides (front left and right). The machine is available with a capacity of 965, 1075 and 1220 cu.ft. Its characteristic features, such as a specially shaped mixing chamber, made-to-measure augers, an adjusted auger speed and exceptionally high quality, ensure reliability, healthy cattle and savings in terms of time and costs. Click here to learn about all the unique Solomix features.
Standard features
- 540 RPM drive line
- Three Twin Stream augers (7/8" flighting / 1" wings)
- Two reversible restrictor blades
- Wide-angle PTO-shaft with shearbolt
- Adjustable and reversible drawbar with cat. III hitch ring
- Tandem axle with 4 single wheels
- Two side discharge doors with rounded edges for better discharge in front
- Manual adjustable discharge chutes
- Flexible and spacious side door covers
- Directly operated by tractor hydraulics
- Hydraulic brake system with parking brake
- Wear ring
- Trioform auger knives short
- Dual Flow: improved shape of the mixing tub and offset inserts
- New platform with stairs and windows
- New, in height adjustable arm for the weighing indicator
- Reduction gearbox standard with cooling system (2700L/3000L/3400)
- Tandem axle with 4 single wheels (2700L/3000L/3400)
- Windows in front of the mixing tub (2700L/3000L/3400)
- Intended to be used up till 8 loads per day (2700L/3000L/3400)
Technical specifications
| Solomix 3 ZK | 2700L | 3000 | 3000L | 3400 |
|---|---|---|---|---|
| Capacity cu.ft. | 965 | 1075 | 1075 | 1220 |
| Length | 369" | 336" | 372" | 374" |
| Width | 100" | 100" | 100" | 100" |
| Height | 114" | 130" | 122" | 132" |
| PTO RPM | 1000 | 540 | 1000 | 1000 |
| Tractor power requirement HP (kW) | 140 (103) | 130 (95) | 150 (110) | 160 (117) |
| Tyre size (4 x.) | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 | 435/50 R 19.5 |
* Wagons in alternative heights are available on request.
