Solomix 2 VLL TMR mixer

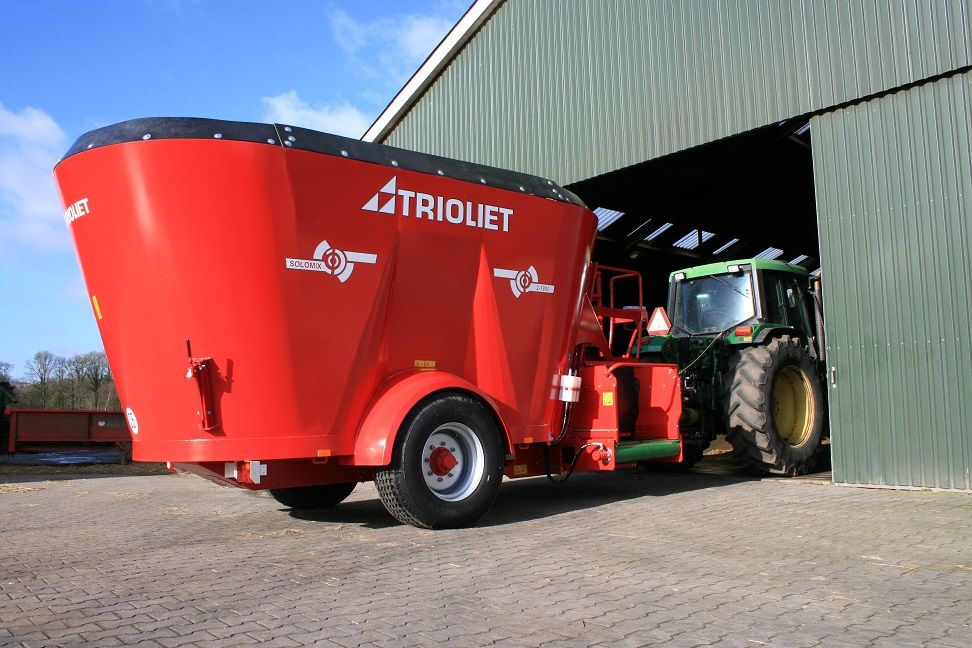

    New design feed mixer with 2 augers and a cross conveyor belt (B) or cross conveyor chain (K) at the front (or optionally at the rear). There are also options for a feed trough such as a curved cross conveyor chain at the front with side shift (C) or a cross conveyor chain in combination with a retractable extension chain (S). This type of machine has a deep mixing tub. The wheels are positioned next to the mixing tub. This keeps the machine relatively low, so it is suitable for low stables. The new design of the mixing tub enables mixing in both a horizontal and vertical direction, the so-called Dual Flow principle. Click here for an overview of the unique characteristics of our feed mixers

    attributes

    Capacity 350-1000 cu.ft.
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Unique two auger drive system
      • Two Twin Stream augers (5/8"flighting / 3/4" wings) for quick mixing and superior discharge (1000/1200)
      • Hand jack
      • Adjustable open and low drawbar with clevis
      • Two manual operated restrictor blades
      • Two Long Life Twin Stream augers (7/8" flighting / 1" wings) for quick mixing and superior discharge (1200L-2800)
      • Hydraulic brake system
      • Constant velocity PTO shaft
      • Two large wheels
      • Large door opening
      • Cross conveyor belt at front for discharge at both sides, RHS or LHS (w=30") (1000/1200)
      • Two Heavy Duty planetary drives
      • Wear ring
      • Remote control by bowden cable operation
      • 1000 RPM reduction gearbox with cooling system (2800)
      • Trioform auger knives short
      • Dual Flow: improved shape of the mixing tub and offset inserts (1200L-2800)
      • Larger discharge door with rounded edges for better discharge (1200L-2800)
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility (1200L-2800)
      • Two windows in discharge unit (1200L-2800)

      Technical specifications

      Solomix 2 VLL 1000 1200 1200L 1400  1600 1600L 1800 2000 2000L 2400 2800
      Capacity cu.ft. 350 430 430 500 570 570 650 715 710 860 1000
      Overall length  219" 222" 256" 259" 261" 279" 281" 283" 299" 302" 306"
      Width outside tires 84" 85" 90" 90" 90" 96" 96" 96" 112" 112" 112"
      Overall height  94" 105" 97" 109" 116" 102" 108" 116" 109" 118" 132"
      PTO RPM 540 540 540 540 540 540 540 540 540 540 1000
      Tractor power requirement HP (kW) 66 (48) 66 (48) 75 (55) 75 (55) 82 (60) 85 (62) 85 (62) 96 (70) 102 (75) 109 (80) 120 (88)
      Tire size (2x)  315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      315/80
      R 22.5
      19,5
      R 22.5
      19,5
      R 22.5
      19,5
      R 22.5

      * Width dimensions vary according to discharge unit.
      Alternative height dimensions are available on request. Ask your dealer about the available options.
