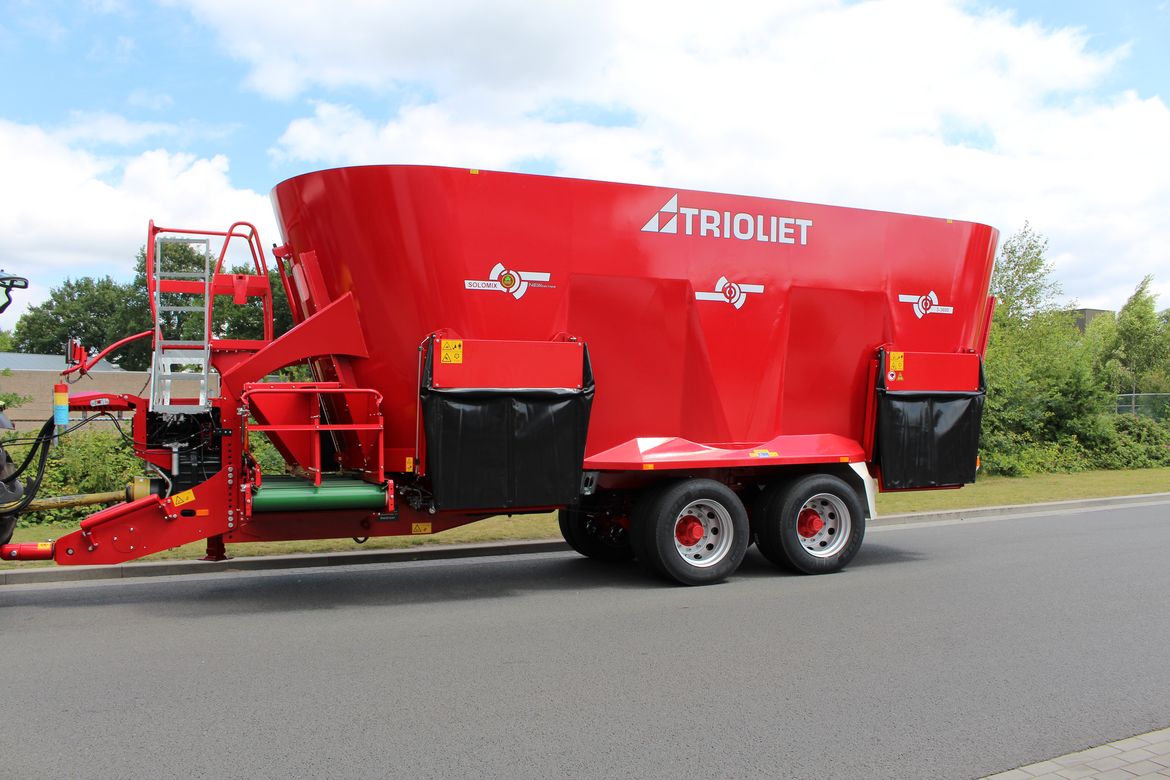

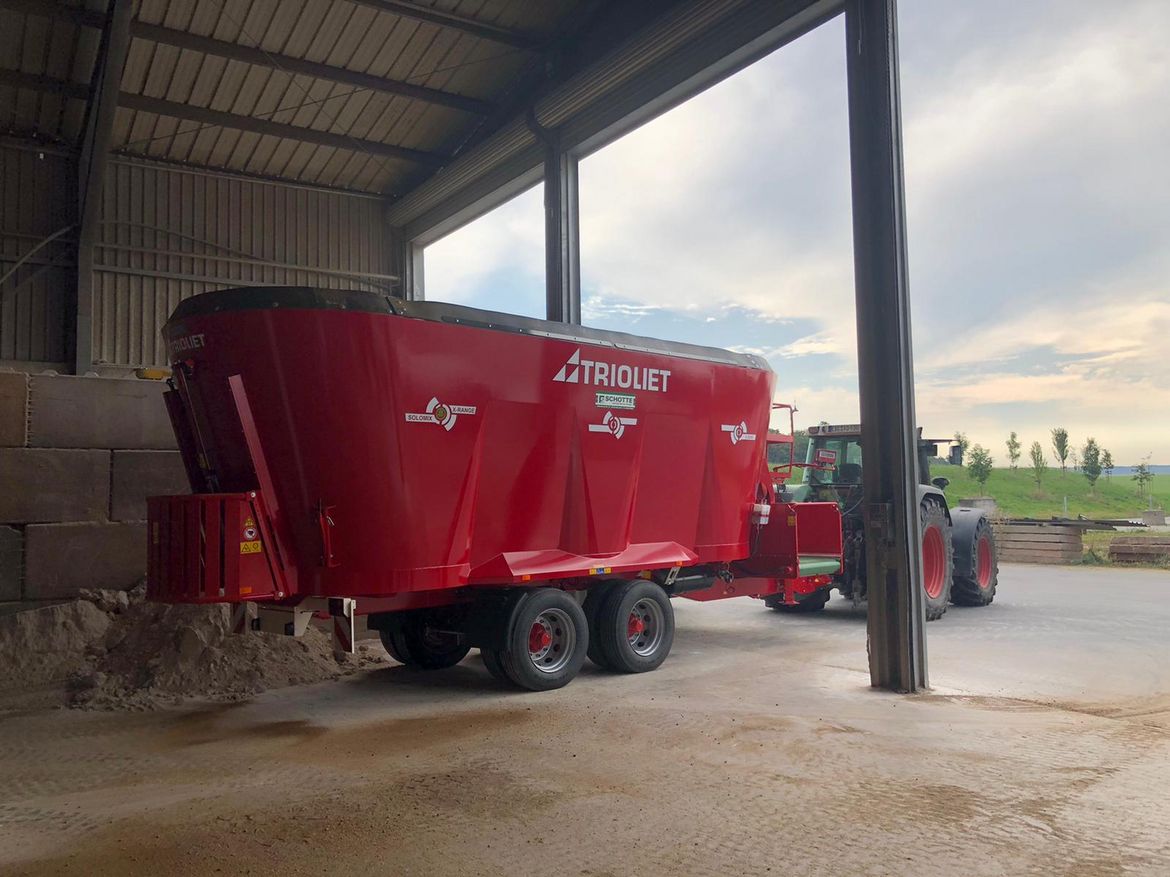

Solomix 3 VLX Feed mixer

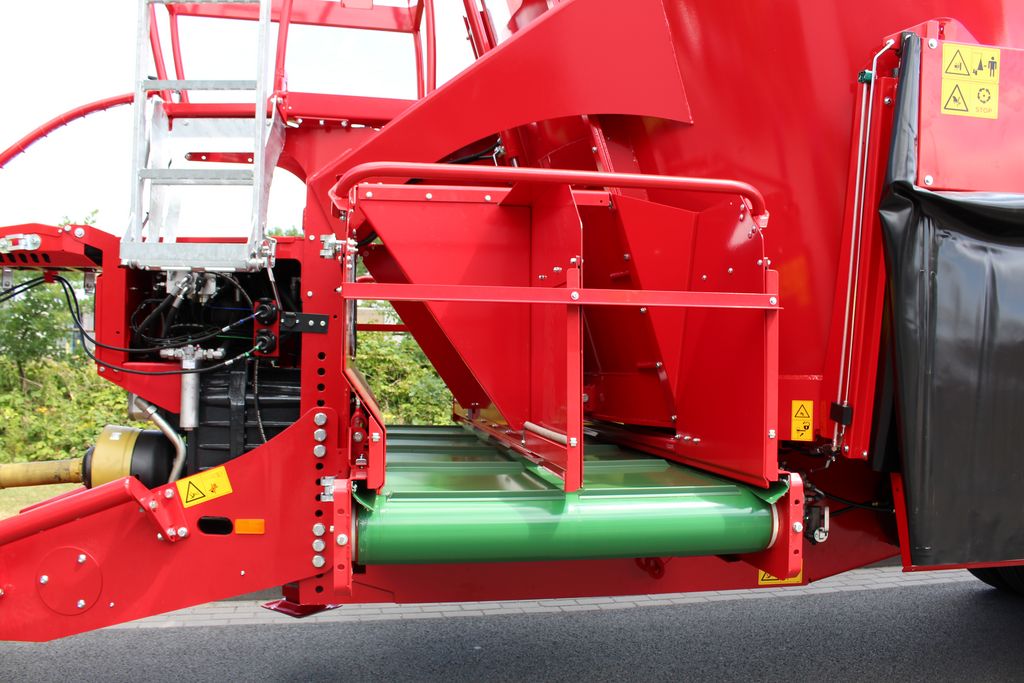

    The Solomix 3 VLX is a heavy-duty feed mixer with a wider cross conveyor belt or (curved) cross conveyor chain and three vertical augers. This trailed feed mixer wagon is well-suited to dairy farms that wish to process large quantities of feed in a short space of time. The wagon is available in sizes from 1285 to 1650 cu.ft. Whether processing small or large quantities, feed is mixed quickly to produce a mix of uniform structure. Click here for an overview of the unique characteristics of our feed mixers.

    attributes

    Capacity 1285-1650 cu.ft.
    Discharge type Front discharge
    Model Trailed
    Strawblower No

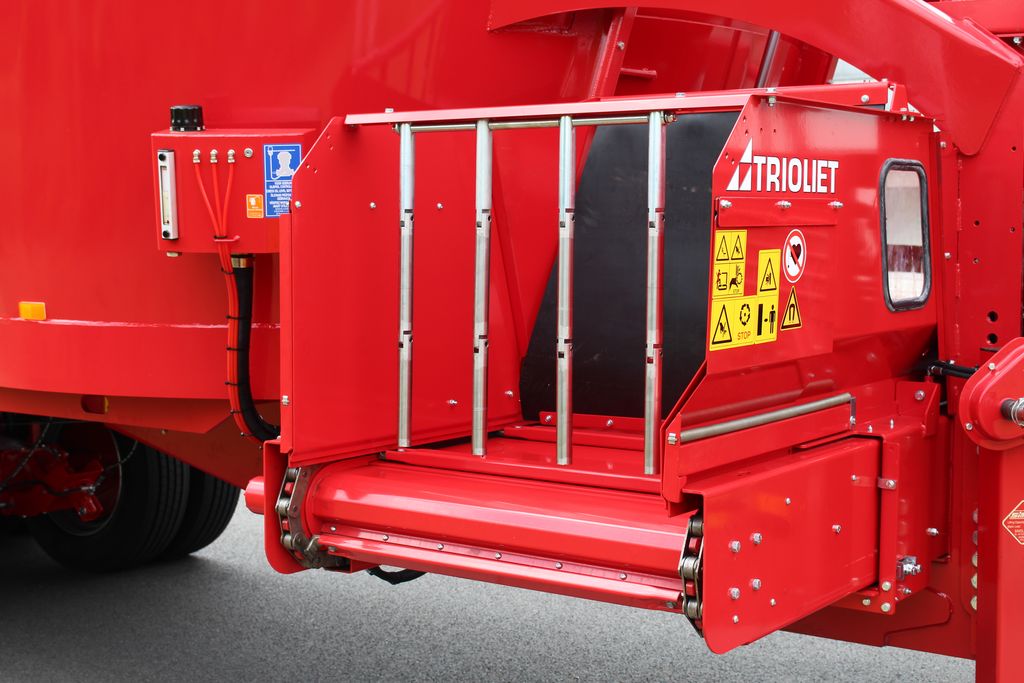

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Unique three auger drive system
      • Three Long Life Twin Stream augers (7/8" flighting / 1" wings) for quick mixing and superior discharge
      • Hand jack
      • Adjustable low drawbar with heavy hitch ring for 3600 - 4600 tandem
      • Adjustable low drawbar with K80 ball coupler and steering cylinders 4600 tridem
      • 1000 RPM wide angle constant velocity PTO shaft with shearbolt (standard 1 3/4"-20 splines)
      • Two manual operated restrictor blades (reversible)

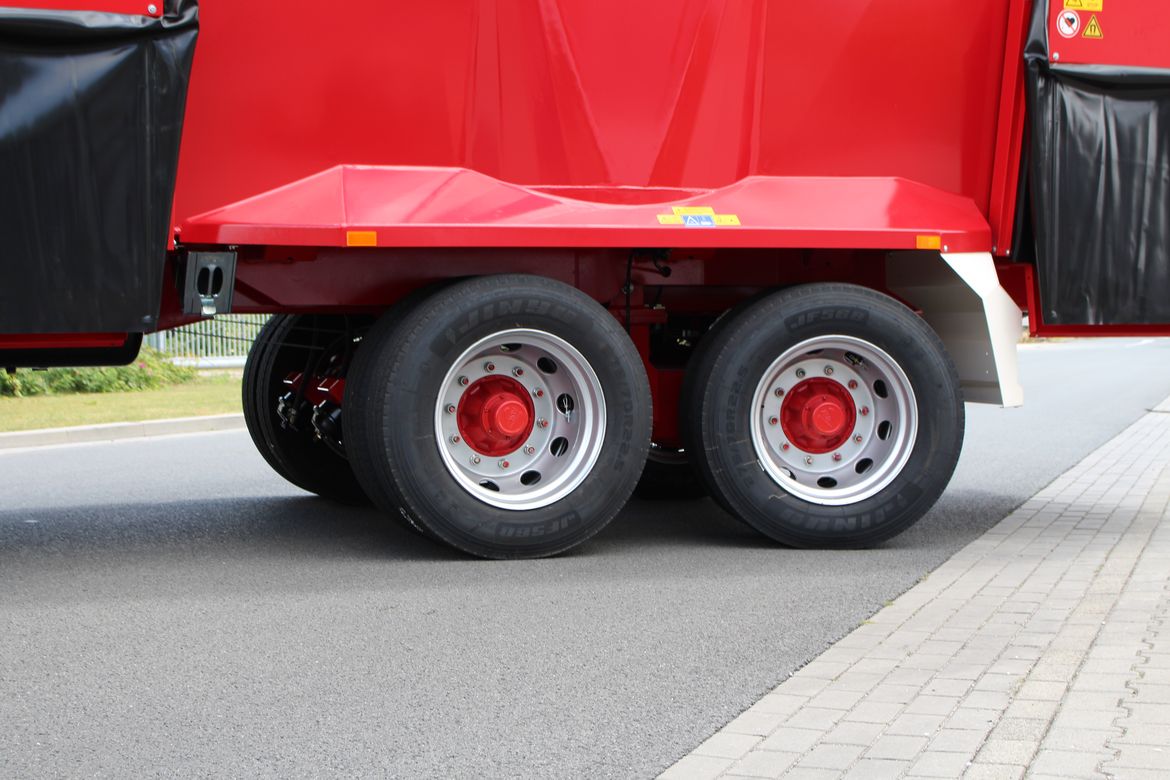

      • Walking tandem axle (3600-4600 VLX-B-T)
      • Tridem axles with forced steering (4600 VLX-B-TR)
      • 1000 RPM speed reduction gearbox standard
      • Hydraulic brake system
      • Dual Flow: Improved shape of the mixing tub and offset inserts
      • Wear ring
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility
      • Large discharge door (35") with rounded edges for better discharge
      • Two windows in discharge unit
      • Three Heavy Duty planetary drives
      • Remote control by bowden cable operation
      • Trioform auger knives short

      Technical specifications

      Solomix 3 VLX 3600 4000L 4600 4600 TR
      Capacity cu.ft. 1285 1415 1650 1650
      Overall length  398" 423" 426" 426"
      Width outside tires 90" 90" 96" 88"
      Overall height  133" 129" 142" 139"
      PTO RPM 1000 1000 1000 1000
      Tractor power requirement HP (kW) 177 (130) 191 (140) 204 (150) 204 (150)
      Tire size 275/70
      R 22.5
      (8 x)
      275/70
      R 22.5
      (8 x)
      315/80
      R 22.5
      (8 x)
      435/50
      R 19.5
      (6 x)

      * Alternative height dimensions are available on request. Ask your dealer about the available options.
