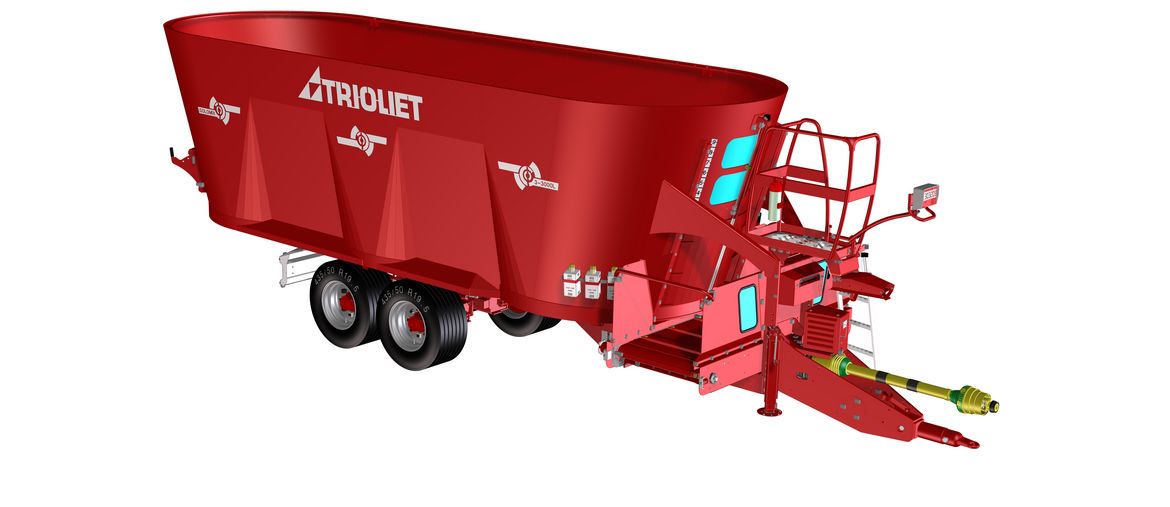

Solomix 3 VLH Feed mixer

    The Solomix 3 VLH New Edition (965, 1,075 and 1,220 cu.ft) is a TMR mixer with 3 vertical Twin Stream mixing augers and a discharge unit at the front. Different discharge types are available: with side discharge doors or front discharging by means of a cross conveyor belt or a (curved) cross conveyor chain with or without side shift. This feed mixer is extremely suitable for feeding a large quantity of cattle with a relatively small tractor. This saves a lot in fuel. Click here for an overview of the unique characteristics of our feed mixers.

    attributes

    Capacity 965-1220 cu.ft.
    Discharge type Front discharge
    Model Trailed
    Strawblower No

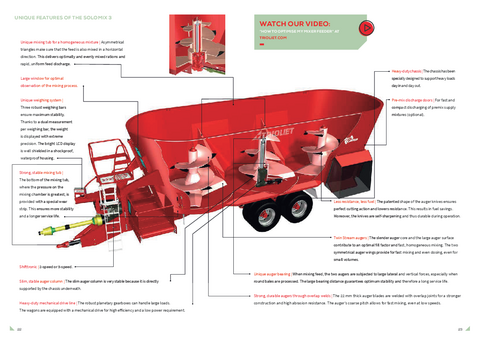

    USP's Trioliet mixers

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • S = Vold down chain conveyor
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video

      Standard features

      • Three Heayy Duty Twin stream augers (7/8" flighting / 1" wings)
      • Two reversible restrictor blades
      • Wide-angle PTO-shaft with shearbolt
      • Adjustable low drawbar with 50 mm drawbar eye (European standard)
      • Reduction gearbox standard with cooling system
      • Tandem axle with 4 single wheels
      • Trioform auger knives short
      • Control by bowden cable
      • Wide discharge unit with conveyor belt or (curved) chain conveyor for discharge at both sides (B/K/C)
      • Wide chain conveyor with in height adjustable chain extension on right hand sied (S)
      • Wear ring
      • Hydraulic brake system
      • Dual Flow: improved shape of the mixing tub and offset inserts
      • Large discharge door with rounded edges for better discharge
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility
      • Two windows in discharge unit
      • Intended to be used up till 8 loads per day
      • 540 RPM driveline ((VLH-T)
      • Walking tandem axle with 4 single wheels (VLH-T)

      Technical specifications

      Solomix 3 VLH 2700L 3000 3000L 3400
      Capacity cu.ft 965 1,075 1,075 1,220
      Length  393" 360" 396" 399"
      Width  100" 100" 100" 100"
      Height  114" 130" 122" 132"
      PTO RPM 1000 540 1000 1000
      Tractor power requirement HP (kW) 140 (103) 130 (95) 150 (110) 160 (117)
      Tyre size (4 x) 435/50
      R 19.5
      435/50
      R 19.5
      435/50
      R 19.5
      435/50
      R 19.5


      * Alternative height dimensions are available on request. Ask your dealer about the available options.
