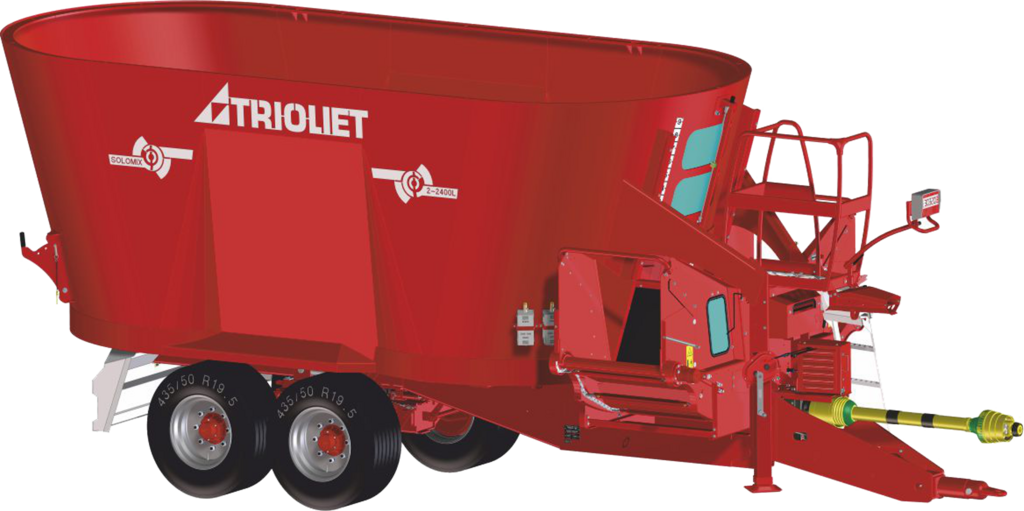

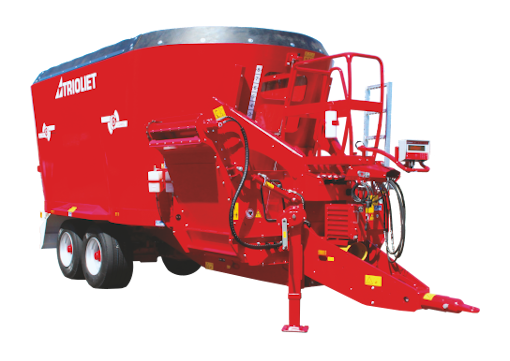

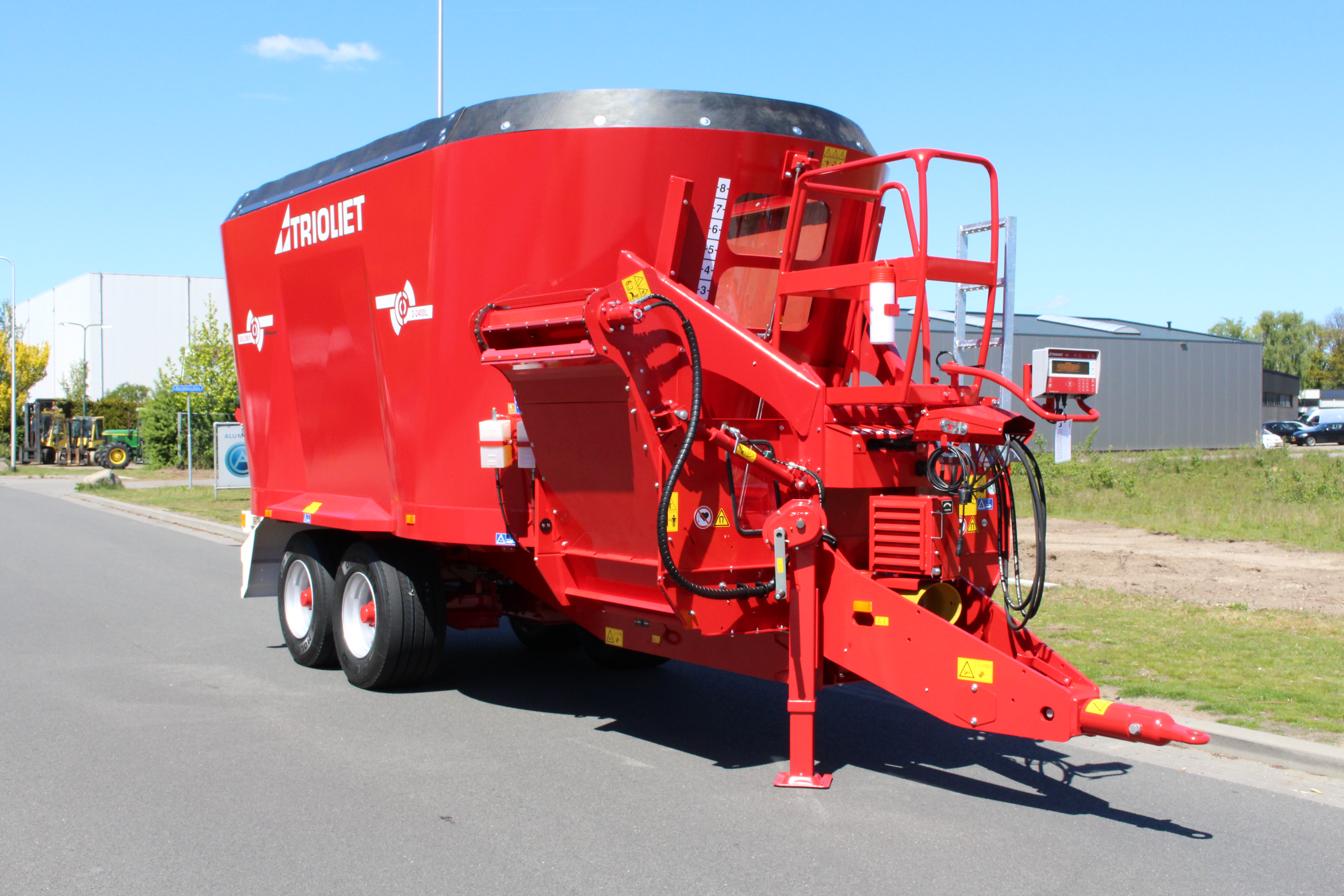

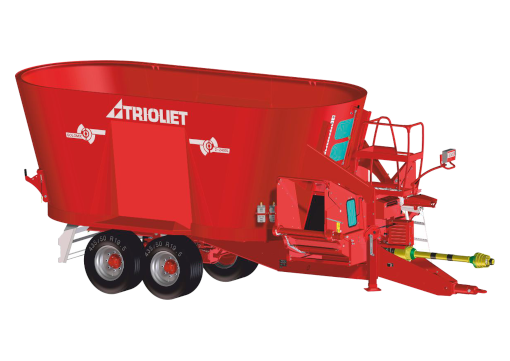

Solomix 2 VLX Feed mixer

    The Solomix 2 VLX is a heavy-duty feed mixer with two vertical augers. The feed mixer is available in four different discharge options, such as a wider cross conveyor belt or a (curved or height adjustable) cross conveyor chain. This trailed feed mixer wagon is extremely well-suited to dairy farms that wish to process large quantities of feed in a short space of time. The wagon is available in sizes from 860-1285 cu.ft. Whether processing small or large quantities, feed is mixed quickly to produce a mix of uniform structure. Click here for an overview of the unique characteristics of our feed mixers or read about the importance of the correct loading sequence here

    Product attributes

    Capacity 860-1285 cu.ft.
    Discharge type Front discharge
    Model Trailed
    Strawblower No

    Choice of discharging units

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

      • Unique two auger drive system
      • Two Long Life Twin Stream augers (7/8" flighting / 1" wings) for quick mixing and superior discharge
      • Dual Flow: improved shape of the mixing tub and offset inserts
      • Hand jack
      • Reversible and adjustable drawbar with cat. III hitch ring (2400L)
      • Adjustable low drawbar with cat. III hitch ring (2800-3600)
      • 1000 RPM wide angle constant velocity PTO shaft with shearbolt (standard 1 3/4"- 20 splines)
      • Two manual operated restrictor blades (reversible)
      • Walking tandem axle with four wide wheels (2400L-3200) or eight dual wheels (3600)
      • 1000 RPM reduction gearbox with cooling system
      • Hydraulic brake system
      • Optional side-shift RHS and LHS and other belt conveyor lengths
      • Large discharge door (35") with round edges for better discharge
      • Trioform auger knives short
      • Two Heavy Duty planetary drives
      • Remote control by bowden cable operation
      • New stairs with platform and windows, in height adjustable arm for weighing indicator and guidance of hydraulic hoses with storage possibility
      • Two windows in discharge unit
      • Wear ring

      Technical specifications

      Solomix 2 VLX 2400L 2800 3200 3600*
      Capacity cu.ft. 860 1000 1150 1285
      Overall length  327" 330" 346" 349"
      Width outside tires  86" 86" 86" 90"
      Overall height  120" 135" 135" 139"
      PTO RPM 1000 1000 1000 1000
      Tractor power requirement HP (kW) 120 (88) 130 (95) 150 (110) 177 (130)
      Tire size  435/50
      R 19.5
      4 x
      385/65
      R 22.5
      4 x
      385/65
      R 22.5
      4 x
      275/70
      R 22.5
      8 x


      * Model 3600 is not available in all countries, please ask your dealer.
      Alternative height dimensions are available on request. Ask your dealer about the available options.
