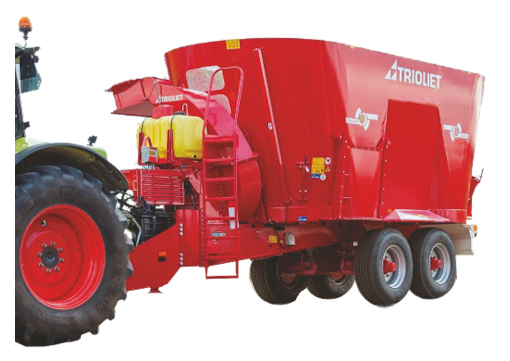

Solomix P2 Feed mixer with strawblower

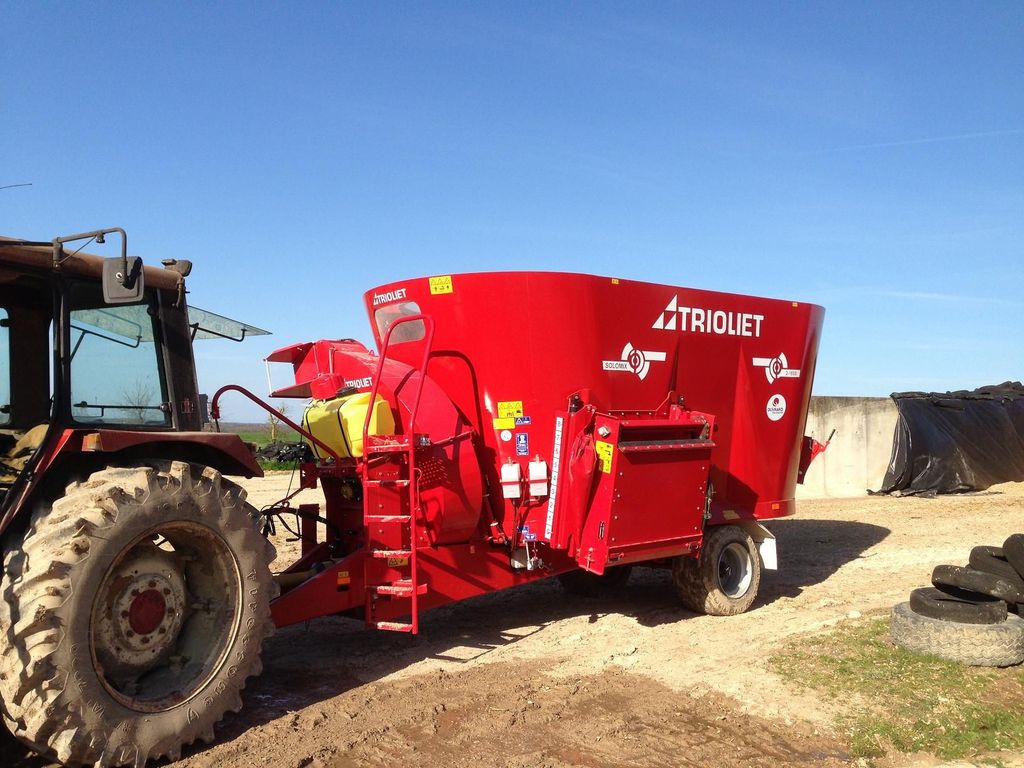

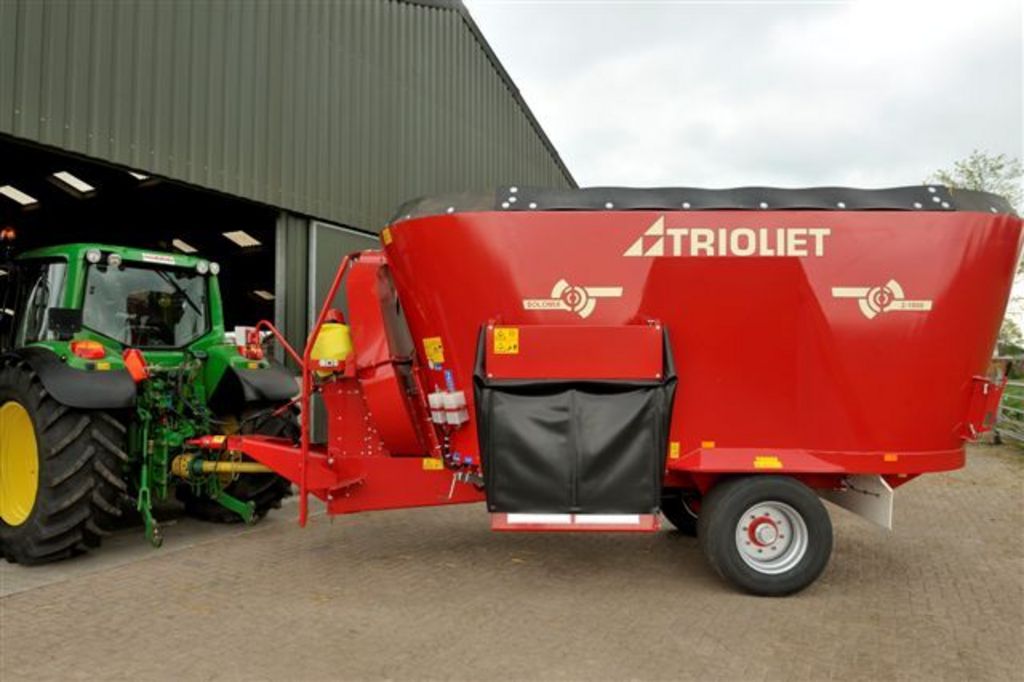

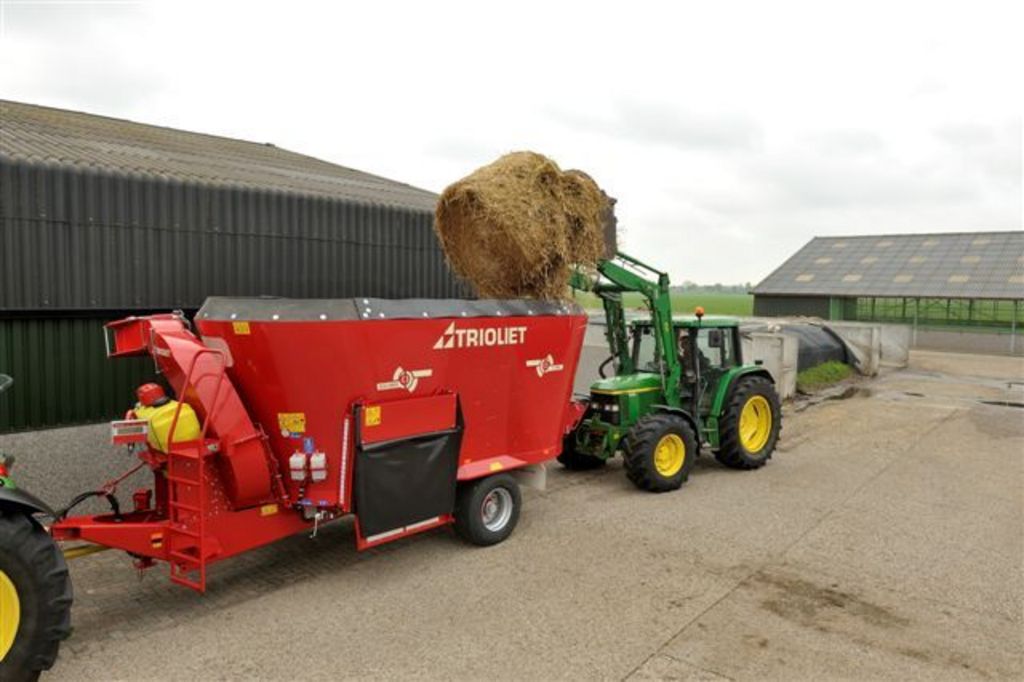

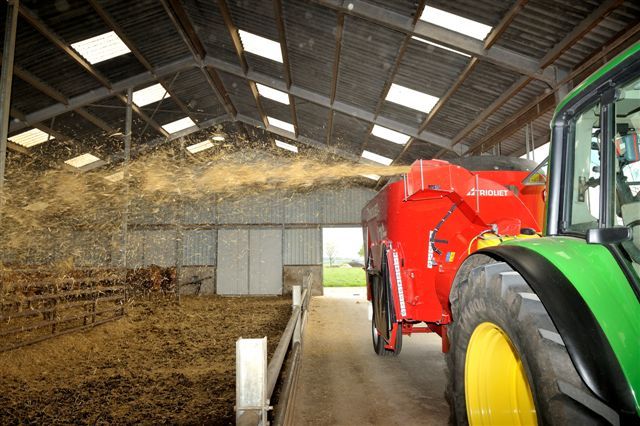

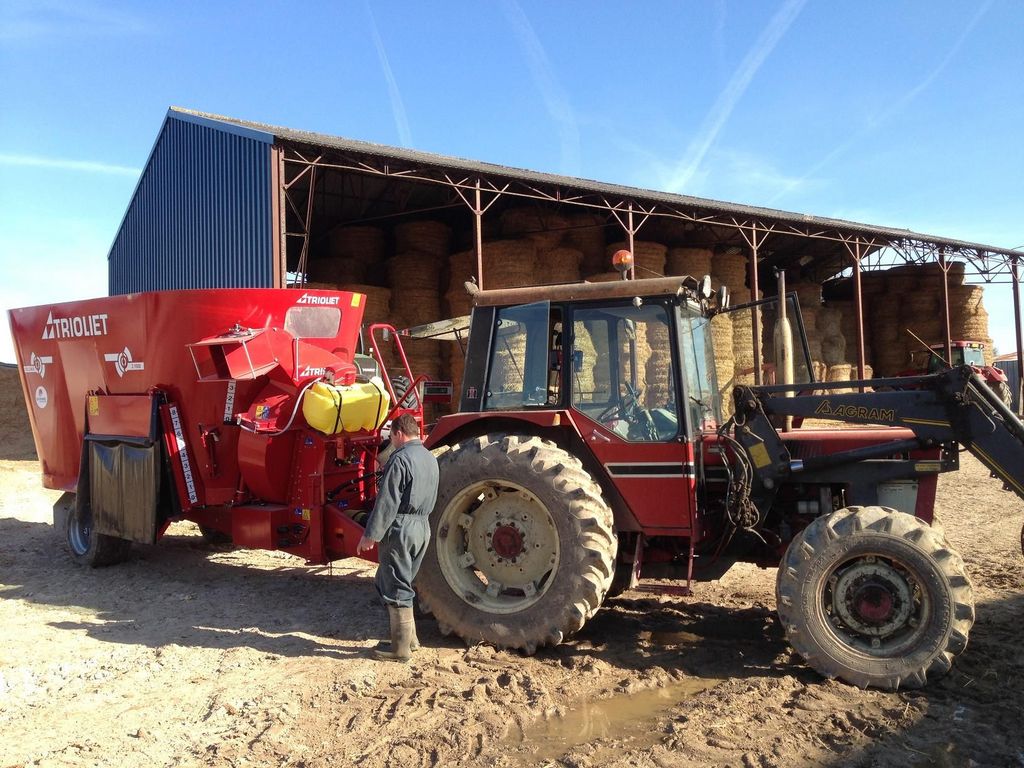

The Solomix P2 is a (two auger) TMR mixer with straw blower unit. This feed mixer allows you not only to feed your cattle a balanced ration, but also to spread their stall with straw, to provide them with the comfort they require. Its compact dimensions make the Solomix P easy to manoeuvre and use in stalls with narrow feeding alleys and a low height clearance. This advantage becomes even more apparent when a smaller tractor is used. The Solomix P2 can furthermore be equipped with an optional dust control system. By wetting the straw, this system ensures that fewer dust particles and microorganisms are floating around, which is not only more comfortable, but also more hygienic. The Solomix P2 has 2 mixing augers. Click here to learn about all the unique Solomix features. .
Standard features
- Mechanically driven (by V-belts) straw bedder at front
- 50'-60'spreading width

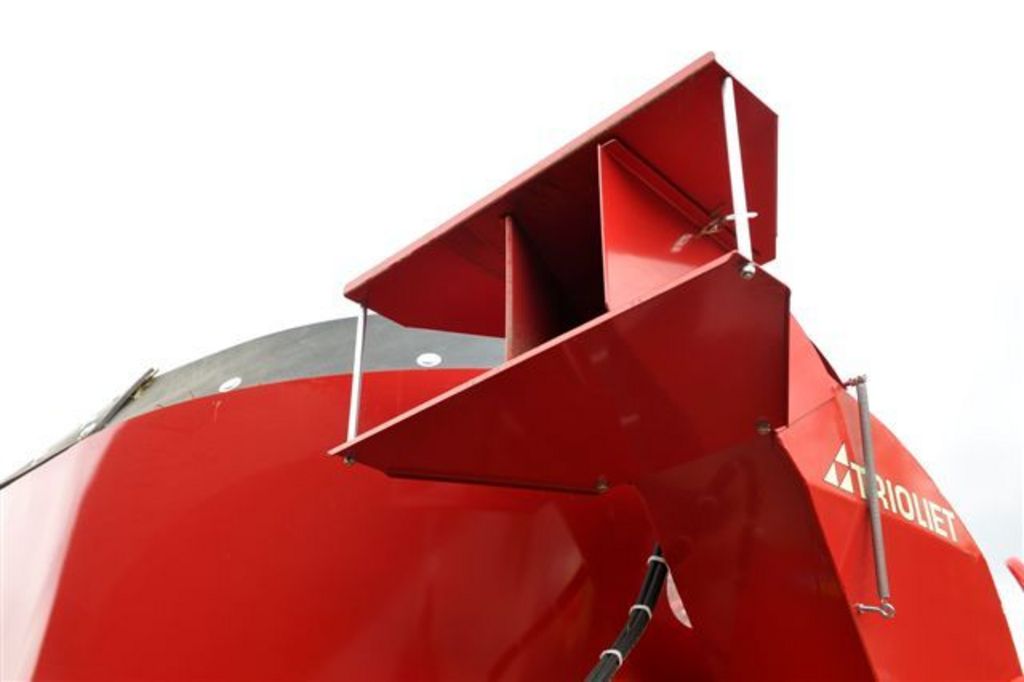

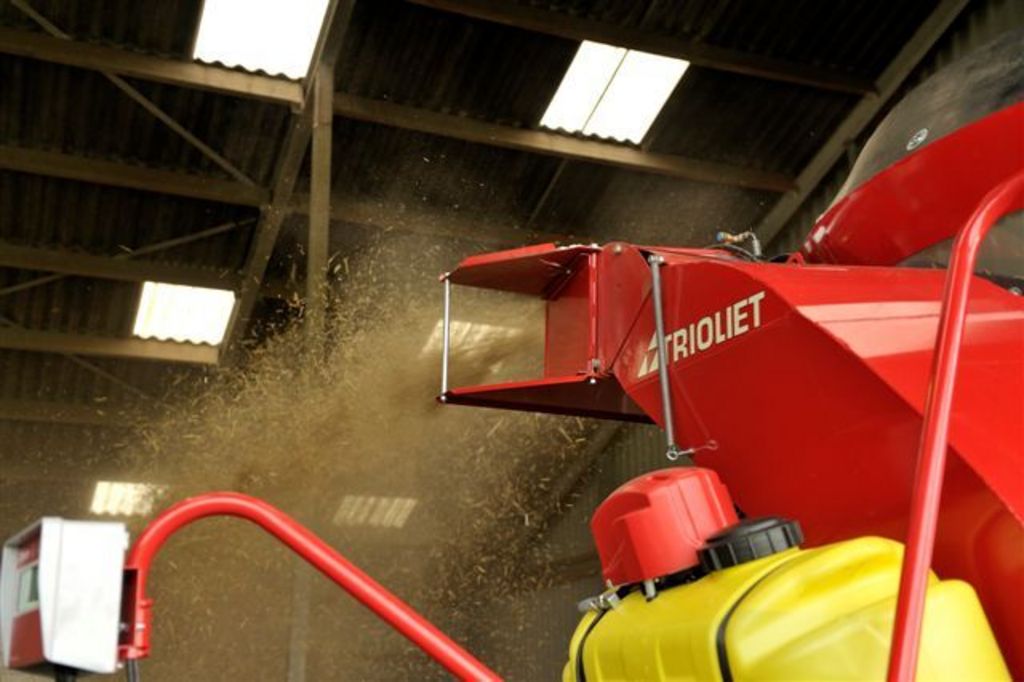

- Low blower pipe with hydraulic operation to guide the straw flow
- Unique two auger drive system
- Two Twin Stream augers (5/8" flighting / 3/4" wings) for quick mixing and superior discharge
- Adjustable and reversible drawbar with clevis

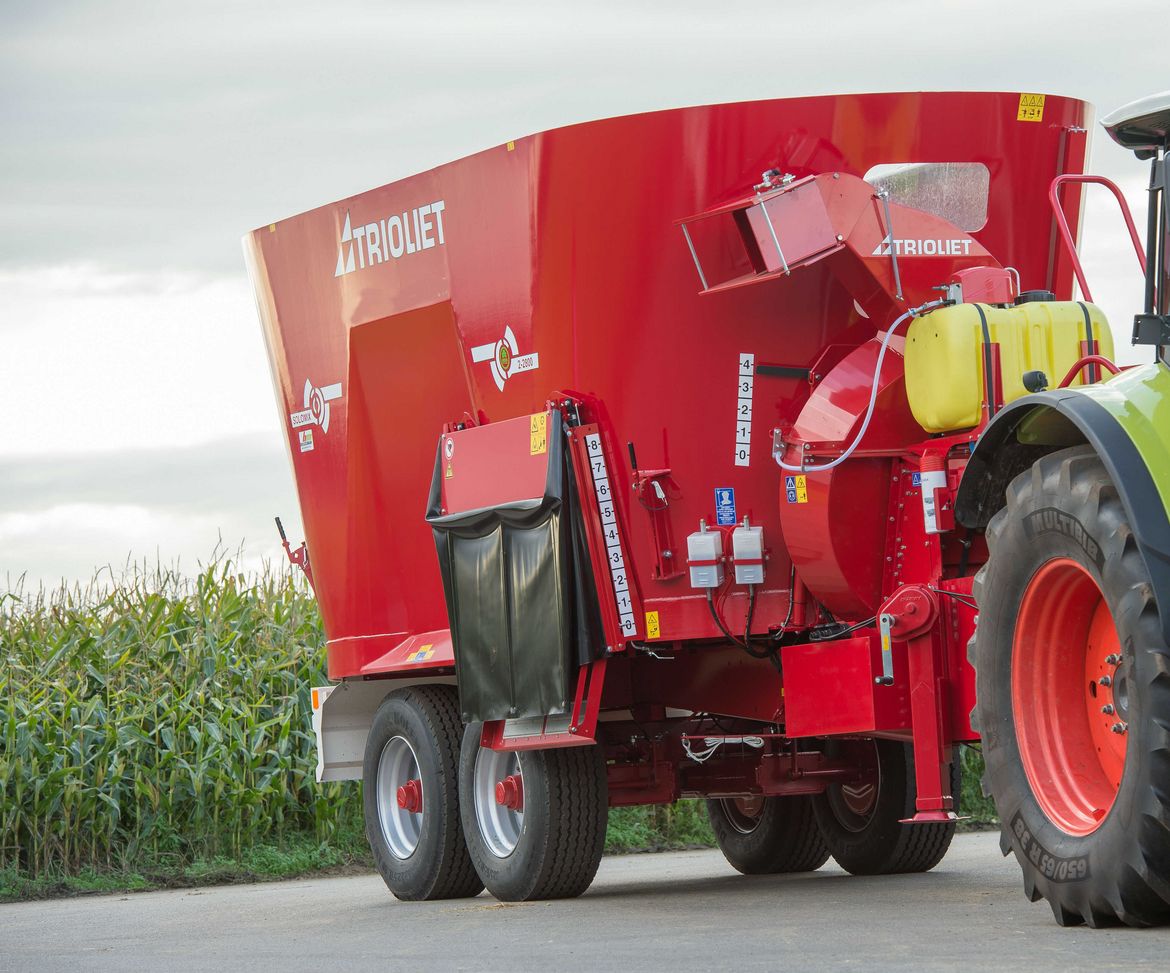

- Two wide wheels (1200-2000) or four wheels on a walking tandem axle (2400)
- Two large discharge doors with rounded edges for even and rapid discharge
- Manual adjustable discharge chute, flexible and spacious side door covers on both sides
- Two manual operated restrictor blades
- Right, left or dual discharge
- Constant velocity PTO shaft
- Two Heavy Duty planetary drives
- Trioform auger knives short
- Hydraulic brake system
- Hand jack
- Electric operation
Technical specifications
| Type | 1200 ZK | 1600 ZK | 1800 ZK | 2000 ZK | 2400 ZK-T | 2400L ZKX | 2800 ZKX | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Solomix P2 | Two side discharge doors + straw bedder | |||||||||
| Capacity cu.ft. | 430 | 570 | 650 | 715 | 860 | 860 | 1000 | |||
| Overall length | 248" | 262" | 282" | 284" | 287" | 313" | 316" | |||
| Width outside tires | 67" | 75" | 84" | 84" | 87" | 86" | 85" | |||
| Overall height | 99"*** | 109" | 111*** | 119" | 129" | 120" | 135" | |||
| PTO Drive | 540 | 540 | 540 | 540 | 540 | 1000 | 1000 | |||
| Tractor power requirement HP (kW) | 82 (60) | 85 (62) | 102 (75) | 102 (75) | 109 (80) | 120 (88) | 130 (95) | |||
| Tire size | 400/45 L17.5 2 x | 235/75 R17.5 2 x | 435/50 R 19.5 2 x. | 435/50 R 19.5 2 x | 435/50 R 19.5 2 x | 435/50 R 19.5 4 x | 385/65 R 22.5 4 x | |||
* Alternative height dimensions are available on request. Ask your dealer about the available options.
** Note: Side door will rise 11" (1200 ZK) respectively 3" (1800 ZK) above the tub
***Note: Strawblower rises above the tub
