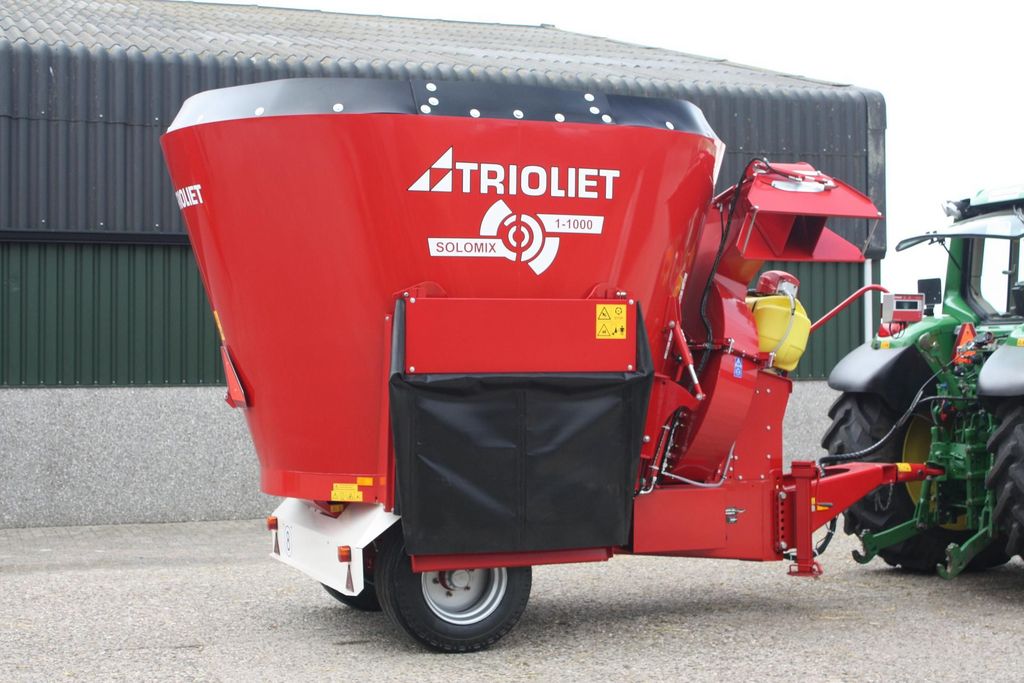

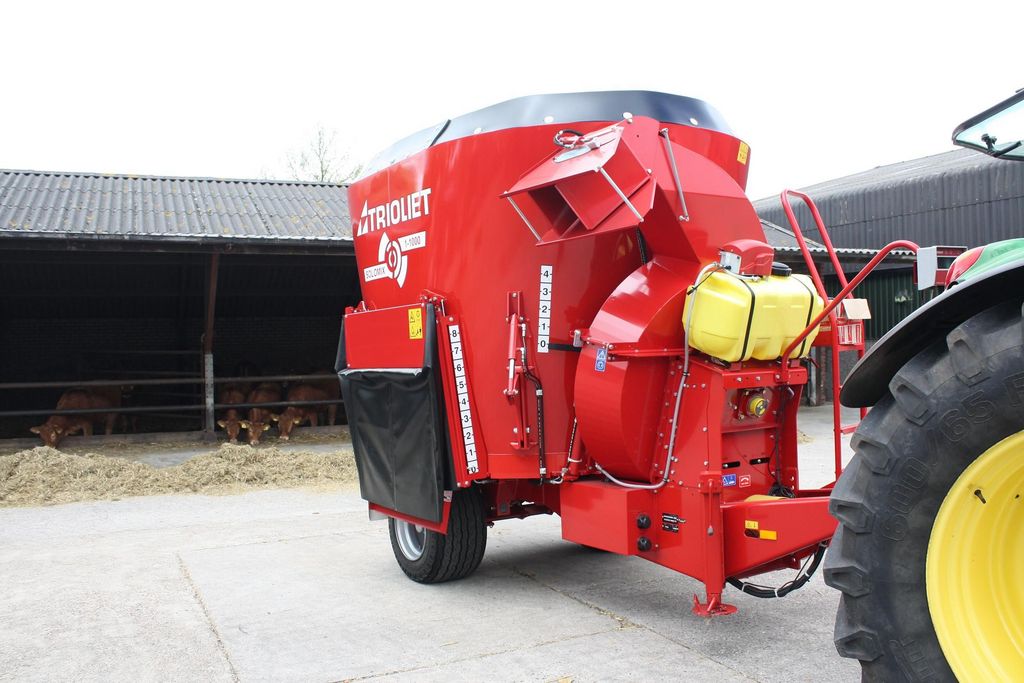

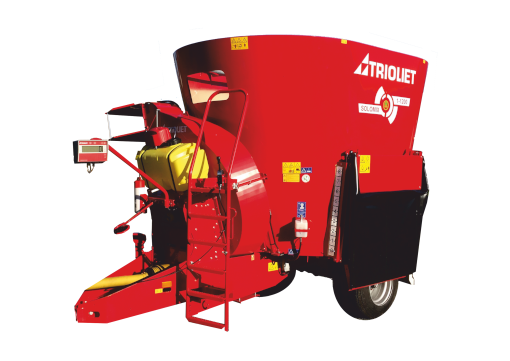

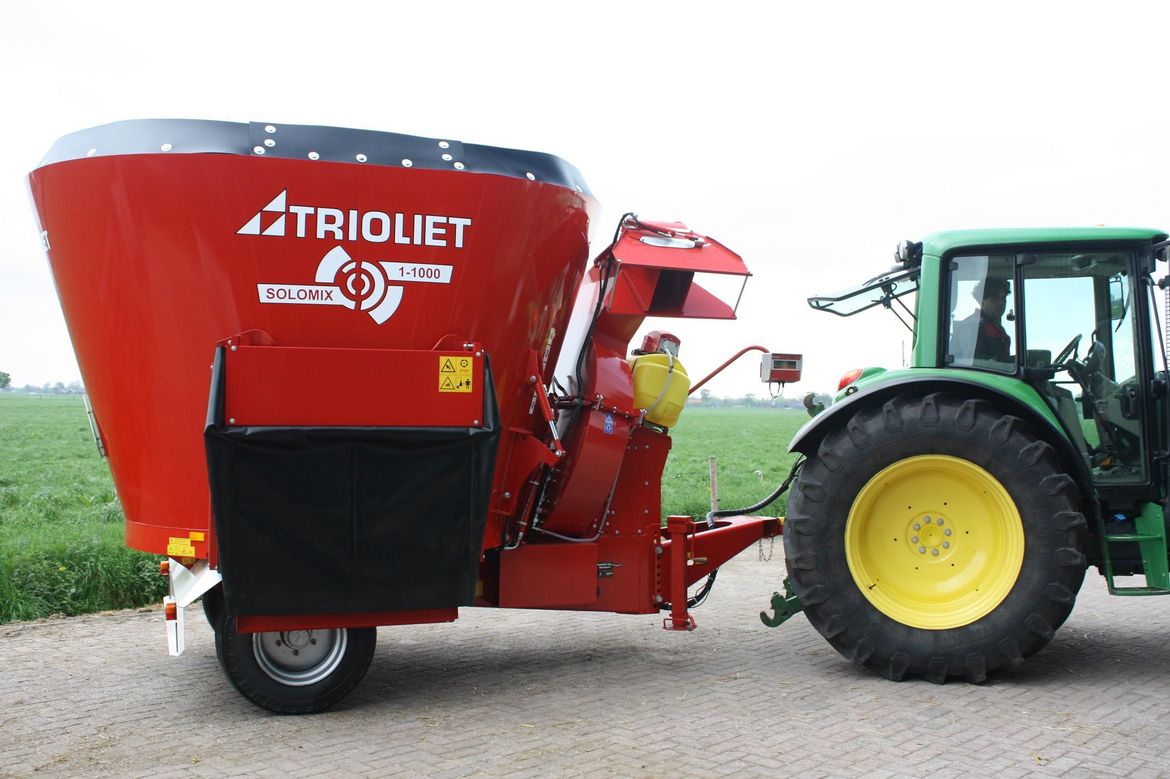

Solomix P1 TMR mixer with strawblower

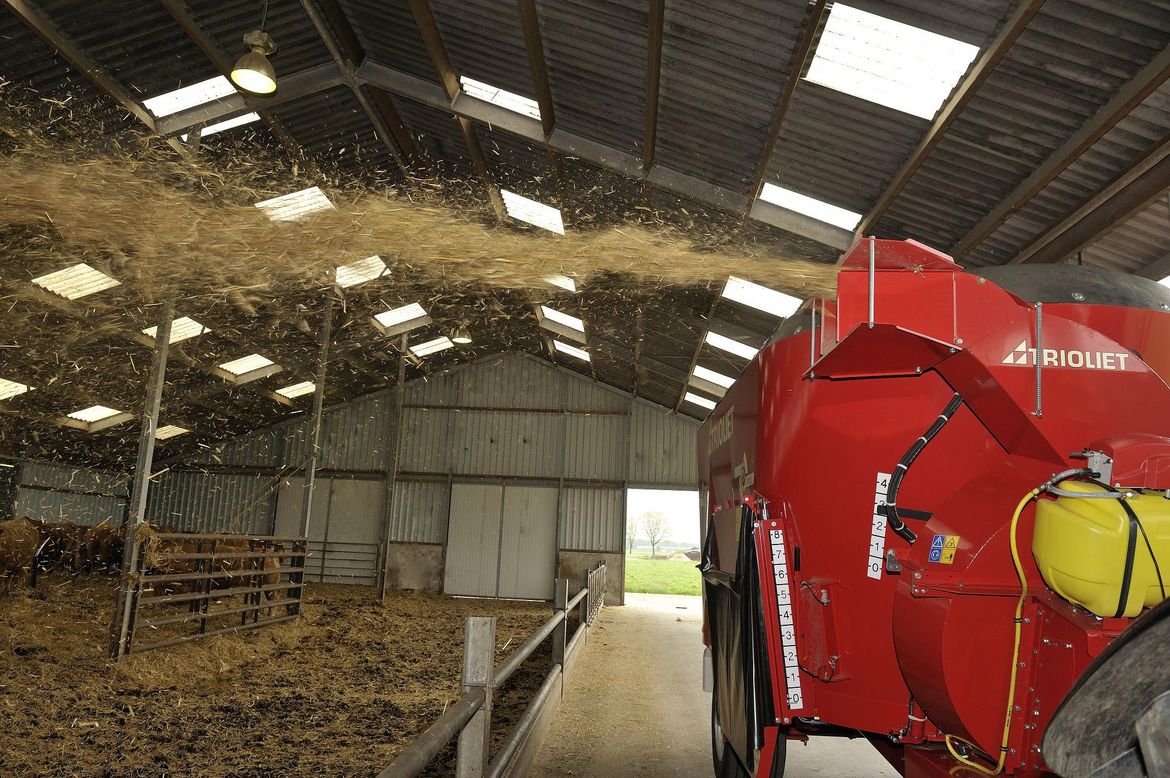

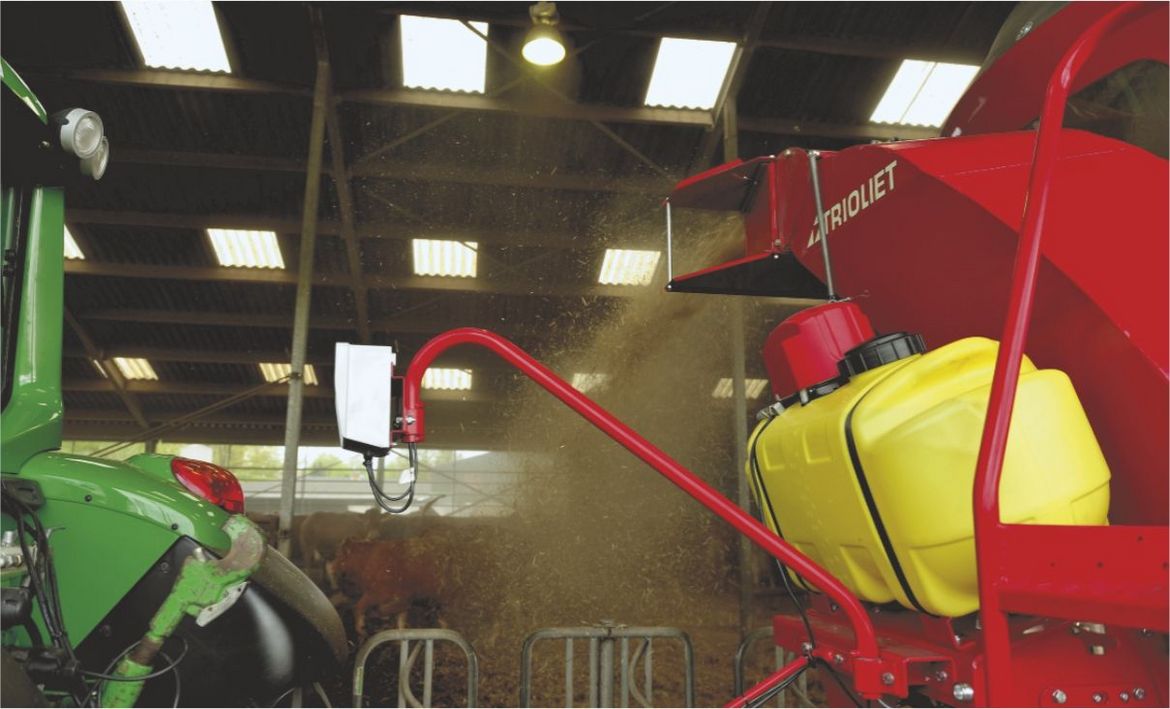

    The renewed Solomix P is a two-in-one machine. Equipped with a straw blower, this mixer feeder not only enables you to feed your cattle a balanced ration, but also to spread their stall with straw, to provide them with the comfort they require. Its compact dimensions make the Solomix P1 easy to manoeuvre and use in stalls with narrow feeding alleys and a low height clearance.This advantage becomes even more apparent when a smaller tractor is used.The Solomix P can furthermore be equipped with an optional dust control system which is not only more comfortable, but also more hygienic. Click here to learn about all the unique Solomix features.

    Attributes

    Capacity 350-500 cu.ft
    Discharge type Side discharge door
    Model Trailed
    Strawblower Yes

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video

      Standard features

      • Mechanically driven (by V-belts) straw bedder at front
      • 50'-60' spreading width
      • Low blower pipe with hydraulic operation to guide the straw flow
      • Unique one auger drive system
      • Constant velocity PTO shaft
      • Manual adjustable discharge chutes
      • One Long Life Twin Stream auger (7/8" flighting / 1" wings) for quick mixing and superior discharge
      • Adjustable and reversible drawbar wih clevis
      • Two manual restrictor blades
      • Two wide wheels with hydraulic brake system
      • Two large discharge doors with rounded edges for even and rapid discharge
      • Flexible and spacious side door covers on both sides
      • Heavy Duty planetary drive
      • Wear ring
      • Electric operation
      • Hand jack

      Technical specifications

      Type 1000 ZK 1200 ZK 1400 ZK
      Solomix P1 Two side discharge doors & strawblower
      Capacity cu.ft. 360 430 500
      Overall length  197" 199" 209"
      Width outside tires 75" 75" 83"
      Overall height  109" 117" 119"
      PTO Drive 540 540 540
      Tractor power requirement HP (kW) 71 (52) 75 (55) 82 (60)
      Tire size (2x) 400/45 L17.5 400/45 L17.5 400/45 L17.5


      * Alternative height dimensions are available on request. Ask your dealer about the available options.
