Solomix P3 TMR mixer with strawblower

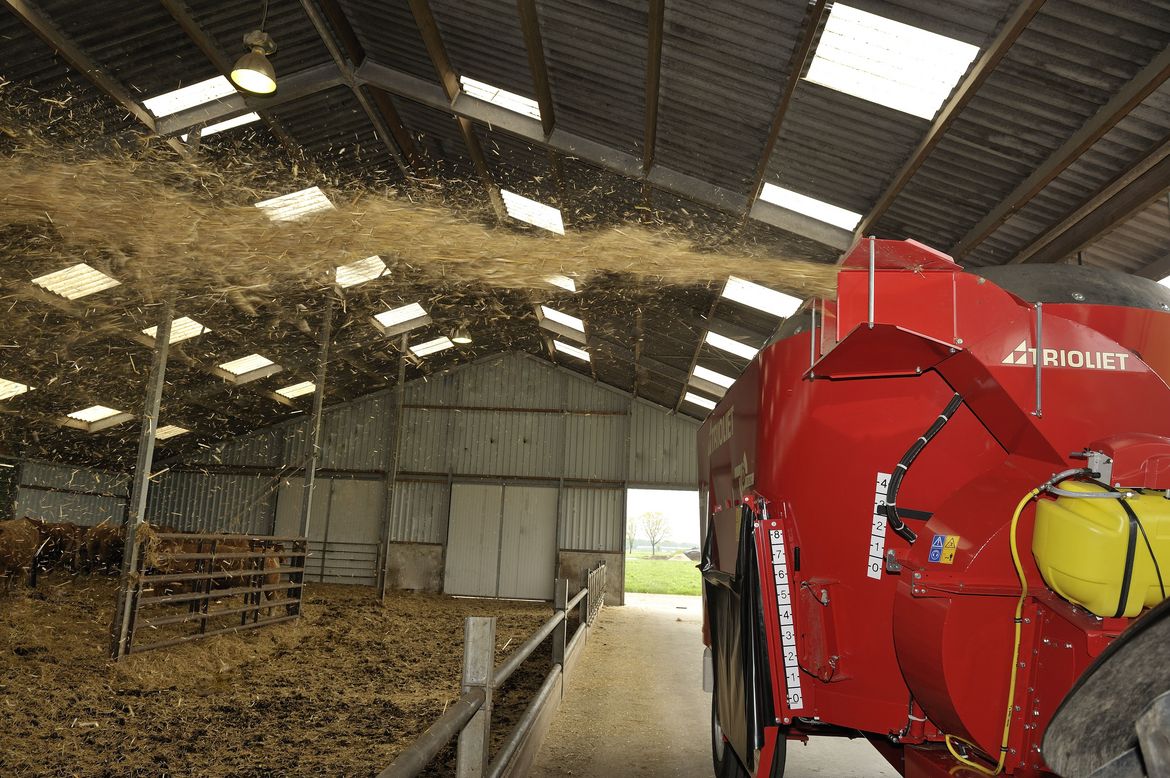

    The Solomix P3 is a (three auger) diet feeder with straw blower unit. This feed mixer allows you not only to feed your cattle a balanced ration, but also to spread their stall with straw, to provide them with the comfort they require. Its compact dimensions make the Solomix P easy to manoeuvre and use in stalls with narrow feeding alleys and a low height clearance. This advantage becomes even more apparent when a smaller tractor is used. The Solomix P3 can furthermore be equipped with an optional dust control system. By wetting the straw, this system ensures that fewer dust particles and microorganisms are floating around, which is not only more comfortable, but also more hygienic. The Solomix P3 has 3 mixing augers. Click here to learn about all the unique Solomix features.

    attributes

    Capacity 1285 cu.ft.
    Discharge type Front discharge
    Model Trailed
    Strawblower Yes

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • ZK = Side discharge doors
      • X = Heavy Duty

      Share

      Photos

      Video

      Standard features

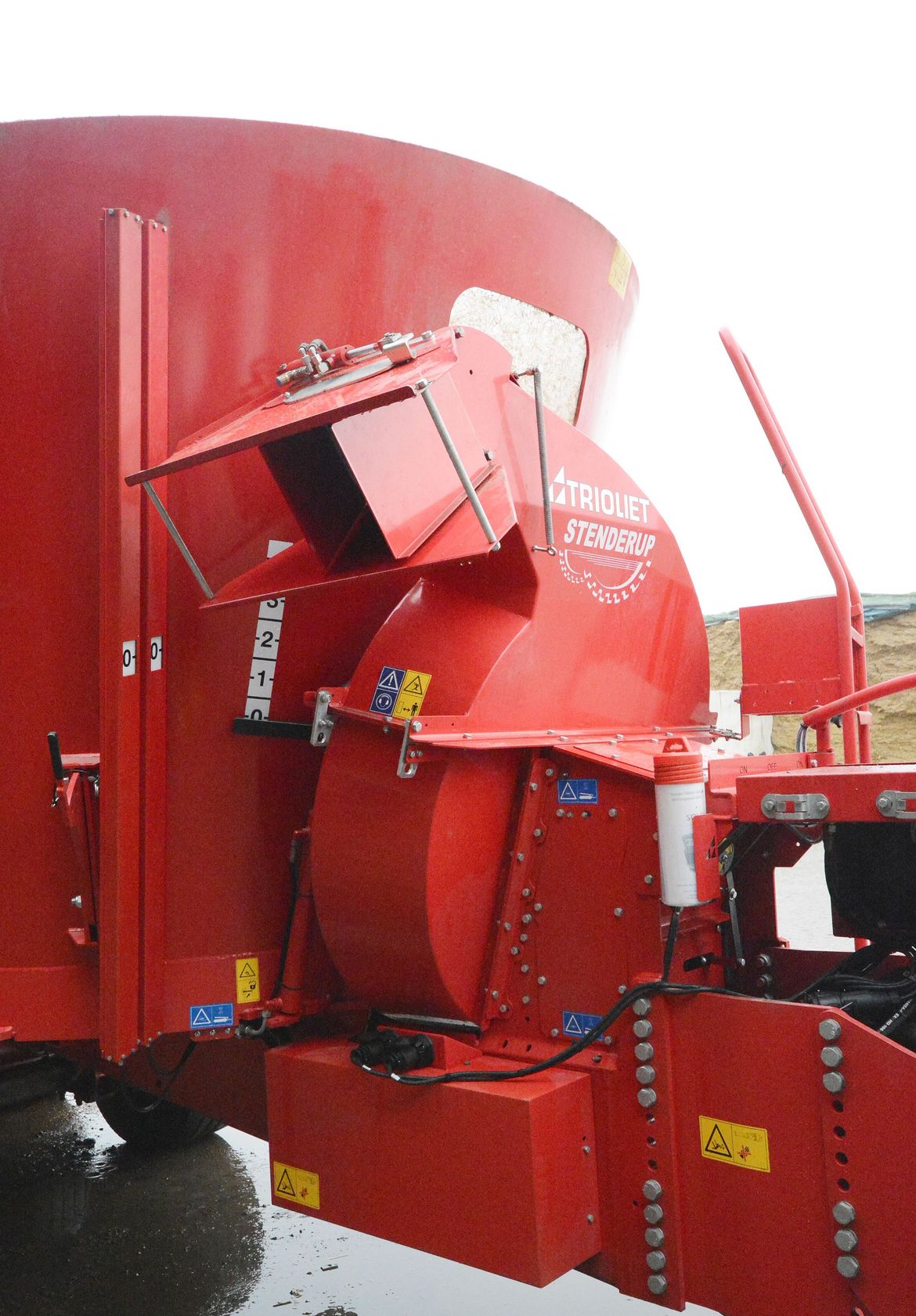

      • Mechanically driven (by V-belts) straw bedder at front
      • Low blower pipe with hydraulic operation to guide the straw flow
      • Three Long Life Twin Stream augers (7/8" flighting / 1"wings) for quick mixing and superior discharge
      • Unique three auger drive system with two Heavy Duty planetary drives
      • Adjustable low drawbar with cat. III hitch ring and hand jack
      • Two manual restrictor blades
      • Right, left or dual discharge
      • 50'-60' spreading width
      • Wear ring
      • Electric operation
      • Trioform auger knives short
      • Manual adjustable discharge chute and flexible and spacious side door cover

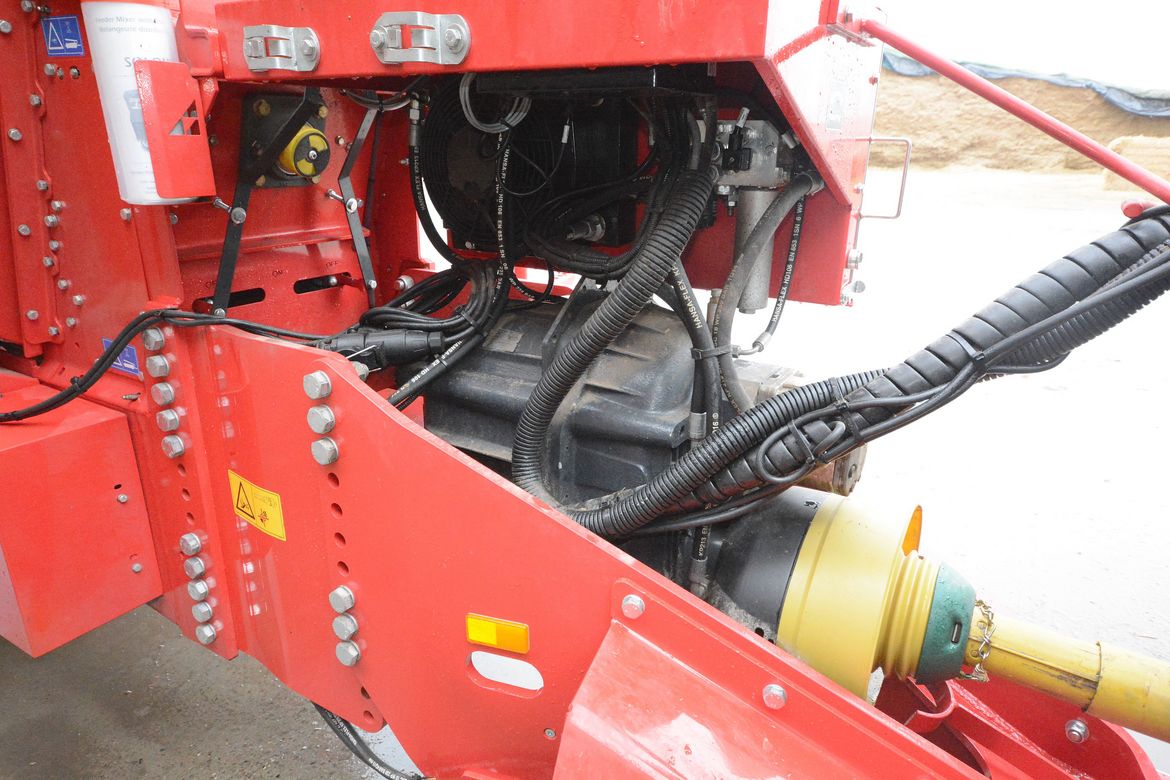

      • 1000 RPM wide angle constant velocity PTO shaft with shearbolt (standard 1 3/4"-20 splines)
      • Walking tandem axle with dual tires
      • Two large discharge doors with rounded edges for even and rapid discharge

      Technical specifications

      Solomix P3 3600 ZKX
      Capacity cu.ft. 1285
      Overall length  393"
      Width outside tires  90"
      Overall height  133"
      PTO RPM 1000
      Tractor power requirement HP (kW) 177 (130)
      Tire size (4x) 275/70
      R 22.5

      * Alternative height dimensions are available on request. Ask your dealer about the available options.
