    Solomix 3 ZKX TMR mixer

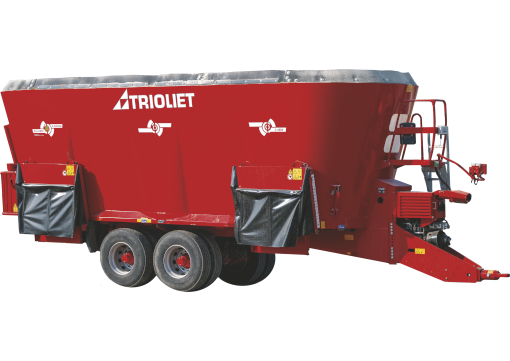

    The renewed Solomix 3 ZKX is a (heavy duty) feed mixer with three vertical mixing augers and two side discharge doors at right (front and rear). The machine is available in volumes from 1285 to 1860 cu.ft. Its characteristic features, such as a specially shaped mixing chamber, made-to-measure augers, an adjusted auger speed and exceptionally high quality, ensure reliability, healthy cattle and savings in terms of time and costs. Click here to learn about all the unique Solomix features or read more about good feed management

    attributes

    Capacity 1285-1860 cu.ft.
    Discharge type Side discharge door
    Model Trailed
    Strawblower No

      Explanation of abbreviations

      • VL = Front discharge
      • H = High discharge unit
      • L = Low discharge unit
      • B = Synthetic conveyor belt
      • K = Conveyor chain
      • C = Curved conveyor chain
      • S = Vold down chain conveyor
      • ZK = Side discharge doors
      • X = Heavy Duty

      Photos

      Video

      Standard features

      • Unique three auger drive system with three Heavy Duty planetary drives
      • Three Long Life stream augers (7/8" flighting / 1" wings) for quick mixing and superior discharge
      • Adjustable low drawbar with heavy hitch ring for 3600-4600 tandem
      • Adjustable low drawbar with K80 ball coupler and steering cylinders for 4600 and 5200 tridem
      • Dual Flow: improved shape of the mixing tub and offset inserts
      • 1000 RPM wide angle constant velocity PTO shaft with shearbolt (standard 1 3/4"-20 splines)
      • Two manual operated restrictor blades (reversible)
      • Walking tandem axle (3600-4600 ZKX-T)
      • Tridem axle with forced steering and large single wheels (4600 ZKX-TR)

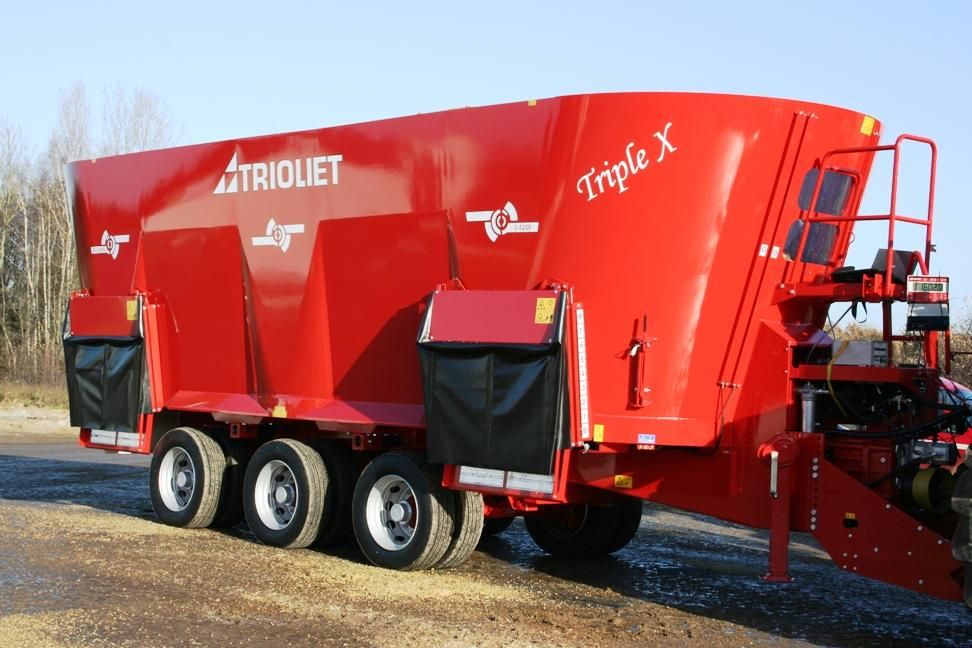

      • Tridem axle with forced steering and double wheels (5200 ZKX-TR)
      • 1000 RPM speed reduction gearbox standard for 3600 till 4600
      • Shifttronic 3-speed gearbox with weighing system standard for the 5200
      • Large discharge doors with rounded edges for even and rapid discharge
      • Hydraulic brake system
      • Trioform auger knives short
      • Operation directly by tractor hydraulics
      • Two discharge doors on right hand side (front and rear)
      • Manual adjustable discharge chute and flexible and spacious side door covers
      • New platform with stairs and windows

      Technical specifications

      Solomix 3 ZKX 3600 ZKX-T 4000L ZKX-T* 4600 ZKX-T 4600 ZKX-TR  5200 ZKX-TR
      Capacity  cu.ft. 1285 1415 1650 1650 1860
      Overall length  374" 400" 404" 404" 429"
      Width outside tires 90" 90" 96" 88" 104"
      Overall height  133" 129" 142" 139" 142"
      PTO Drive 1000 1000 1000 1000 1000
      Tractor power requirement HP (kW) 177 (130) 191 (140) 204 (150) 204 (150) 240 (176)
      Tire size 275/70
      R 22.5
      (8x)
      275/70
      R 22.5
      (8x.)
      315/80
      R 22.5
      (8x)
      435/50
      R 22.5
      (6x)
      315/80
      R 22.5
      (12x)

      * Wagons in alternative heights are available on request.
